TRANSFER CASE
26

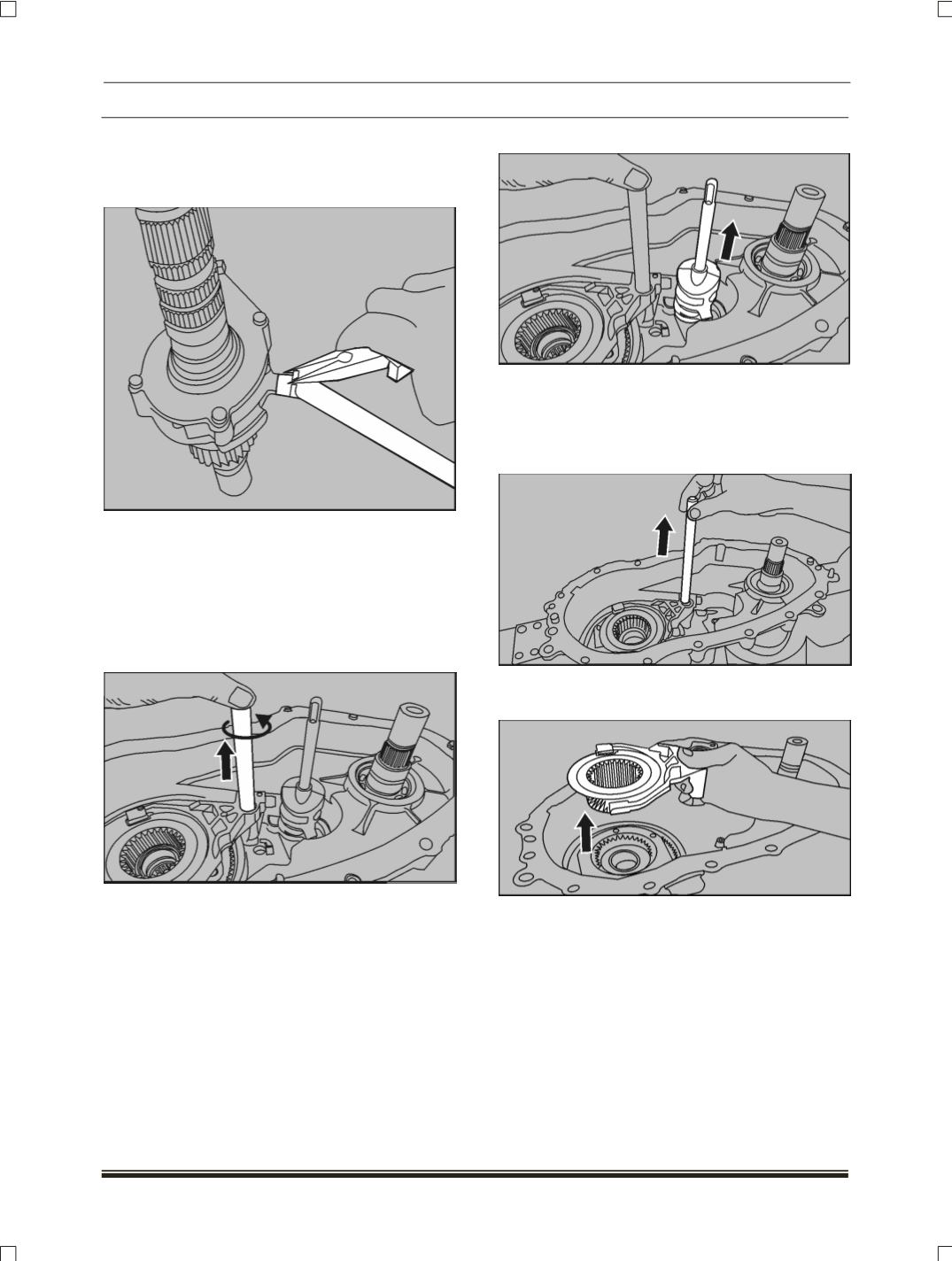

3. Loosen the hose clamp and remove the hose
coupling from the pump housing. Separate the
strainer from the hose clamp by pulling it
outwards.
4. Slide the Gerotor pump from the output shaft
and remove the output shaft.
F. REDUCTION SHIFT ASSEMBLY
1. Slightly lift the rail shaft from the case and
rotate it in anti-clockwise direction to
disengage the reduction fork assembly from
shift cam shaft.
2. Remove the shift shaft from the case.
NOTE
If required separate cam spring spacer and shift
shaft by pulling outward.
3. Remove the rail shaft from the case.
4. Remove the reduction hub and reduction fork
assembly from the case.
