TRANSFER CASE
20

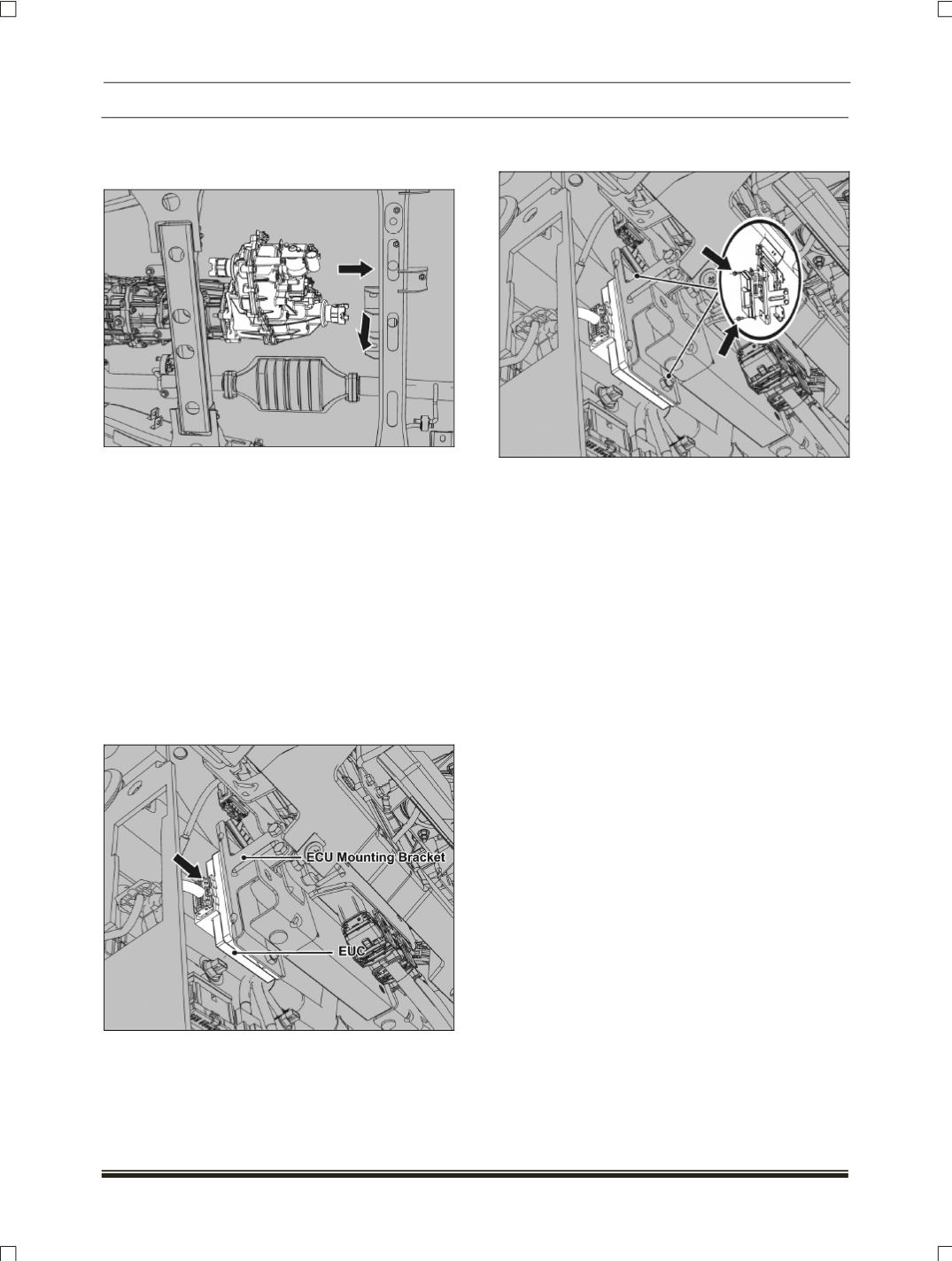

8. Support the transfer case and then separate the
same from the gearbox and then lower it
carefully.
FITMENT
For fitment follow reverse procedure of removal.
B. TRANSFER CASE ELECTRONIC CONTROL
UNIT (ECU)
REMOVAL
1. Disconnect the battery negative.
2.
Remove hush panel
.(For procedure refer hush
panel removal in Body section)
3. Remove glove box.
(For procedure refer glove
box removal in Body section)
4. Disconnect the electrical connection from the
transfer case ECU.
5. Loosen and remove two mounting bolts and
take out the ECU from the vehicle.
FITMENT
For fitment follow reverse procedure of removal.
