4.3.3.3 INSPECTION & CLEANING
INSPECTION
1. Visually check all the parts for damage.
2. Referring to normal gear tooth face,
specifically inspect the uneven wear and chips
of gear tooth. Replace if necessary.
NOTE
Always replace the hose coupling and oil seals
with new parts.
CLEANING
NOTE
Before cleaning, check the magnet for the
presence of metal particles which indicate internal
chipping of the transfer case.
1. Using a cleaning solvent, clean the old oil and
dirt deposits
2. After cleaning dry the parts with low pressure
(20 PSI maximum)
compressed air.
3. Lubricate the ball bearings and needle bearing
with specified oil. Protect lubricated bearings
from dust.
4.3.3.4 ASSEMBLY

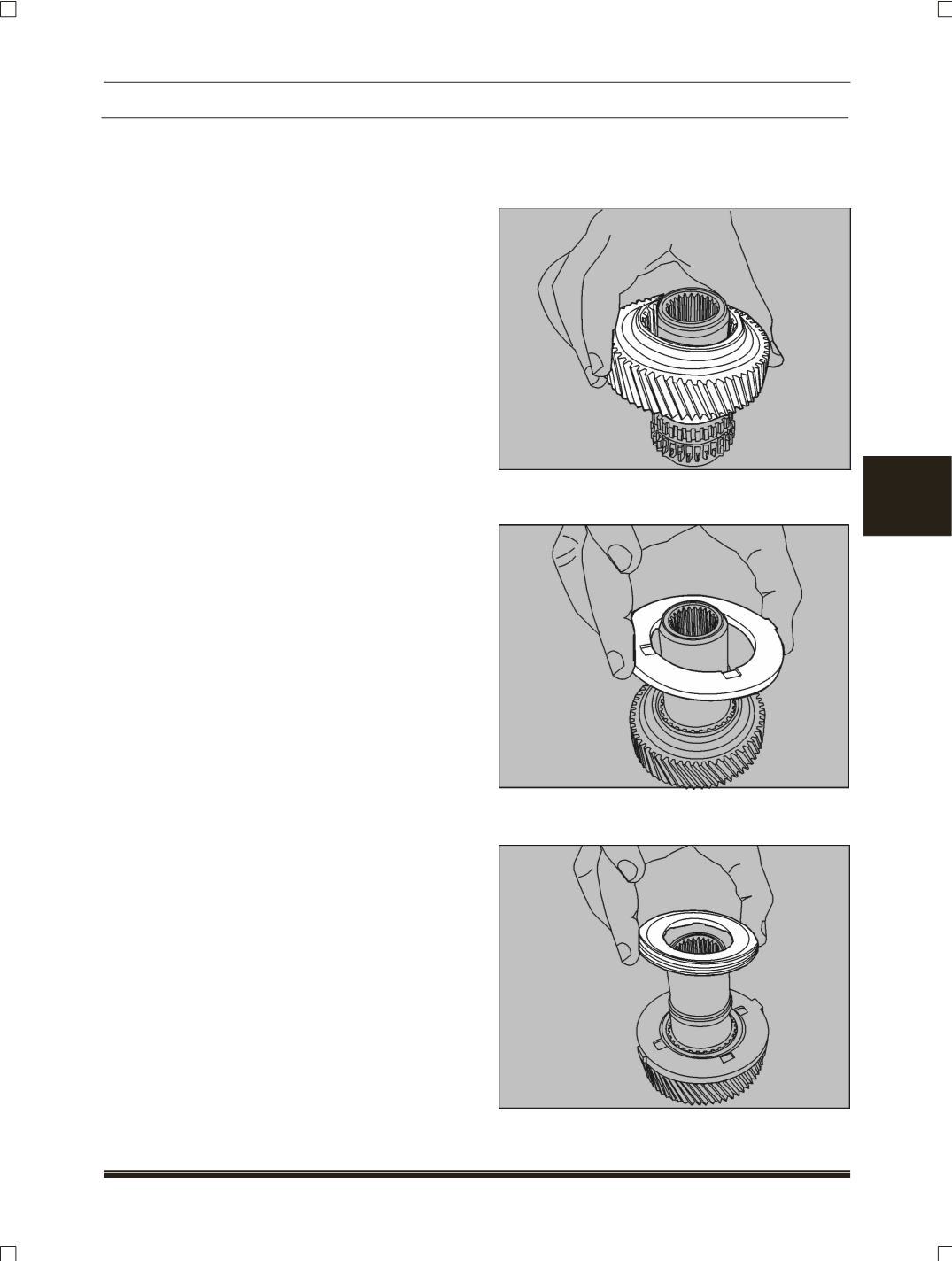

A. ADAPTER & INPUT SHAFT
1. Insert the input shaft in to the sun gear.
2. Place the thrust washer carrier plate on sun
gear.
3. Place the thrust washer on the thrust washer
carrier assembly.
