TRANSFER CASE
21
TANSFER CASE
C

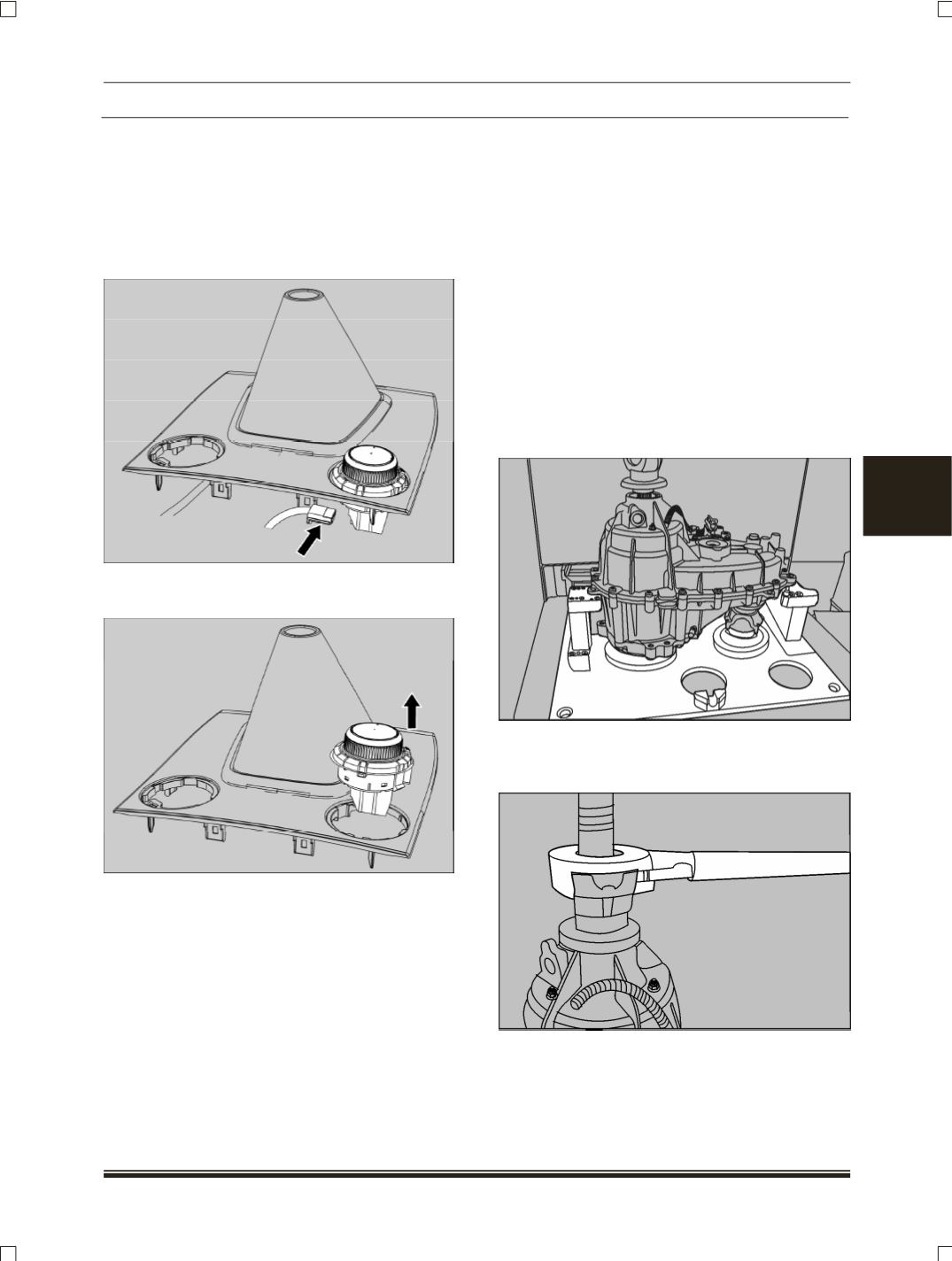

TRANSFER CASE SWITCH
REMOVAL
1.Remove Floor console gear shifter bezel
assembly (
For removal procedure refer Body
section
).
2.Disconnect the electrical connection of transfer
case switch
3. Pry out the transfer case switch from the floor
console gear shifter bezel.
FITMENT
1.Locate & fit (
snap fit
) the switch in the cutout of
floor console gear shifter.
2.Connect the electrical connection of the Transfer
case switch.
3.Fit the floor console gear shifter bezel assembly.
4.3.3 OVERHAULING
4.3.3.1 PRECAUTIONS
Do not use hammer to drive in the oil seal and
bearing. Use special tools for assembly.
Use a Torque Wrench to tighten threaded parts.
Always tighten the parts to the specified values.
Lubricate bearings, oil seals, bushings and
matching metal parts before assembly (with oil).
4.3.3.2 DISMANTLING
A. REAR YOKE
1. Drain the oil and tighten the drain plug.
2. Position the Transfer case on repair fixture/
work table
(Part No 2870 5890 26 08)
. Please
ensure rubber sheet is placed on the table.
3. Holding the yoke by yoke holder
(Part No 2870
5890 26 01)
, loosen and remove the locking nut
and take out the washer.
