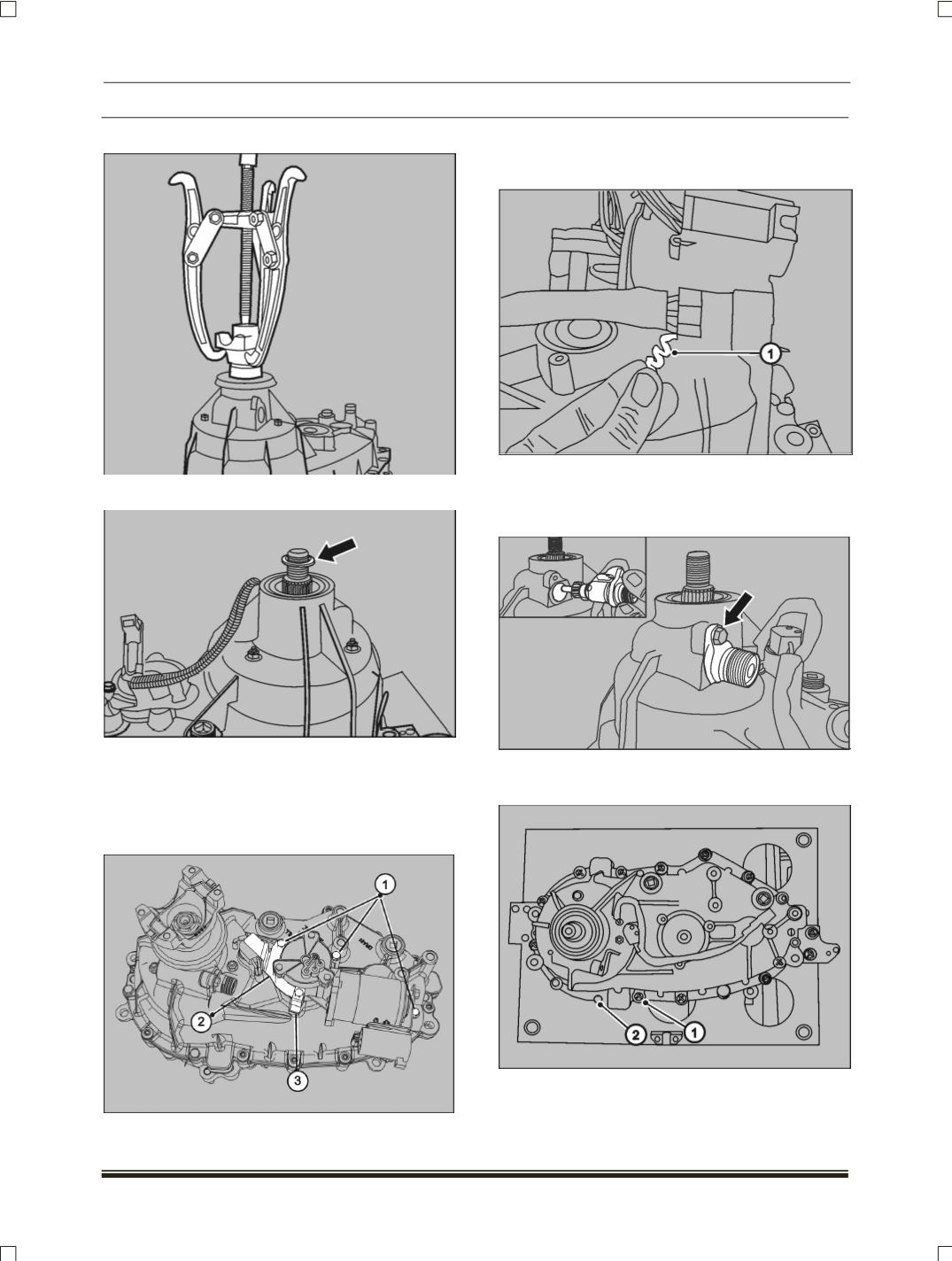

4. Remove the yoke with the help of puller.
5. Remove oil seal from the shaft.
B. REAR COVER ASSEMBLY
1 Loosen and remove 4 mounting bolts
(1)
of shift
motor and take out the “J” bracket
(3)
of wiring
harness and then remove the mounting bracket
(2).
2 Remove the connector clamp and slide the
wiring harness connector to separate it from
motor
3. Separate the shift motor from rear cover.
4. Loosen and remove the mounting bolt of
speedo assembly and take it out of rear cover.
5. Loosen and remove 13 self tapping bolts
(1)
and 2 hexagonal headed bolts
(2).
