TRANSFER CASE
18
4.3.2 MAINTENANCE
4.3.2.1 PRELIMINARY INSPECTION
Check the oil level in the transfer case and top-
up if necessary.
Check for any damage on the exterior of the
transfer case.
4.3.2.2 REGULAR MAINTENANCE

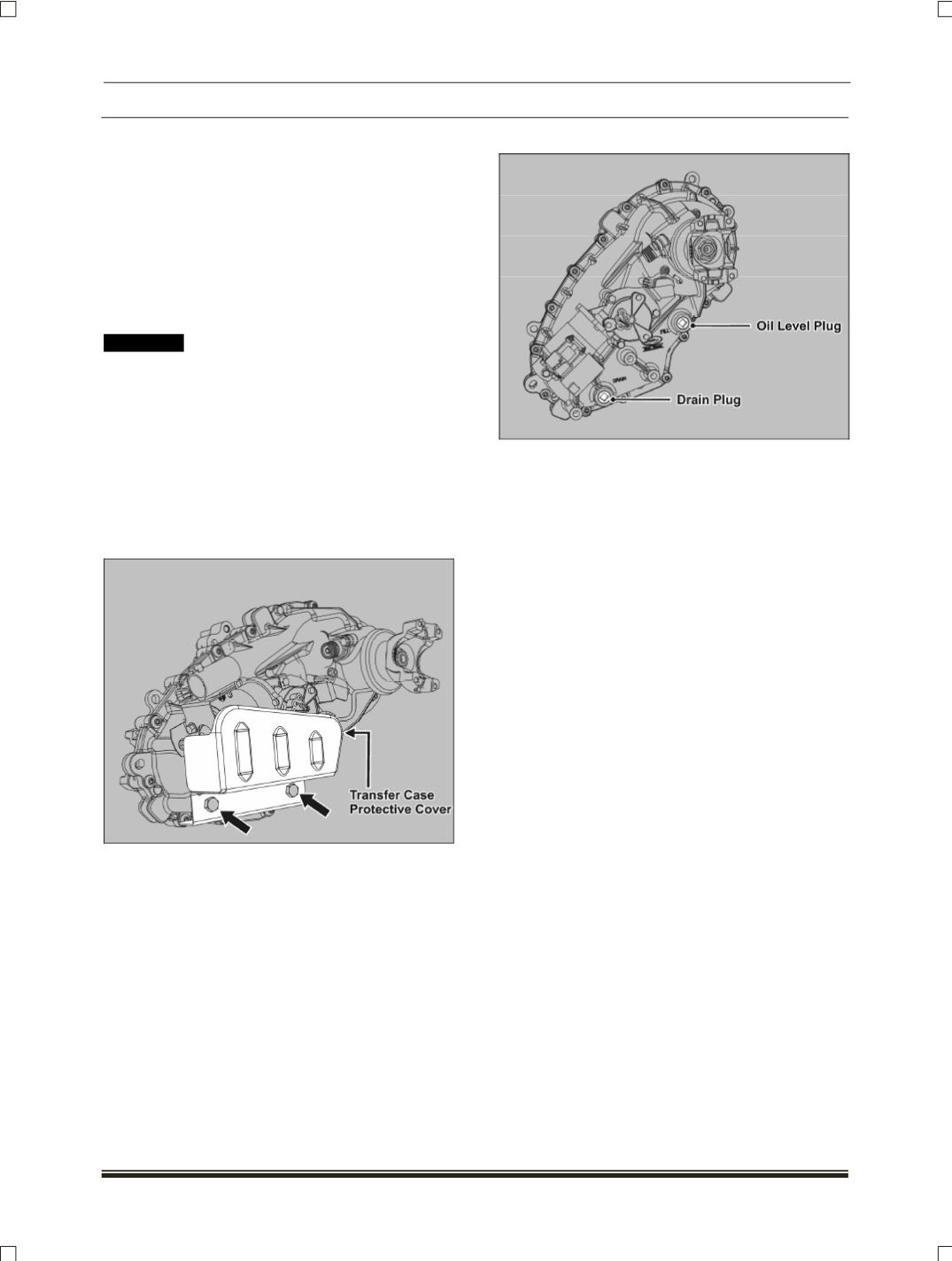

A. CHANGING TRANSFER CASE OIL
! CAUTION
Before checking or removing the oil, warming
up the transfer case is necessary. This should
be done by driving the vehicle for some time.
Do not use an impact wrench to open or tighten
the drain and oil level plugs. This may damage
the threads in the transfer case.
1. Hoist the vehicle on the two poster lift.
2. Loose and remove two bolts and take out the
motor protective cover.
3. Clean the oil level plug, drain plug and
surrounding area.
4. Place a container to collect oil, under the
transfer case.
5. Remove the oil level plug.
6. Remove the drain plug and drain the oil.
7. Tighten the drain plug.
8. Fill new oil through oil level plug, until it
overflows.
9. Tighten the oil level plug.
B. TRANSFER CASE OIL CHECK
1. Switch off the engine and disconnect the
battery negative.
2. Lift the vehicle on two poster lift.
3. Clean the oil level plug and surrounding area.
4. Loosen and remove the filler plug.
5. Check the level of oil by inserting a finger in the
filler hole.
6. Transfer case oil should be till the level of filler
plug if found less top up the oil.
