SAFARI

FRONT AXLE - 4

Carrier Section

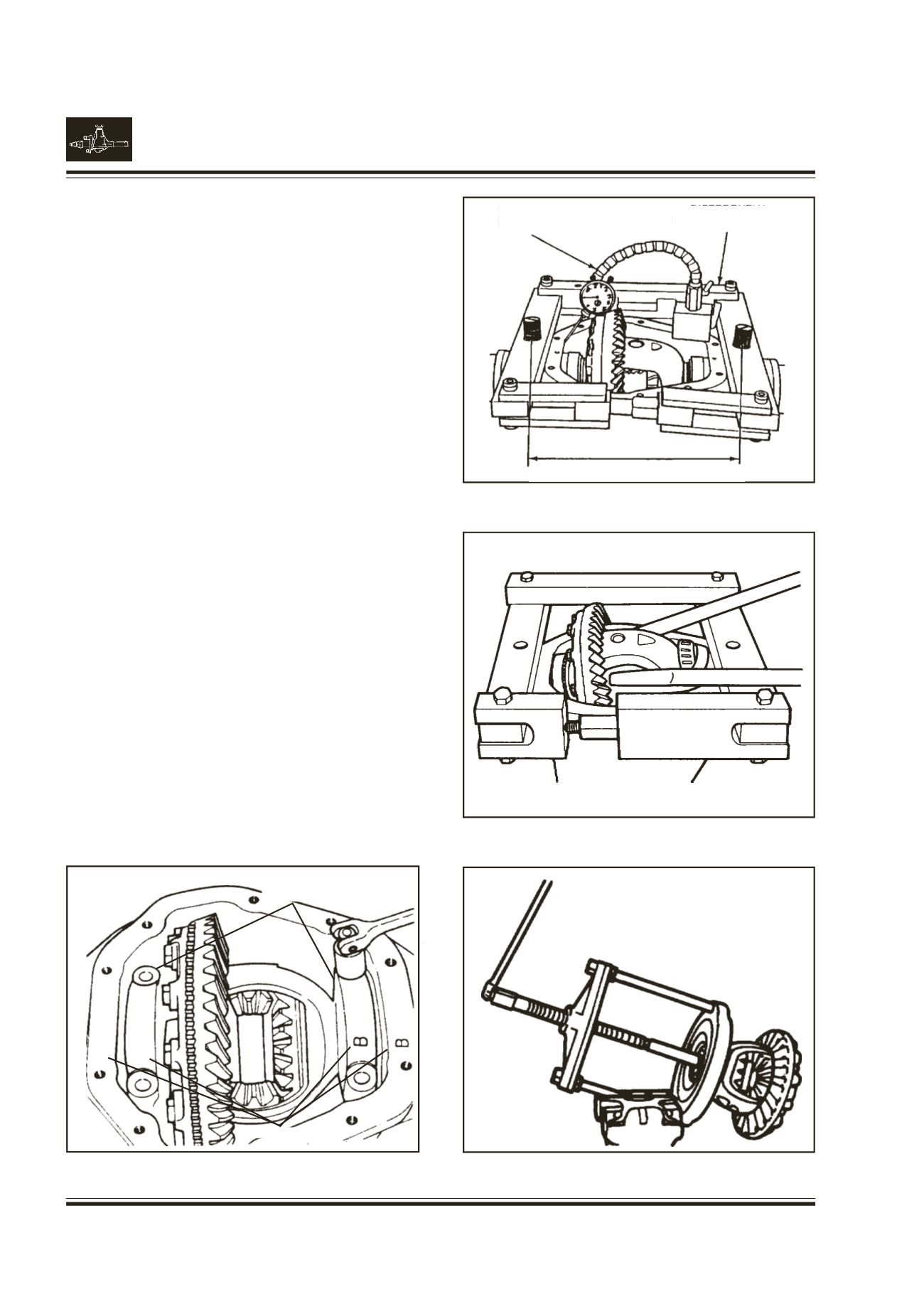

Remove bearing caps.

Fig. 25

Note mating letters stamped on caps and carrier.

Mount Expander for M30 carrier Pt. no. 2704 5890

3312 to housing. Do not spread carrier over 0.50 mm.

Use dial indicator.

Fig. 26

Remove dial indicator.

Pry differential case from carrier with two pry bars.

Fig. 27

Remove Expander.

Remove the right side bearing from flange carrier using

puller Pt. no. 2704 5890 3324.

Remove the differential bearings using :

Press Pt. no. 2698 5890 8515

Adaptor ring Pt. no. 2698 5890 3516

Adaptor to remove differential bearing Pt. no. 2704

5890 33 22.

Fig. 28.

Identify the shims, bearing cup and bearing cone as

to from which side they were removed.

Caution :

When pulling bearing, the differential

assembly may fall and get damaged.

Fig. 26

Fig. 27

Fig. 28

Fig. 25

DIAL INDICATOR/

MAGNETIC BASE

DIFFERENTIAL

HOUSINGSPREADER

SPREADER HOLETO SPREADER HOLE

BEARINGCAPS

MATING LETTERS

A A
