SAFARI

FRONT AXLE - 4

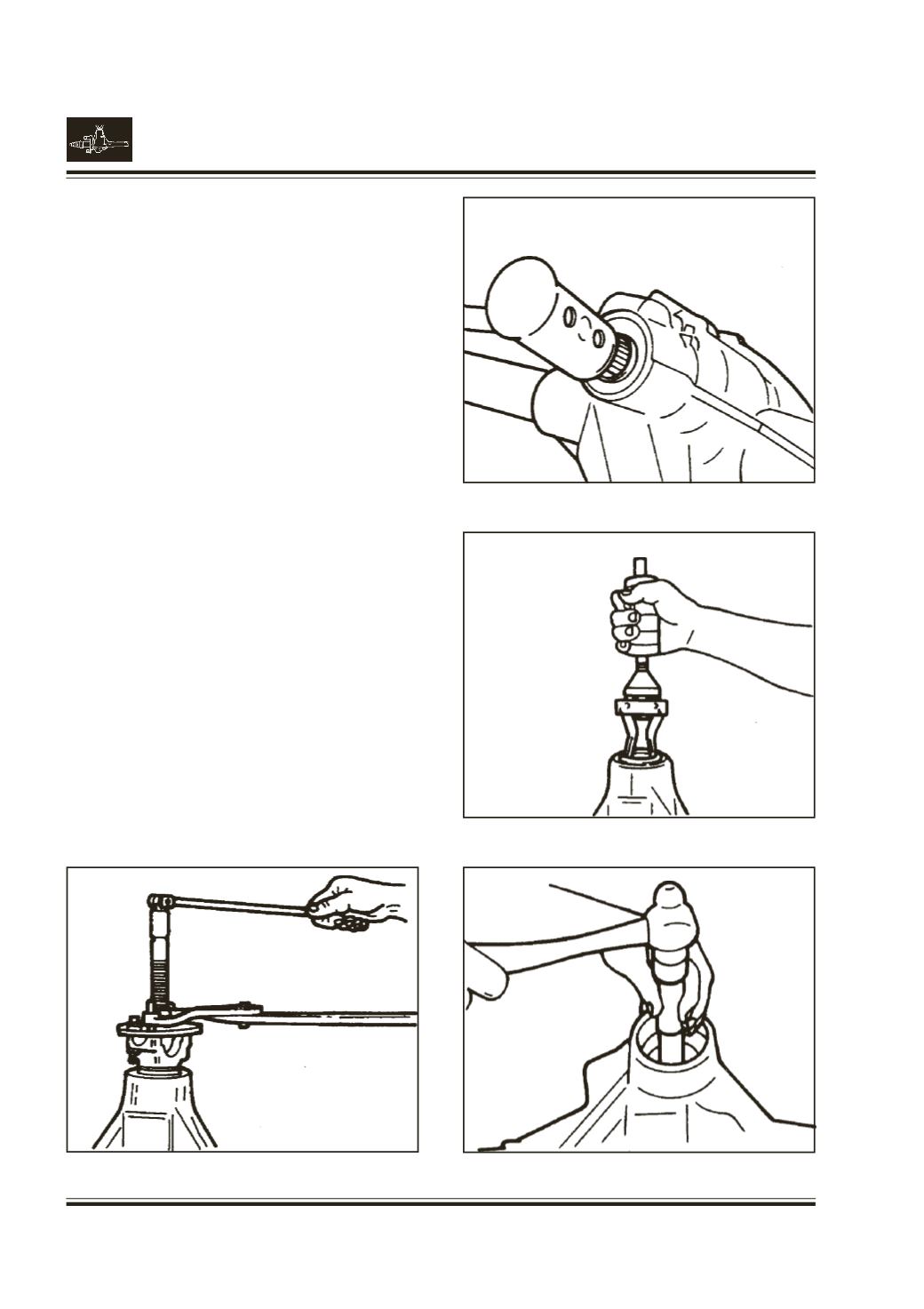

Drive Pinion Removal

Turn nose of carrier to vertical position, and Remove

pinion nut and end yoke.

Fig. 33

Note :

Discard the pinion nut.

Remove pinion by tapping.

Fig. 34

Note :

Pinion may fall and get damaged.

Discard the collapsible spacer.

Pull out pinion seal using puller slide hammer Pt. no.

2698 5890 3507

Fig. 35

Note :

Discard seal.

Remove bearing cone and outer pinion slinger.

Remove inner pinion bearing cup using Adaptor to

remove pinion inner cup Pt. no. 2704 5890 3310.

Fig. 3

Fig. 34

Fig. 35

Fig. 36

Fig. 33
