SAFARI

FRONT AXLE - 4

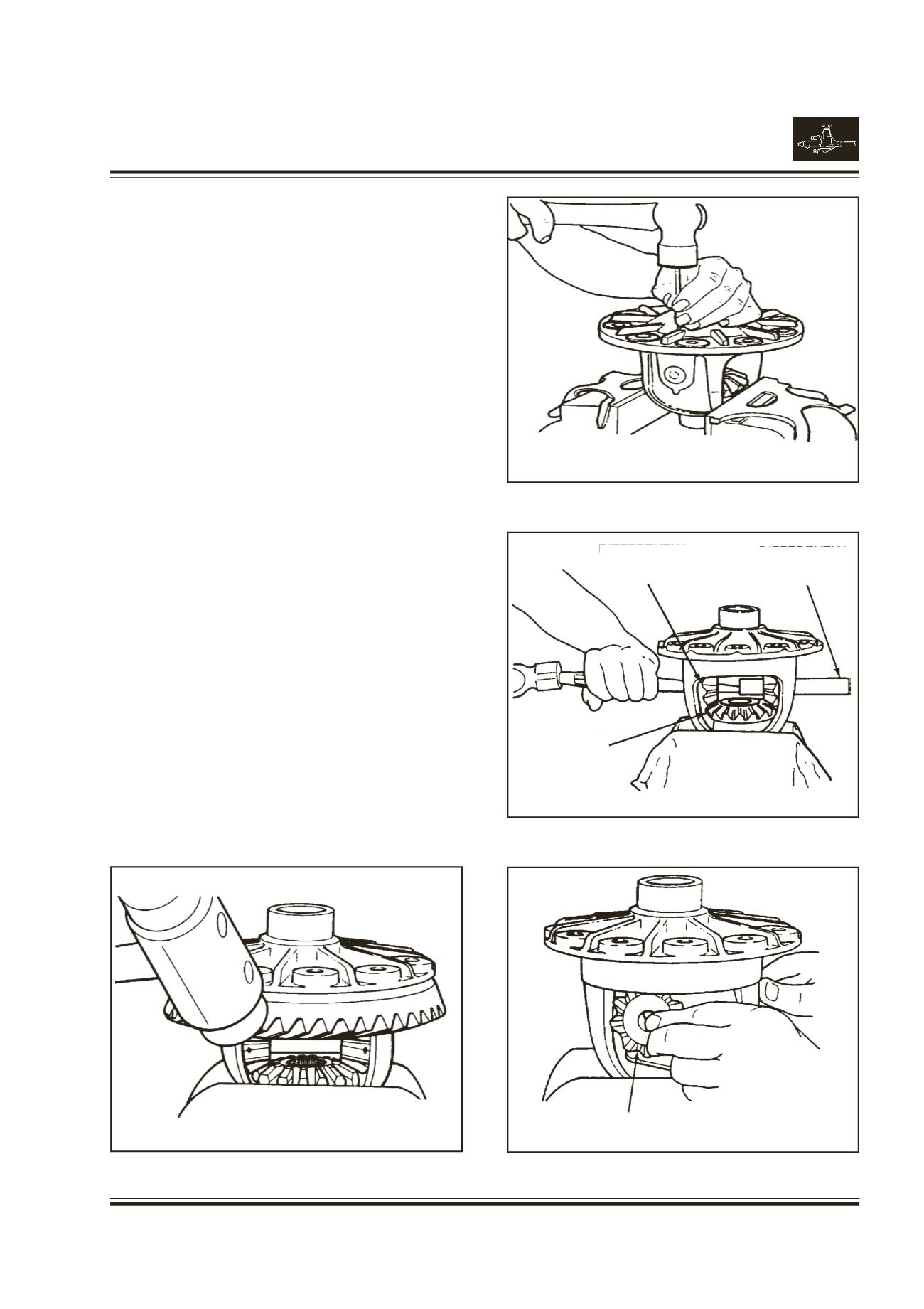

Remove the ring gear screws and ring gear.

Fig. 29

Note :

Protect the gear teeth from getting damaged.

: Discard the ring gear screws.

Case Disassembly

Drive out roll pin, securing the pinion mate shaft.

Fig. 30

Remove pinion mate shaft.

Fig. 31

Remove pinion mate gears by rotating the side

gears.

Remove side gears.

Fig. 32

Fig. 30

Fig. 31

Fig. 32

Fig. 29

DIFFERENTIAL

SIDE GEAR

DIFFERENTIAL

PINION SHAFT

DIFFERENTIAL

PINION GEAR

DIFFERENTIAL

PINION GEAR
