FRONT AXLE - 4

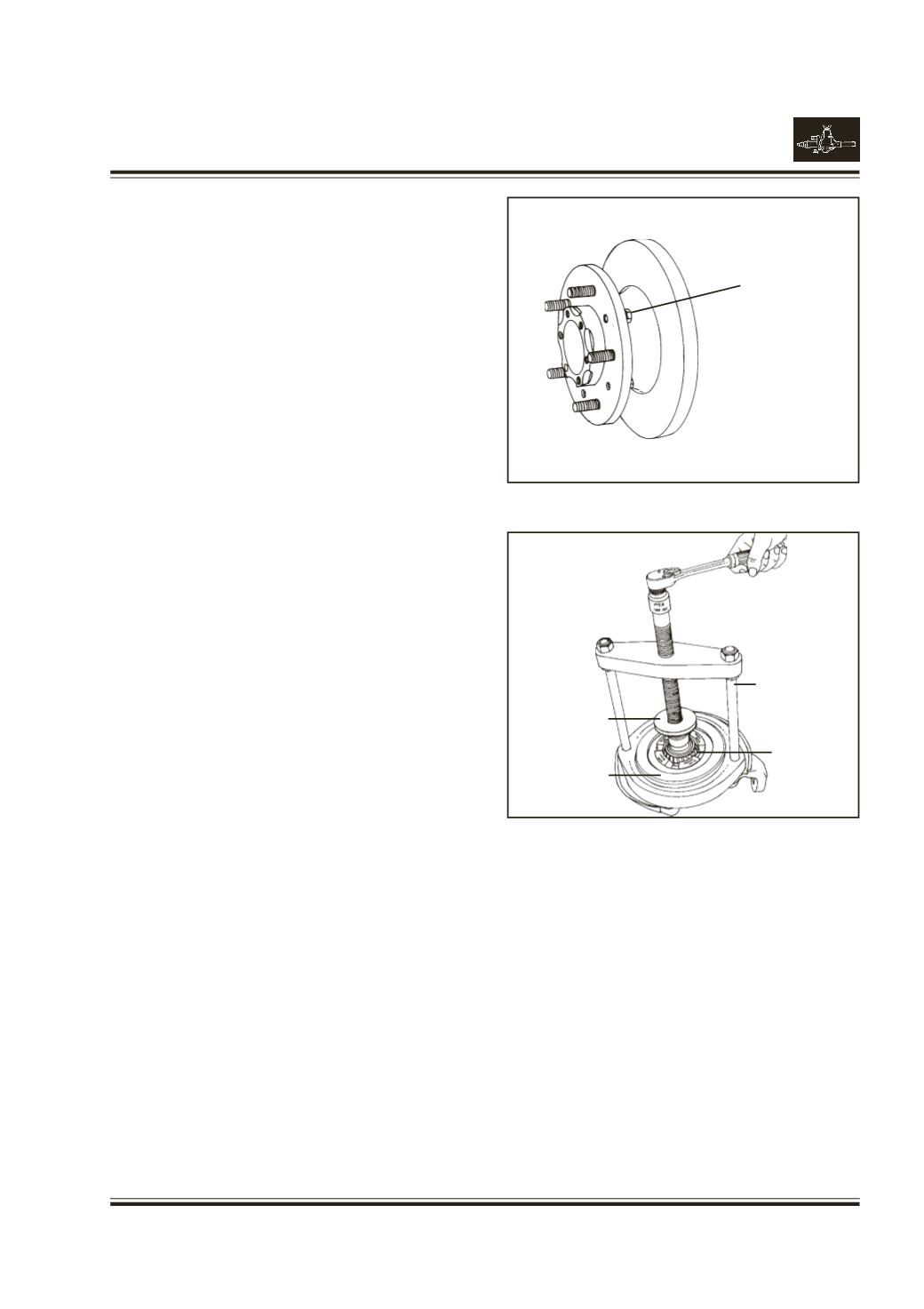

Remove outer bearing cone and roller assembly.

Use Adaptor to remove cup from hub (outer) Pt. No.

2704 5890 3308 and Remove outer bearing cup from

hub.

Turn the hub upside down.

Remove inner bearing cup from hub using Adaptor

to remove cup from hub (inner) Pt. no. 2704 5890

3307.

Fig. 13

Fig. 14

If necessary, Remove the five bolts and lock

washers that secure hub and brake disc.

Fig. 13

Separate the hub and brake disc and replace the

Brake disc, if required.

Spindle Assembly :

Place the spindle assembly on the work table.

Remove the inner bearing from the spindle as shown,

Fig. 14

using.

Adaptor ring Pt. no. 2698 5890 3516

Press Pt. no. 2698 5890 3515

Adaptor, plug spindle Pt. no. 2704 5890 3329

Adaptor to remove bearing cone on spindle. Pt.

no. 2704 5890 3326.

UNSCREW

Adapter Plug

Spindle

Press

Adapter Ring

Adapter to

remove

bearing

cone
