TIAGO

ELECTRICAL

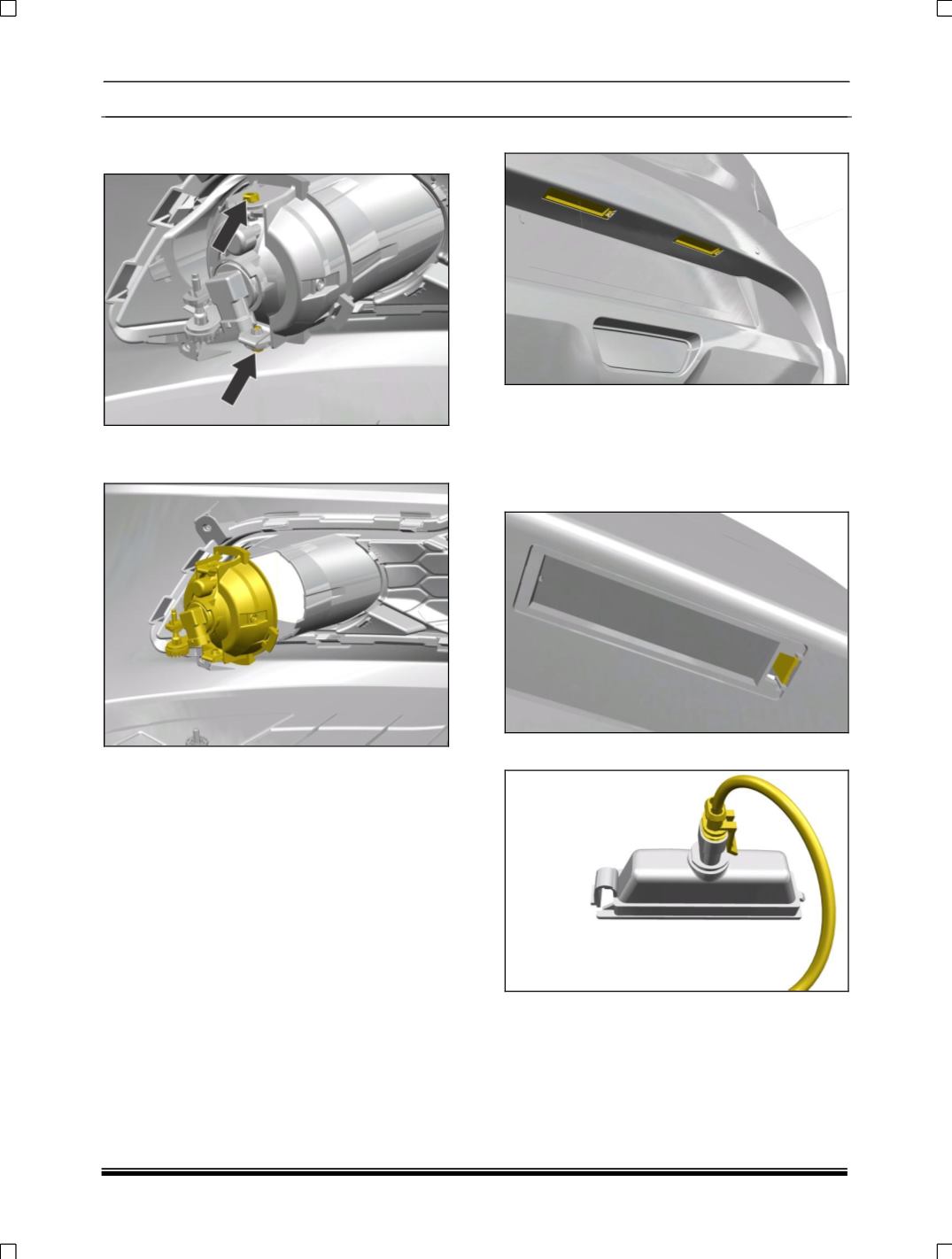

2. Remove two allen screws used for fitting the

lamp housing on the bumper.

3. Pull out fog lamp in opposite direction of its

fitting.

REFITMENT:

For refitment follow the procedure in reverse.

BULB REPLACEMENT PROCEDURE:

1. Disconnect the electrical connection.

2. Remove the bulb assembly by rotating in anti-

clockwise direction.

3. Take out the bulb from holder& replace with

new one.

4. Fit the assembly by rotating in clockwise direc-

tion.

5. Connect the electrical connection.

8.7 10 REGISTRATION PLATE LAMP

REMOVAL AND REFITMENT OF REGISTRA-

TION PLATE LAMP

REMOVAL:

1. Gently pry out the lamp assembly from the rear

bumper by pressing the mounting clip.

2. Disconnect the connector from lamp.

REFITMENT:

Carry out the fitment process in the reverse order

of the removal.
