ELECTRICAL
34

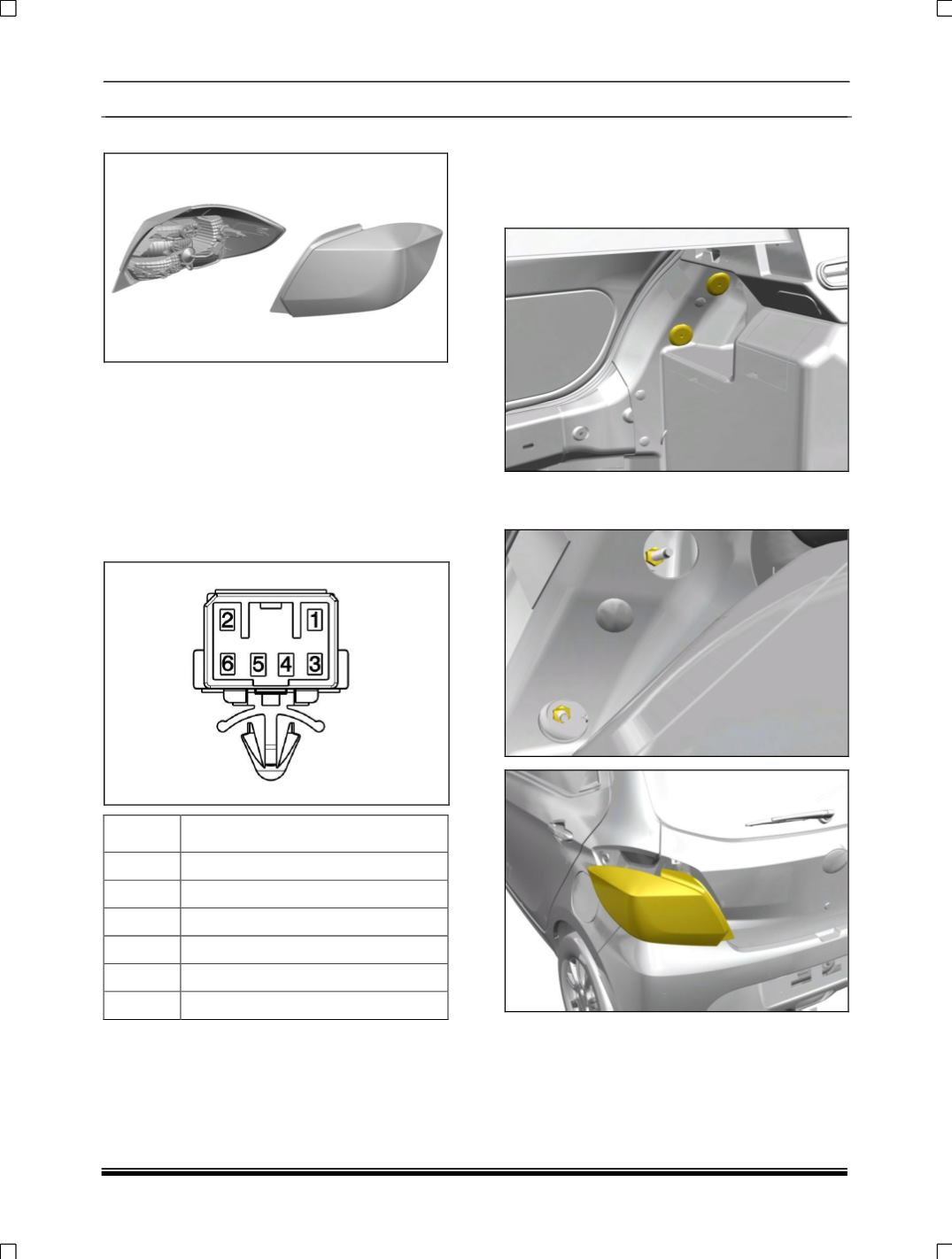

8.7.8 TAIL LAMP
Tail lamp consists of the following bulbs:
1. Turn indicator
2. Reverse
3. Tail/Position light
4. Stop light
It is fitted on D pillar.
PINOUT DETAILS
PIN
DESCRIPTION
1
Turn Signal
2
Stop Signal
3
Dummy
4
Ground
5
Tail/Position Signal
6
Reverse Signal
REMOVAL AND REFITMENT OF TAIL LAMP
REMOVAL
1. Remove plug from hole on the wheel arch car-
pet.
2. Remove the nut holding the lamp and pull out
the lamp.
