TIAGO

ELECTRICAL

3. Remove the electrical connections.

REFITMENT:

1. Connect the electrical connection

2. Aline the lamp with its locating catcher.

3. Tighten its two mounting the nut.

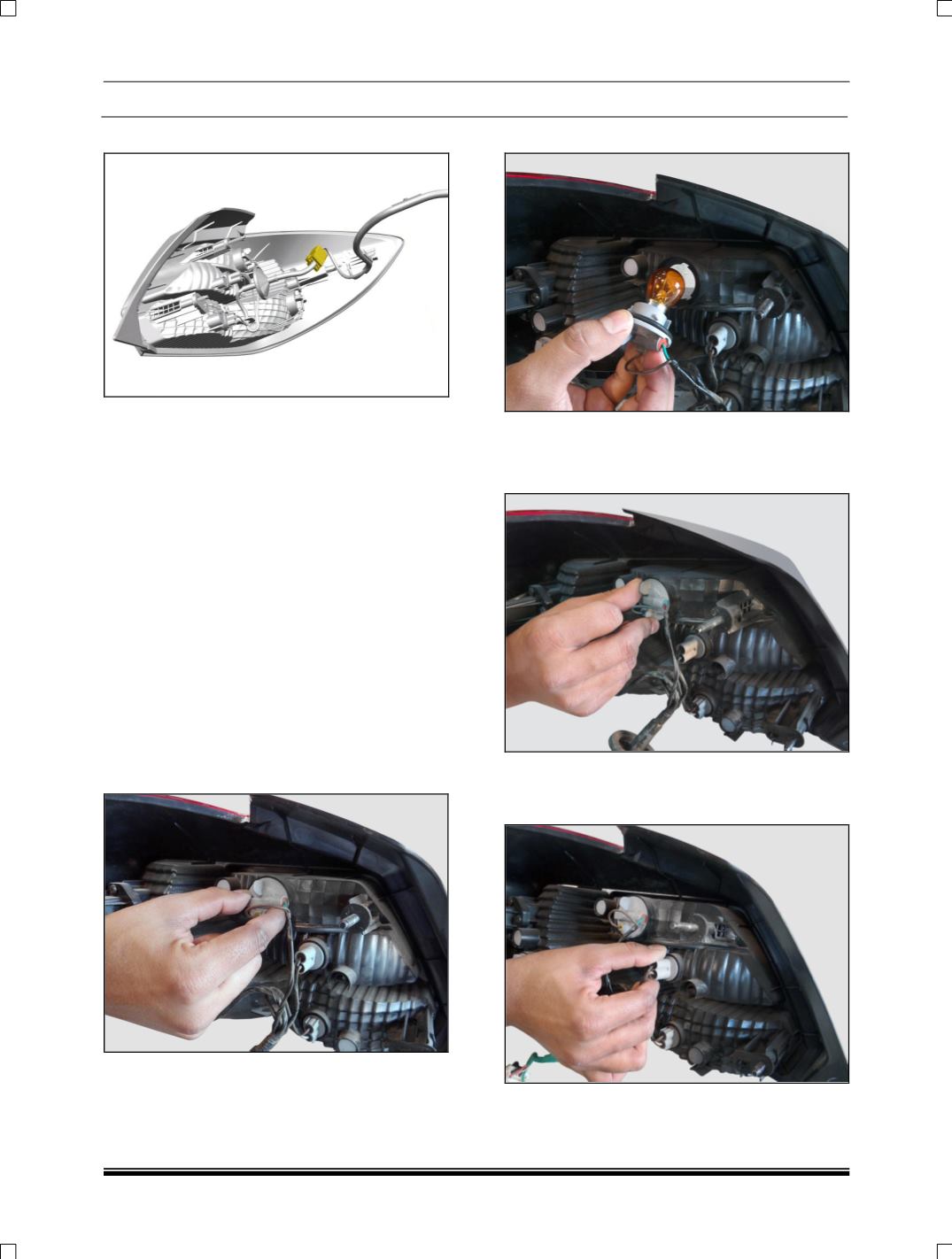

REMOVAL & REFITMENT OF TAILLAMP &

BULBS

REMOVAL

1. Open Tailgate & ensure all lamps in OFF condi-

tion.

2. Disconnect Tail lamp Connector.

3. Remove the two nut mounting fastener.

4. Pull the lamp at catcher points to release from

BIW & take lamp out from vehicle.

5. Rotate the turn signal bulb holder in anti-clock

wise direction to unlock the bulb holder from

lamp.

6. Remove the bulb holder from lamp.

7. Remove/replace the bulb.

8. Rotate the bulb holder in clockwise to lock the

bulb holder on lamp

9. Rotate the reverse lamp bulb holder in anti-

clock wise direction to unlock the bulb holder

from lamp.
