TIAGO

ELECTRICAL

FRONT AND REAR WIPER SYSTEM

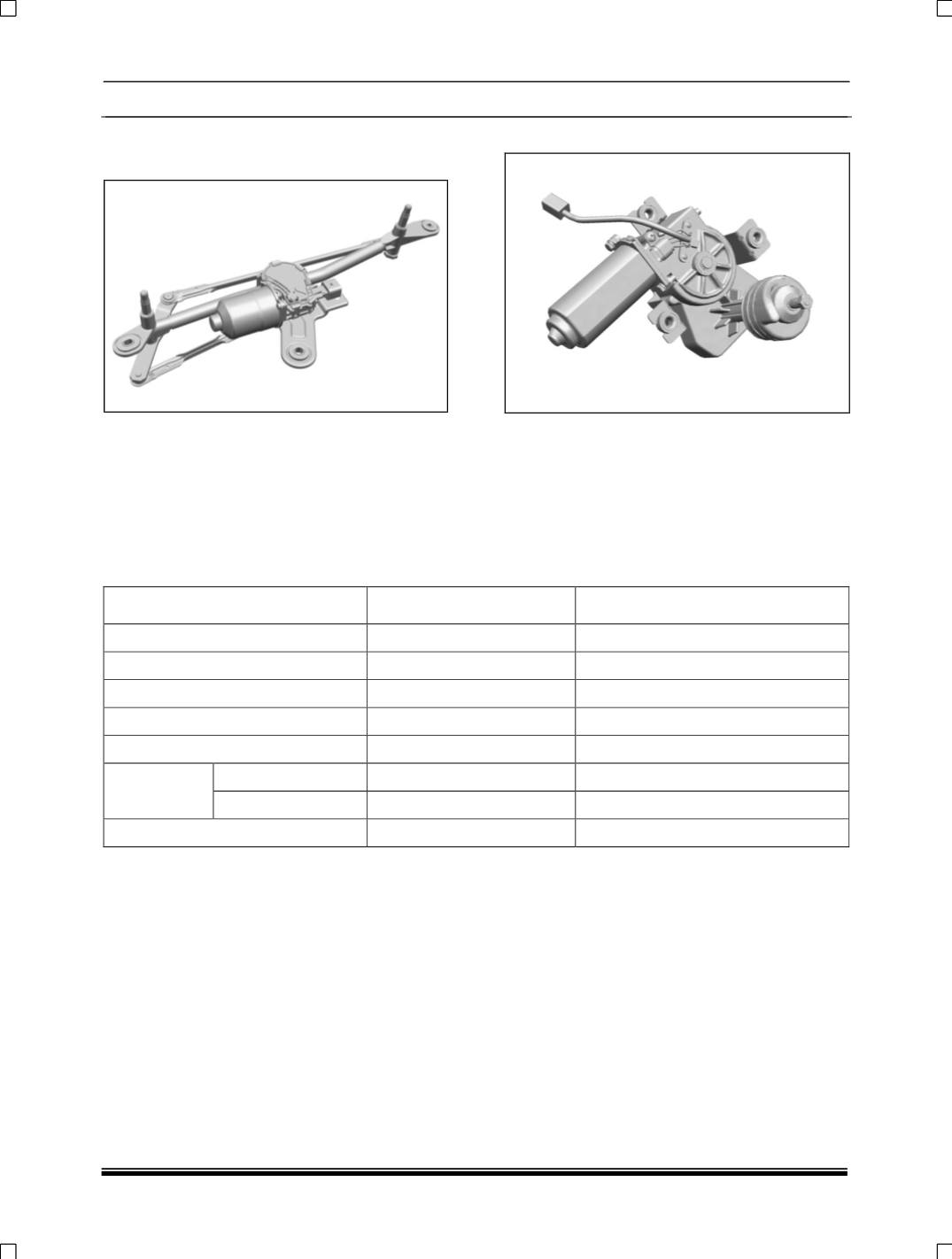

FRONT WIPER MOTOR

LOCATION:

The front wiper motor assembly is fitted on

windscreen support panel.

REAR WIPER MOTOR

LOCATION:

It is fitted on tail gate panel.

REMOVAL AND REFITMENT

NOTE: -

For wiper and washer system removal and re-fitment procedure, refer body section.



MOTOR SPECIFICATION

ITEM

REAR WIPER

FRONT WIPER

RATED VOLTAGE

12V

TEST VOLTAGE

13.5±0.2V

13.5

OPERATING VOLTAGE RANGE

10-15V

09-16V

OPERATING TEMP RANGE

-40ºC TO +80ºC

INSULATION RESISTANCE

1M.ohm MIN

2 Nm LOAD

SPEED

20 – 25 rpm

40 – 75 rpm

CURRENT

4 A maximum

4 – 5 A maximum

NOISE

50 db (A) maximum

55 – 60 db (A) maximum
