ELECTRICAL

33

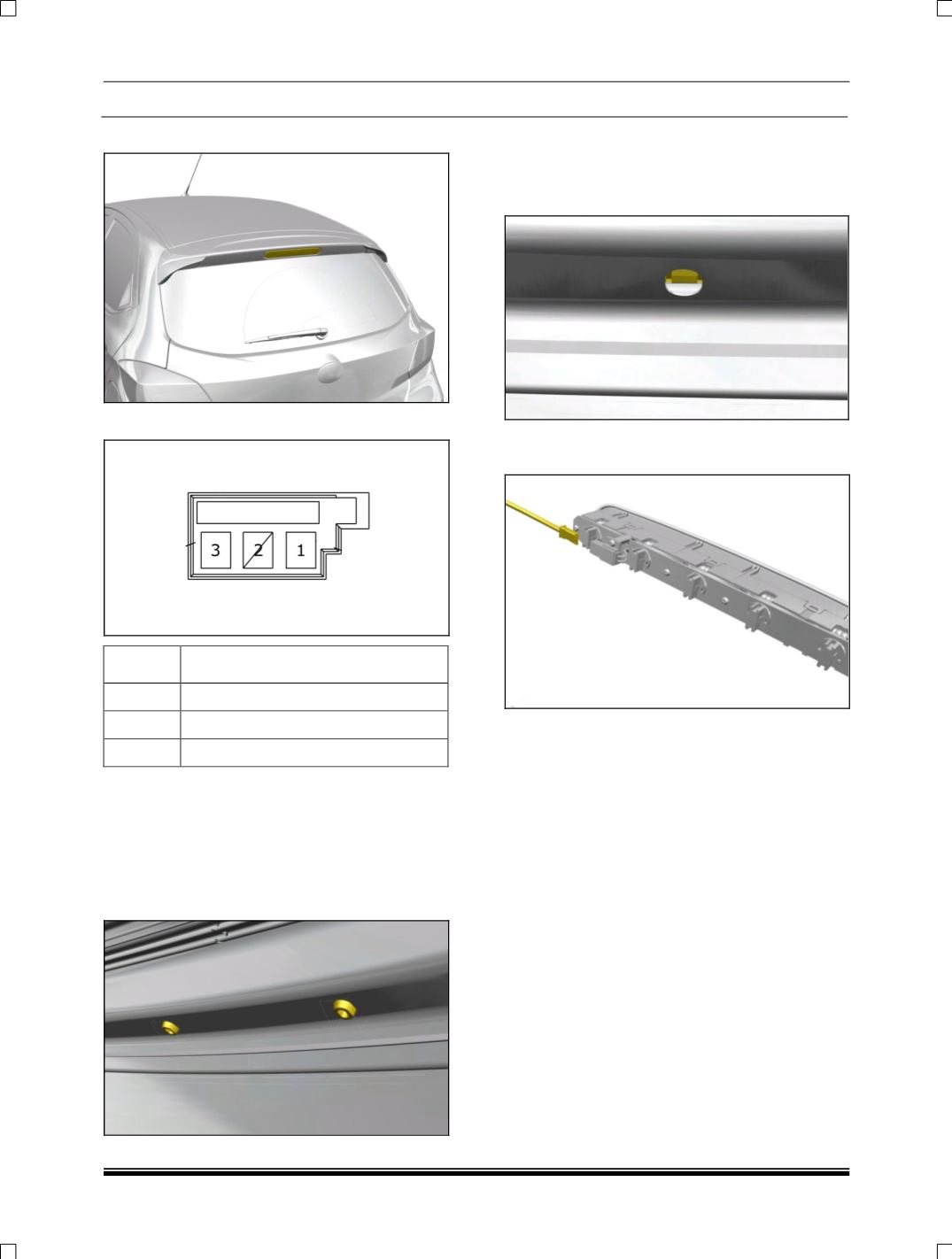

8.7.7 HIGH MOUNTED STOP LAMP

PINOUT DETAILS

PIN

DESCRIPTION

1

Earth

2

Dummy

3

Main

REMOVAL AND RIFITMENT OF HIGH MOUNT-

ED STOP LAMP

REMOVAL

1. Open the tail gate.

2. Remove the rubber cap from hole on the back

panel.

3. Insert screw driver from the back panel holes.

4. Press the mounting clip by screw driver and

then remove the high mounted stop lamp by

tilting it from outside the vehicle

5. Disconnect the electrical connection and re-

move the lamp.

6. Remove the bulb if required, bulb type 5nos.

REFITMENT

1. Reconnect the stop lamp connector.

2. Align & press fit high mounted stop lamp on

the spoiler.

3. Refit the rubber cap on the back panel hole.
