TIAGO

ELECTRICAL

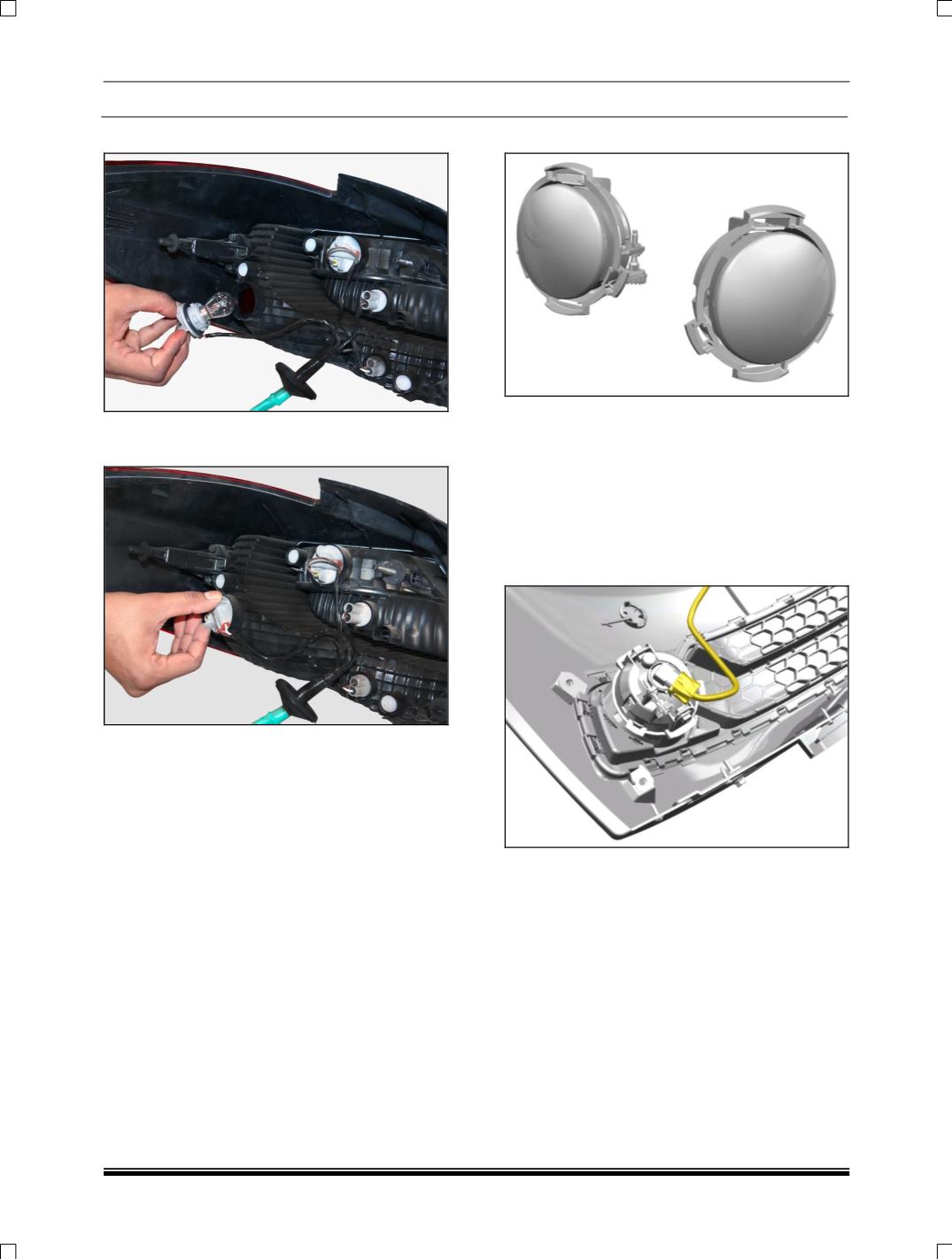

16.Remove the bulb holder from lamp.

17.Rotate the bulb holder in clockwise to lock the

bulb holder on lamp.

REFITMENT –

1. Position Tail lamp to its proper place.

2. Push the lamp at catcher points to sliding direc-

tion x axis to lock with Trim Clip on BSO &

simultaneously catcher on BSO.

3. Tight the both nuts

4. Connect Tail lamp connection.

5. Close the Tailgate

8.7.9 FRONT FOG LAMP

The fog lamps are located in the lower part of the

front bumper. The bulb used for the fog lamp func-

tion is a halogen H16 bulb, 12V - 19W.

Fog lamp on/off is done by using master light

switch.

REMOVAL:

1. Disconnect the electrical connection of fog

lamp.
