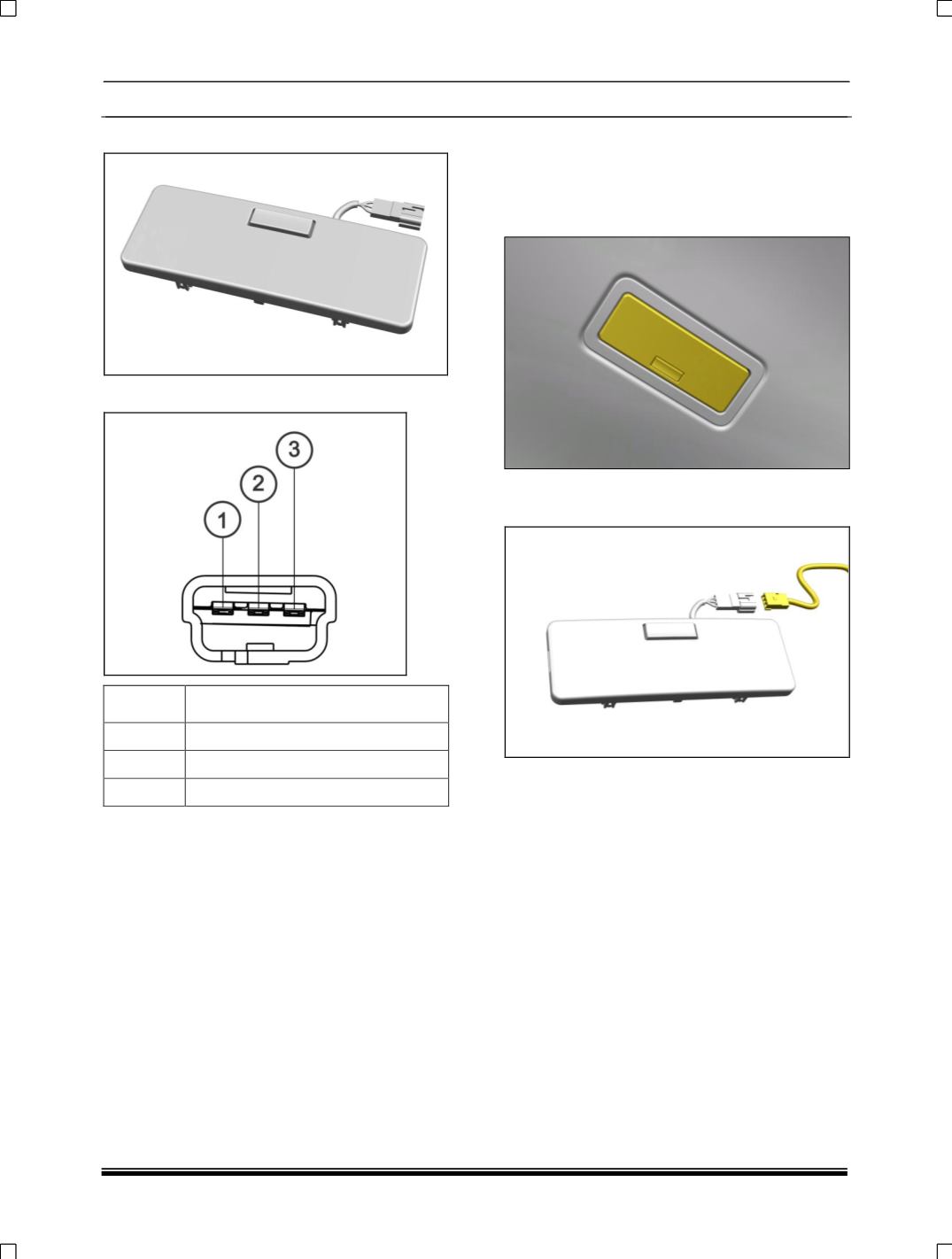

8.7.6 ROOF LAMP
PINOUT DETAILS
PIN
DESCRIPTION
1
-ve
2
Door
3
+ve
REMOVAL AND REFITMENT OF ROOF LAMP
REMOVAL:
1. Gently pry out the roof lamp assembly from the
bezel roof lamp by inserting wedge.
2. Disconnect the electrical connector form the
assembly.
REFITMENT:
Carry out the fitment process in the reverse order
of the removal.
