ELECTRICAL
31

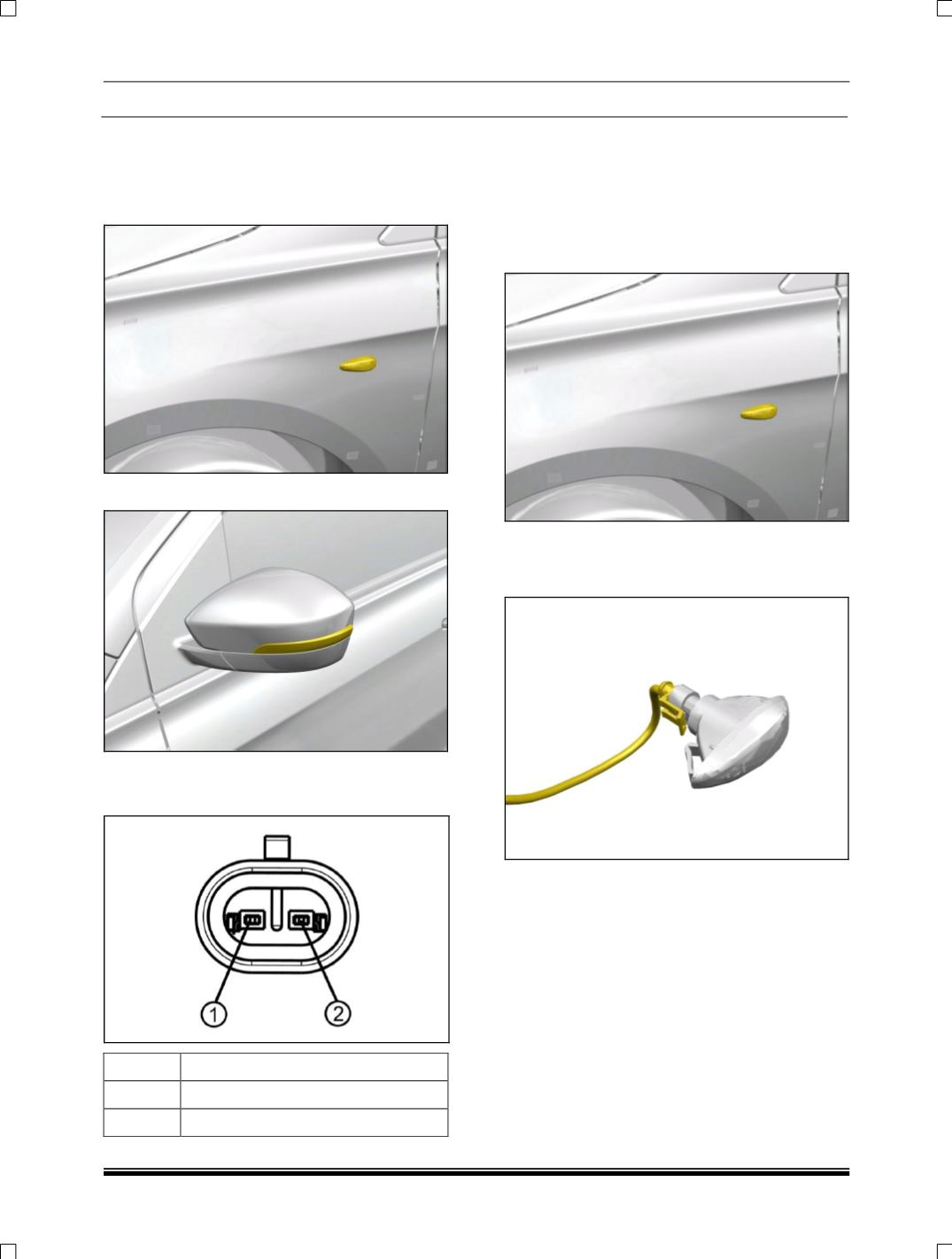

8.7.5 SIDE REPEATER LAMP (LH/RH):
There are two different types of side repeater
lamp fitting on the vehicle.
A. Side Repeater on Fender (if applicable)
B. Side Repeater Lamp on ORVM (if applicable)
PINOUT DETAILS:
a. Side Repeater on Fender
PIN
DESCRIPTION
1
Ground
2
Supply
REMOVAL AND REFITMENT OF SIDE RE-
PEATER LAMP
REMOVAL:
A. Side Repeater on Fender (if applicable)
1. Gently pry open the lamp by pressing the snap
lock and pull out the lamp from panel.
2. Remove the connection and secure wiring
harness on fender. Wiring harness should not
go inside.
REFITMENT
Follow the reverse process for installing the side
repeater lamp.
B. Side Repeater on ORVM (if applicable)
Please refer Body Section for removal and refit-
ment of side repeater lamp on ORVM.
