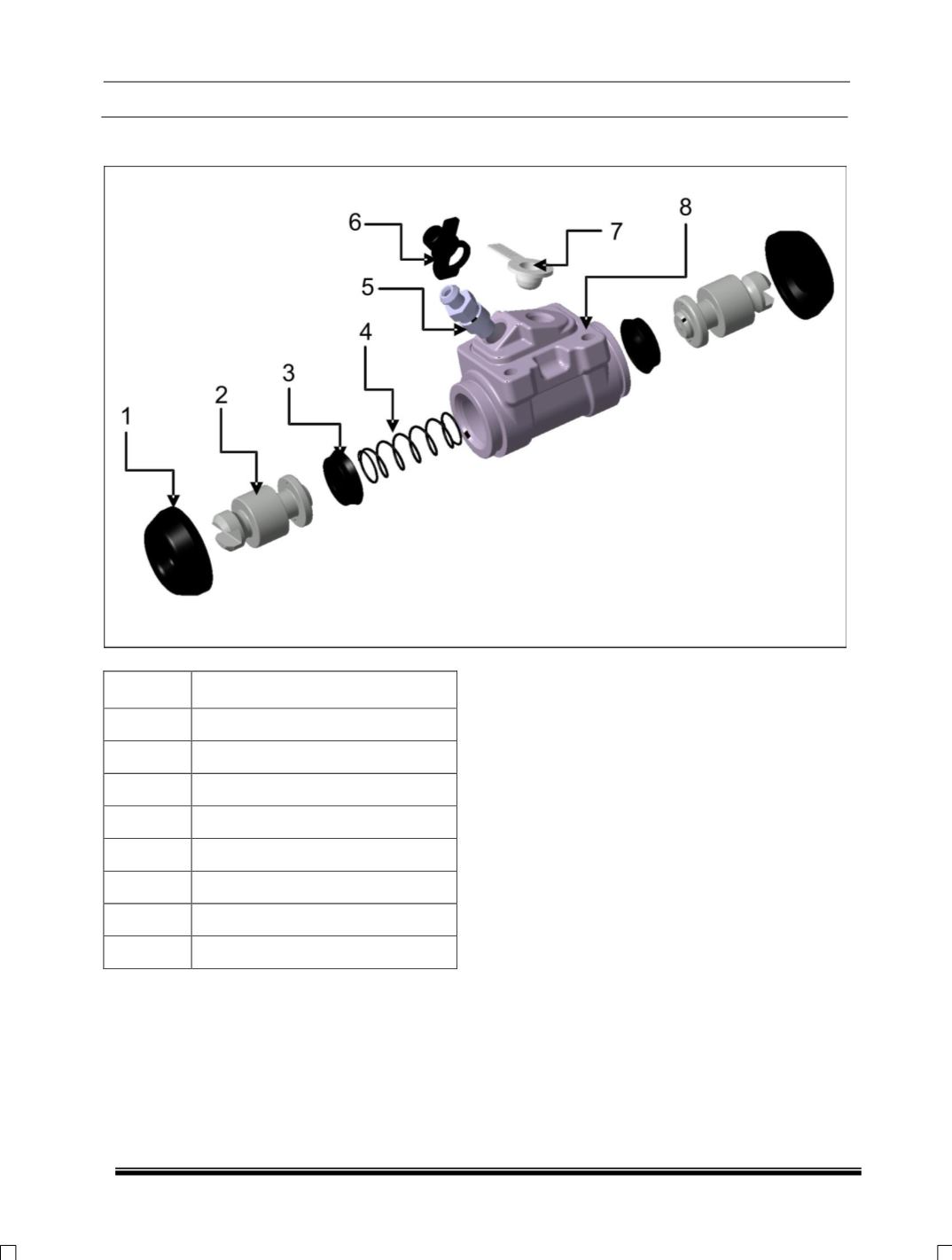

EXPLODED VIEW OF WHEEL CYLINDER
ASSEMBLY
ITEM NO
DESCRIPTION
01
BOOT/DUST COVER
02
PISTON/PLUNGER
03
L TYPE SEAL
04
SPRING
05
BLEED SCREW
06
BLEED SCREW CAP
07
PROTECTIVE PLUG
08
WHEEL CYLINDER BODY
REMOVAL OF WHEEL CYLINDER
1. Remove bleed screw cap, bleed screw and
protective plug
2. Pump out the brake fluid in a suitable container
by operating the brake pedal.
3. Remove boot/ dust cover
4. Push out the piston with seal’s.
5. Remove the seals from the plunger using a
blunt edged connector.
6. Discard all rubber parts.
7. Clean all parts in fresh brake fluid or alcohol
and place them on clean sheet of paper.
NOTE
Never clean the wheel cylinder or internal parts
with kerosene, petrol or diesel as it will lead to
contamination and damaging the rubber part.
