TIAGO

BRAKES

PARKING BRAKE ASSEMBLY

PARKING BRAKE

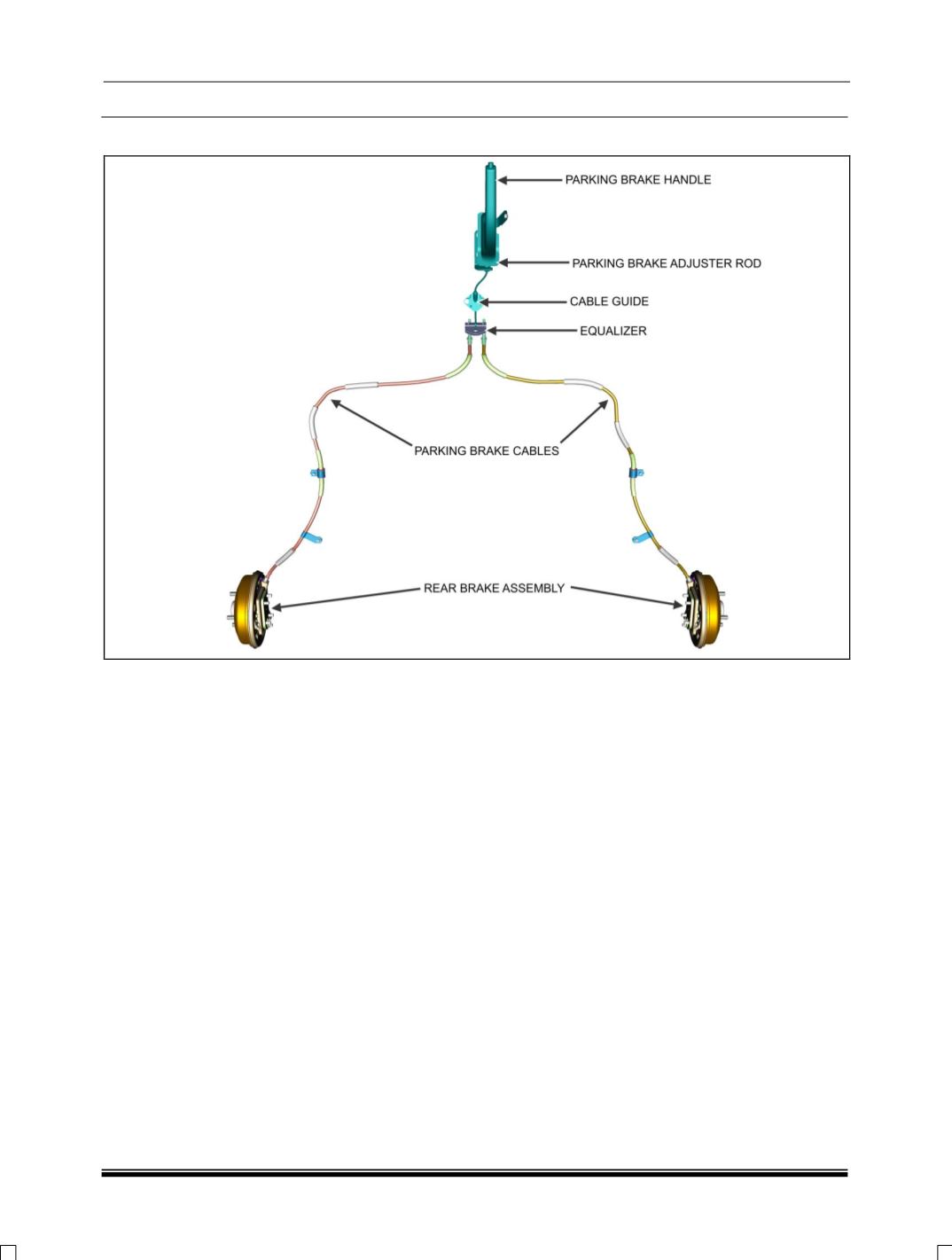

Complete View of Parking Brake

The parking brake arrangement is cable operated.

It is a console mounted mechanical type brake

acting on rear wheels. The hand brake lever

situated in the cab operates it. When the hand

brake lever is pulled up, the parking brake lever

arrangement in the rear brake assembly inside

the rear brake drum brake is also pulled through

the cable system. This action expands the rear

brake shoes against the drum, thus applying the

rear brakes.

PARKING BRAKE HANDLE CONSTRUCTION

This is a safety device so designed that the

parking brake does not get released accidentally.

To release parking brake, lift the handle slightly

and keeping release button pressed, push down

the lever fully. When release button is pressed as

above, pawl rod also gets pushed, disengaging

pawl from ratchet, thus releasing the parking

brake
