BRAKES
52

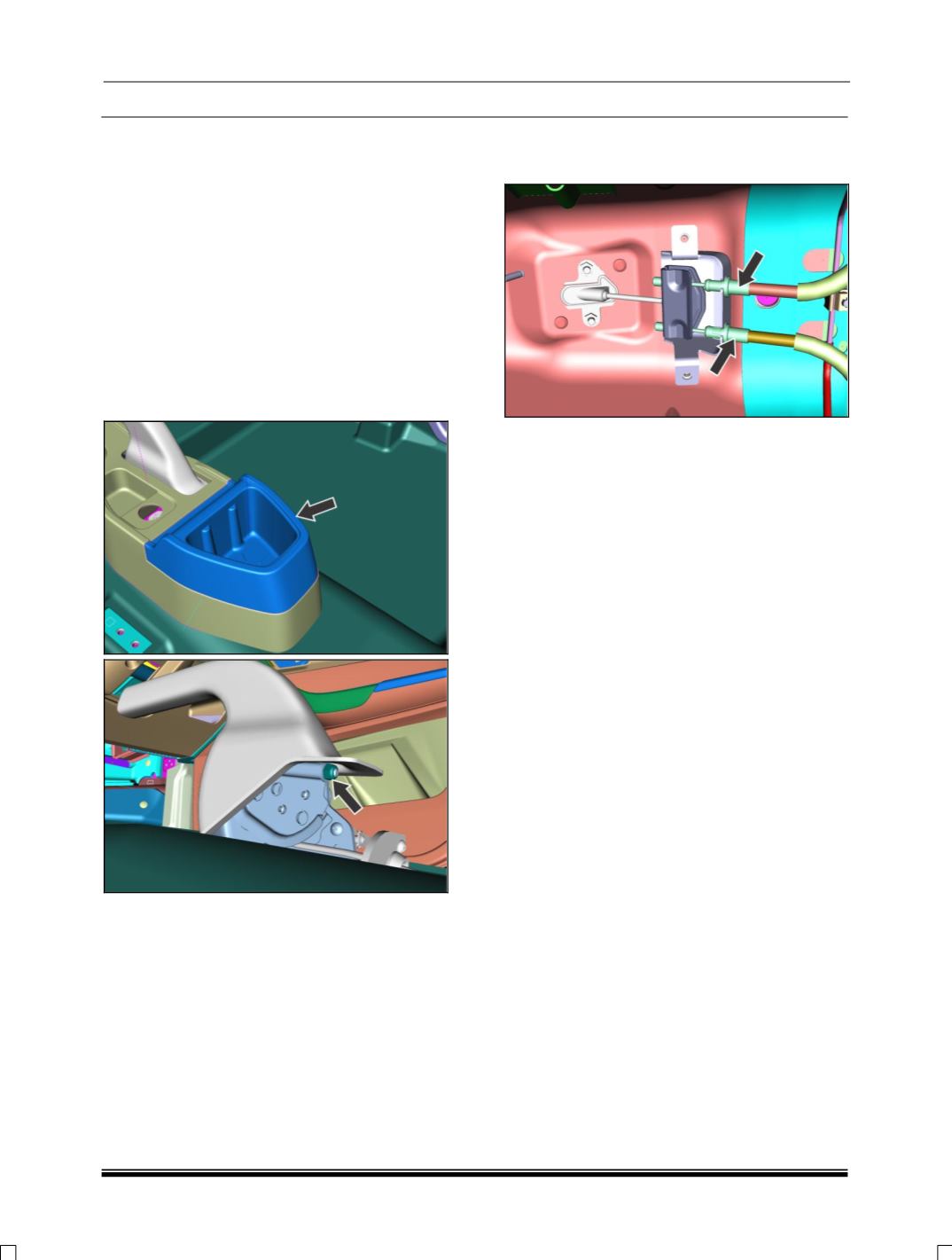

6.13.7 REMOVAL AND INSTALLATION OF
PARKING BRAKE CABLE
1. Remove the brake drum - refer Removal brake
drum.
2. Remove the parking brake clip from the rear
brake assembly.
3. Disconnect the parking brake cable from the
shoe lever - refer Brake shoe removal.
4. Remove the cable from the rear brake
assembly.
5. From the cabin, remove the Rear Cup holder.
Loosen the parking brake slackness
adjustment nut located inside the console that
can be accessed through the Cup holder
opening.
6. Remove the parking brake cable that is snap
fitted to the cable-mounting bracket located
underbody.
7. Remove the Primary cable of the Parking
Brake Lever from equalizer located underbody.
8. Now disconnect all the parking brake cable
clamps from the body mountings.
