DRIVETRAIN-TA65 Star
53

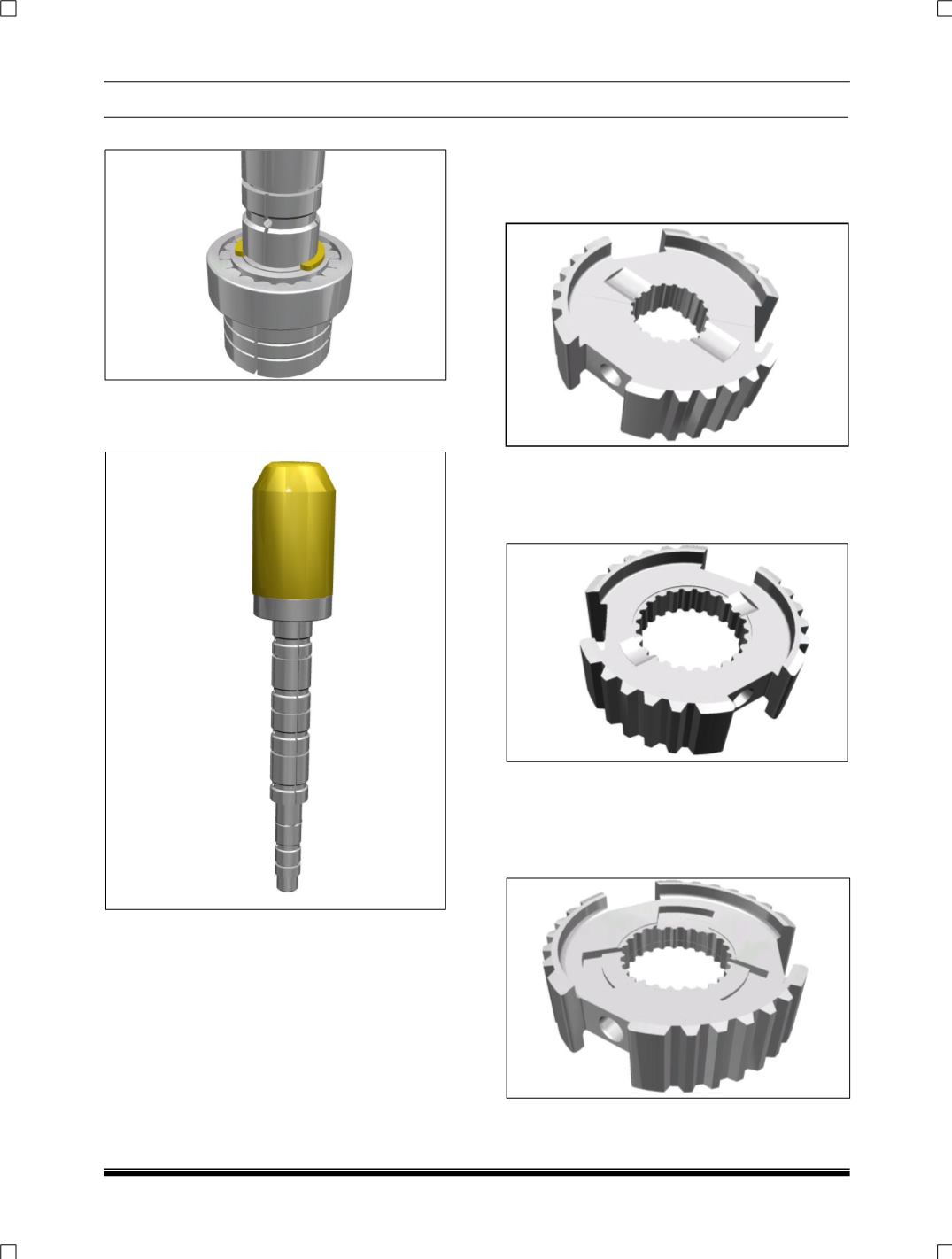

12. Pry out circlip from lay shaft.
13. Place the lay shaft upside down and remove
cylindrical roller bearing using drift Part No.
2702 5890 2605.
4.7. N. IDNETIFICATION OF COMPONENTS
1. ENGAGING GEARS:
1. 5th engaging gear is having smaller dia inner
spline for fitment on lay shaft.
5th Engaging Gear
2. 3rd and 4th engaging gear is similar in size
with 5th engaging gear but having bigger
inner splines to fit on lay shaft.
3rd & 4th Engaging Gear
3. 1st and 2nd engaging gear is having inner
spline dia similar to 3rd/4th engaging gear but
outer dia is bigger to engage with 1st/2nd
shifter sleeve.
1st & 2nd Engaging Gear
