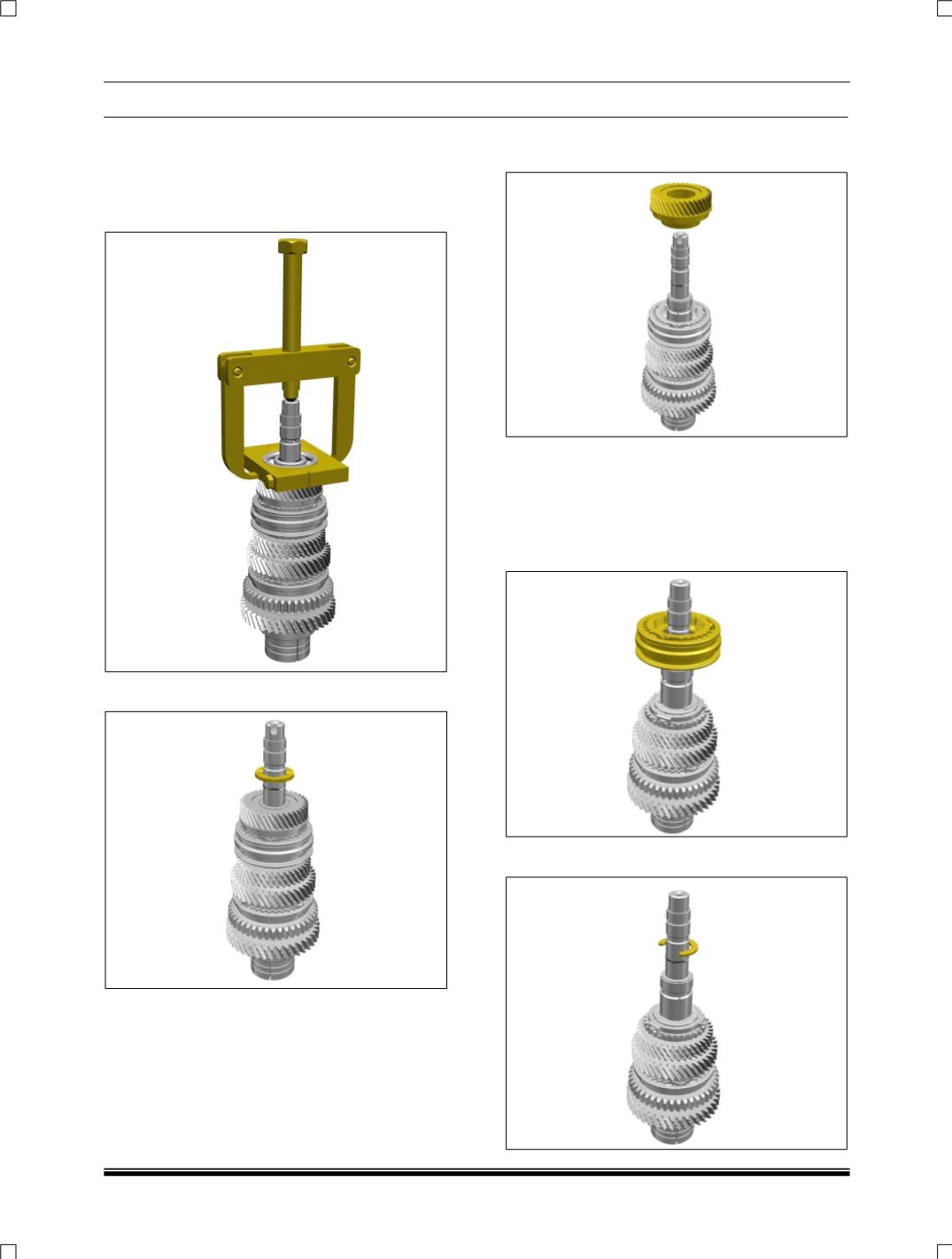

4.7. M. DISASSEMBLY OF LAY SHAFT:
1. Remove deep groove ball bearing (rear)
Remove Deep groove Ball bearing from lay
shaft by using holder 2702 5890 2607 with
puller 2654 5890 3508.
2. Remove spacer.
3. Remove sub-assembly 4th gear (lay shaft)
along with the plate.
4. Remove Synchro pack assembly (3/4 speed)
CAREFULLY so that springs, carriers and
balls do not jump out.
Synchro pack -Shifter sleeve, engaging gear,
synchro cone, spring, ball, carrier (sleeve in
case of 1st gear).
5.Pry out circlip from lay shaft.
