TIAGO

DRIVETRAIN-TA65 Star

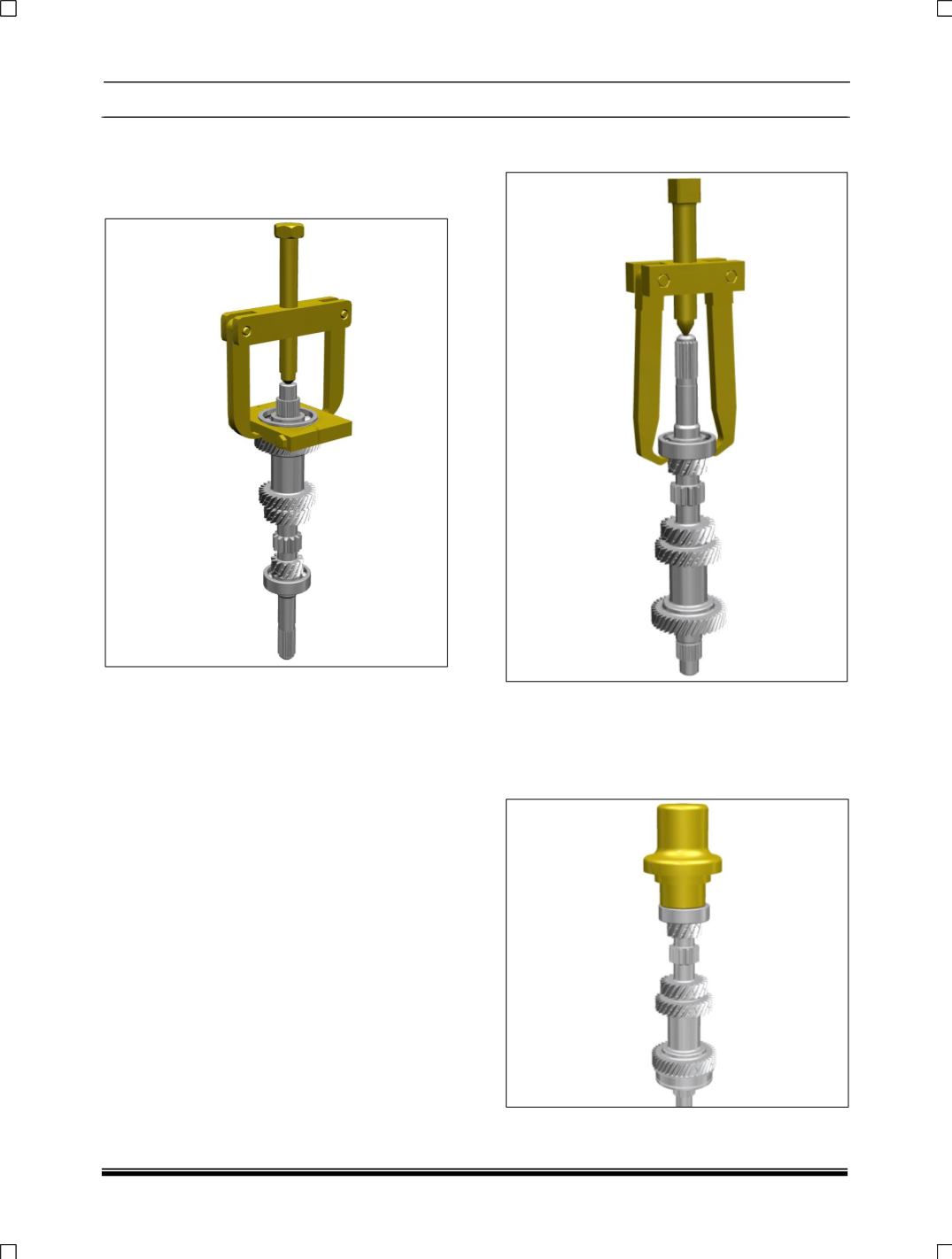

4.7. K. INPUT SHAFT SUB ASSEMBLY:

1.Remove deep groove ball bearing (rear) by

using holder part no. 2702 5890 2606 with

puller part no. 2654 5890 3508.

2. Remove deep groove ball bearing (front) by

using puller part no. 2657 5890 2801.

4.7. L. INPUT SHAFT ASSEMBLY:

1.Place and fit deep groove ball bearing (rear) on

input shaft using drift part no. 2651 5890 3308

with taper groove for Lock Plate in upward

direction).
