DRIVETRAIN-TA65 Star
47

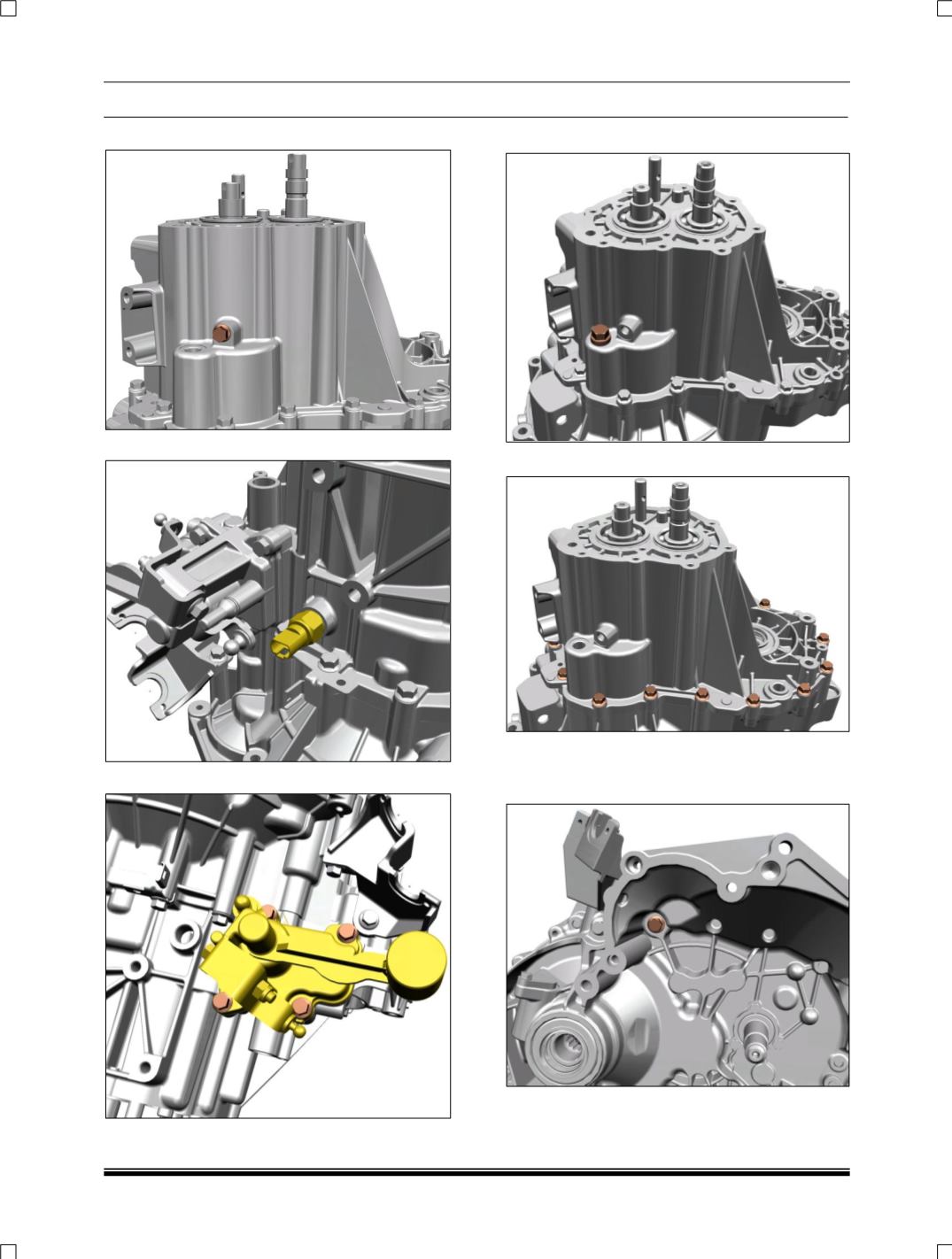

23. Remove the hex flanged bolts on housing.
24. Remove reverse switch.
25. Remove the top cover assembly.
26. Remove the filler plug on the housing
.
27. Remove the hex flanged bolts on the housing
.
28. Rotate the transaxle upside down. Remove
the hex flange bolts provided at clutch
housing.
