DRIVETRAIN-TA65 Star

42

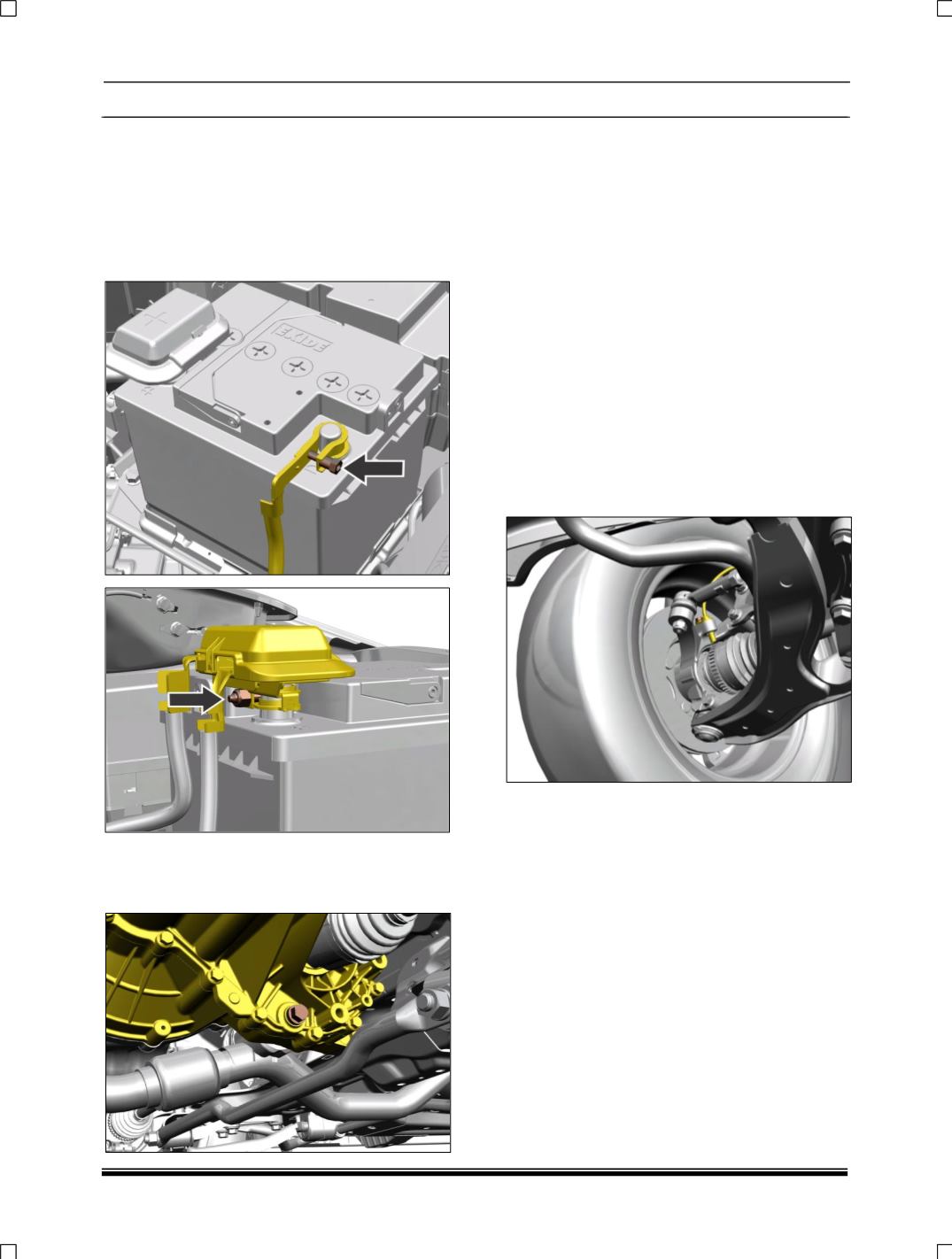

4.7. I. REMOVAL OF TRANSAXLE FROM

VEHICLE:

Position the vehicle properly on the two post lift

and loosen the front wheel nuts. Disconnect the

battery terminals.

1. Remove the battery connection and also

remove the battery tray.

2. Lift the vehicle on using two post lift and

remove the front wheels.

3. Drain the Transaxle oil.

4. Remove the air filter assembly.

5. Disconnect power steering pressure line and

its mounting over transaxle.

6. Remove ball joint (steering rack) from steering

knuckle from both sides.

7. Disconnect gear shifter cables.

8. Loosen mounting bolts of clutch housing.

9. Remove the cooling module of the vehicle

(Refer Remove and Re-fitment of cooling

module in engine).

10. Remove fuel line supporting bracket from

clutch housing.

11. Disconnect clutch release cable from clutch

release lever.

12. Support engine suitably using engine lifting

crane.

13. Disconnect ‘C’ mount bracket.

14. Disconnect wheel speed sensor connection

for ABS application (If applicable).

15. Disconnect vehicle speed sensor connection

from transaxle for non-ABS application (if

applicable).

16. Disconnect dummy cap for ABS application.

17. Disconnect electrical connections of Reverse

Light switch. Ensure to release wiring harness

from below clutch cable and clutch actuating

lever.

18. Disconnect the knuckle lower arm ball joint.

19. Swing out both drive shafts from transaxle

and place it suitably alongside.

Do not pull drive shaft excessively as the

plunge joint will come out of housing and

damage the boot Pry. Plunge joint housing for

taking out joint out of splines. Do not place the

CV drive shaft on rough / uncleaned surfaces.

This might damage the drive shaft boot.

20. Loosen and remove B Mount nut.

21. Remove ‘B’ mount rubber pad.
