DRIVETRAIN-TA65 Star
44

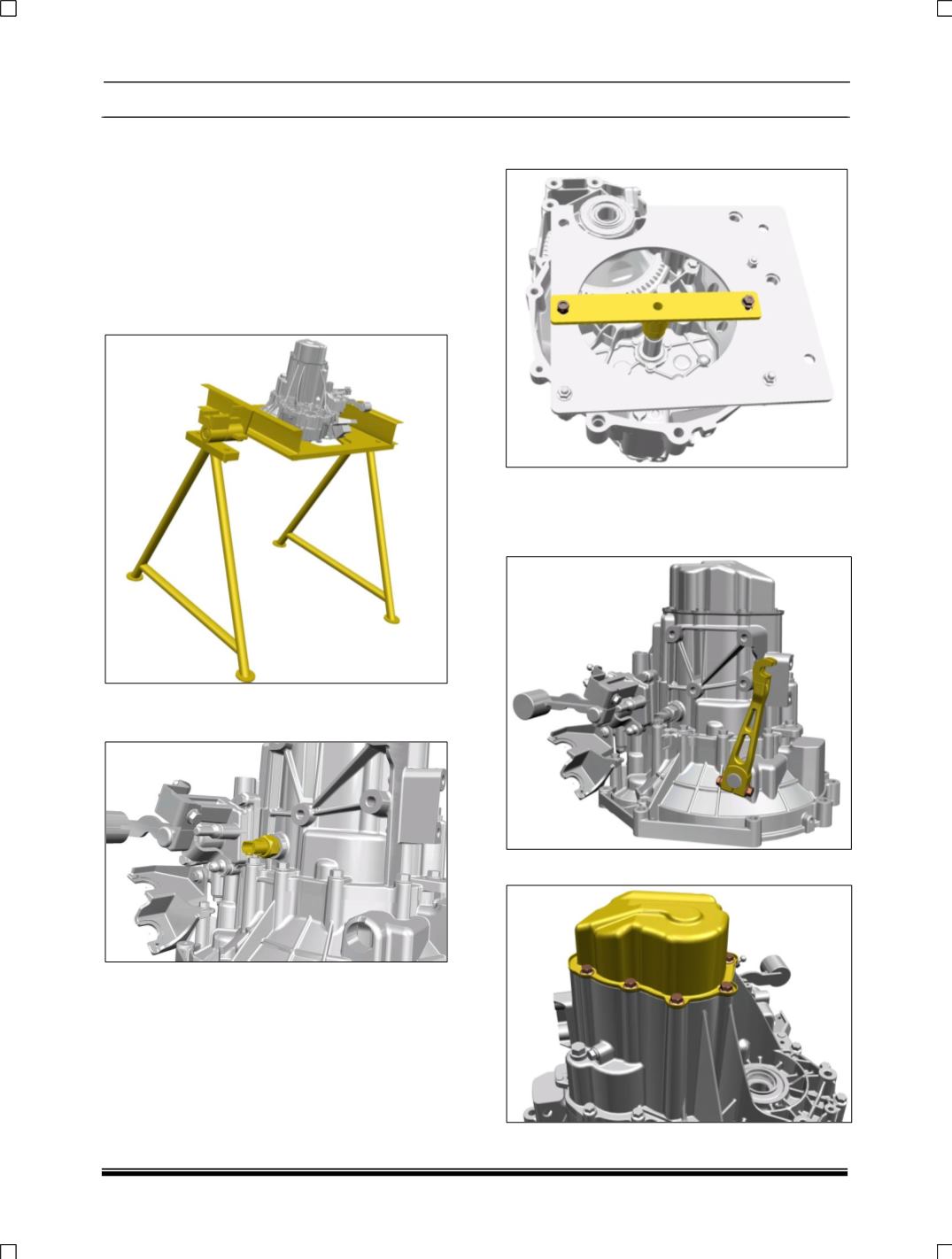

4.7. J. TRANSAXLE TA65 STAR (ON BENCH)
DISASSEMBLY:
1. Ensure that oil is drained completely from the
transaxle before mounting on the work stand.
2. Fix the mounting plate (2702 5890 2610) on
work stand 2573 5890 3701 (19a) by using
hex bolt in 3 holes of 14mm dia. on the
mounting plate.
3. Mount transaxle face on mounting plate and fix
it by three hex bolts of M10 size.
4. Remove assembly reverse light switch.
Remove the ‘B’ mount bracket if required.
5. Turn the table by 90
0
.
6. Lock input shaft using adapter 2702 5890
2611
.
7. Turn back the table by 90
0
.
8. Remove hex flanged screw holding release
lever on to release yoke and take out release
lever from release yoke.
9. Remove rear cover.
