TIAGO

1.05L REVOTORQ ENGINE

F. FUEL PREESURE REGULATOR

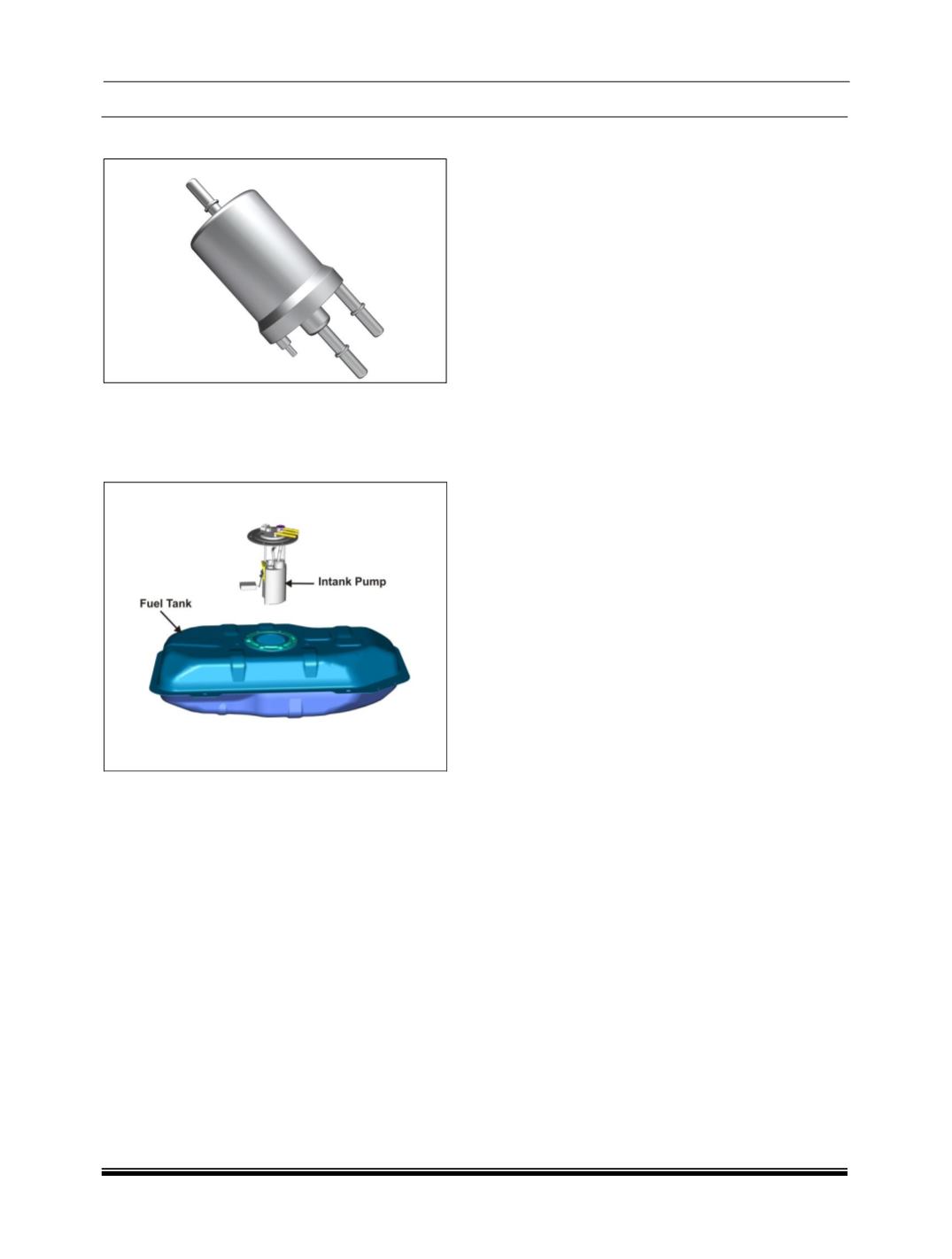

The main function of the Fuel Pressure

Regulator is a device that maintains fuel at a

specified pressure.

G. FUEL TANK AND FUEL TANK UNIT

The Fuel tank assembly consists of the

fuel tank and the Intank pump. The fuel tank is

used to store the fuel.

The Intank pump consists

of float and a sensor. Fuel level sensor assembly

provides the signal to indicate the fuel level in the

tank. As the float arm assembly moves with

respect to the fuel level in tank, resistance at

sensor varies accordingly.
