1.05L REVOTORQ ENGINE
84

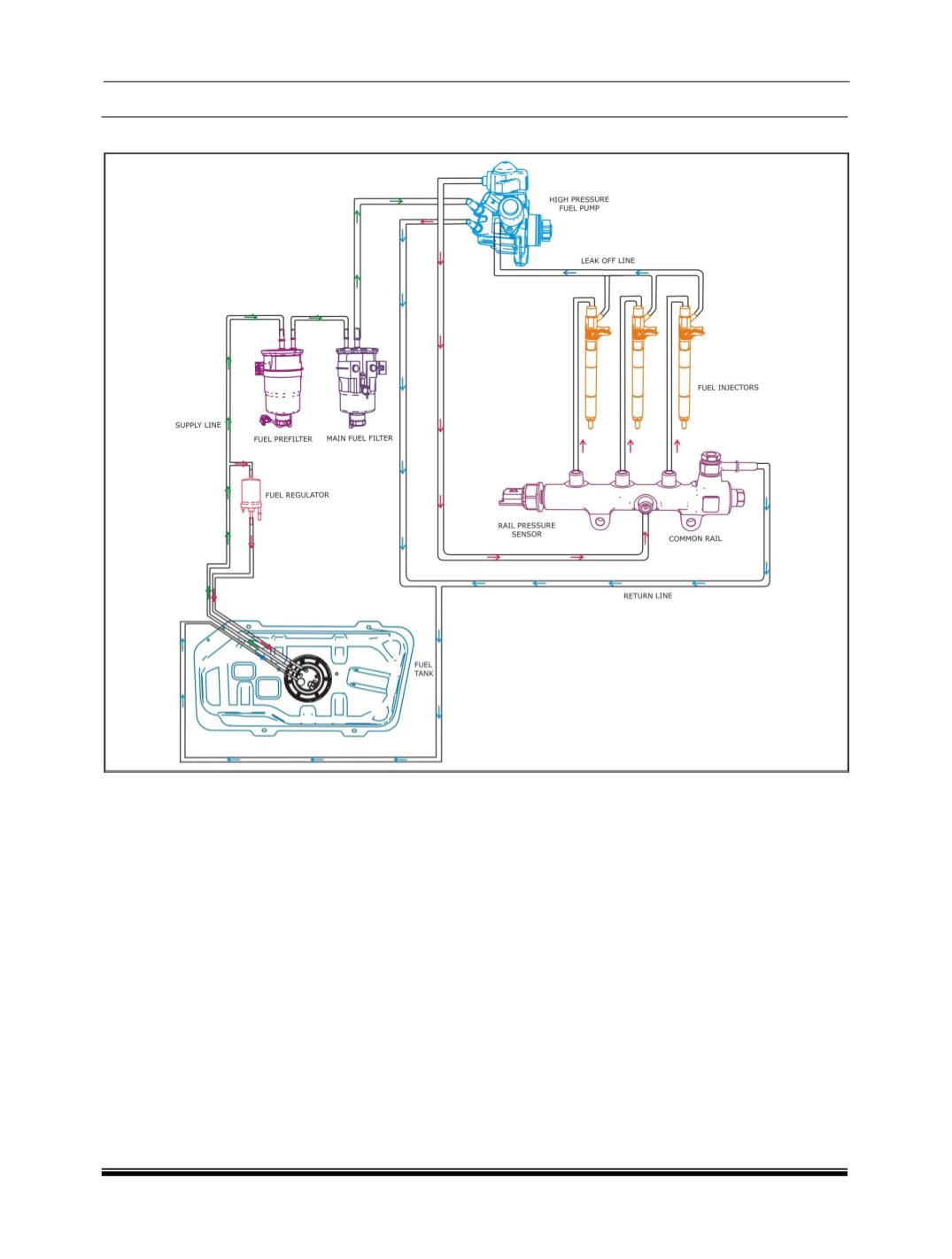

Fuel System Schematic Layout :
The Fuel system consists of the following compo-
nents.
1. Injector.
2. High Pressure Pump.
3. Common Rail
4. Fuel Pre Filter
5. Main Fuel Filter.
6. Fuel Regulator
7. Fuel tank with tank unit.
