TIAGO

1.05L REVOTORQ ENGINE

F. BLOW-BY / CRANKCASE VENTILATION SYSTEM :

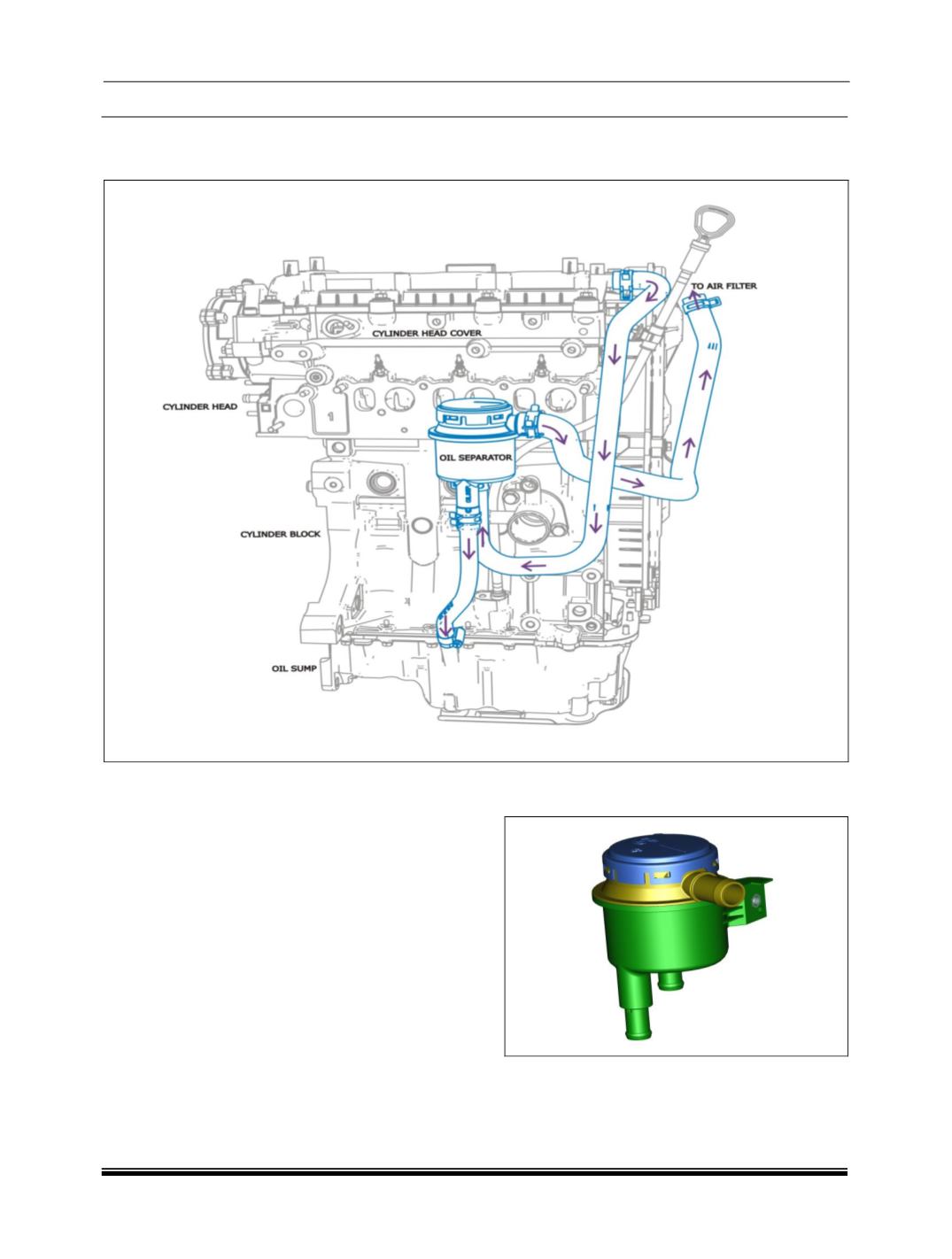

Blow By Circuit Schematic Layout :



Description :

In order to reduce the blow by gas emis-

sion, the blow by gas is directed to the oil separator

which separates the oil from the blow by gas and

allows the air to pass to the air filter and oil to the

sump.

Blow by gases are drawn from cylinder

head cover and crankcase.

The formation of excess blow-by can form

sludge and acids. The sludge can clog oil lines and

starve the lubrication system.

The blow-by system consists of the follow-

ing components.

1. Oil Separator and hoses

Components :

A. Oil Separator :

The oil separator separates oil from the

blow by of the engine and sends it back to engine

oil sump. The remaining air and other gases are

sent to the inlet manifold.
