TIAGO

1.05L REVOTORQ ENGINE

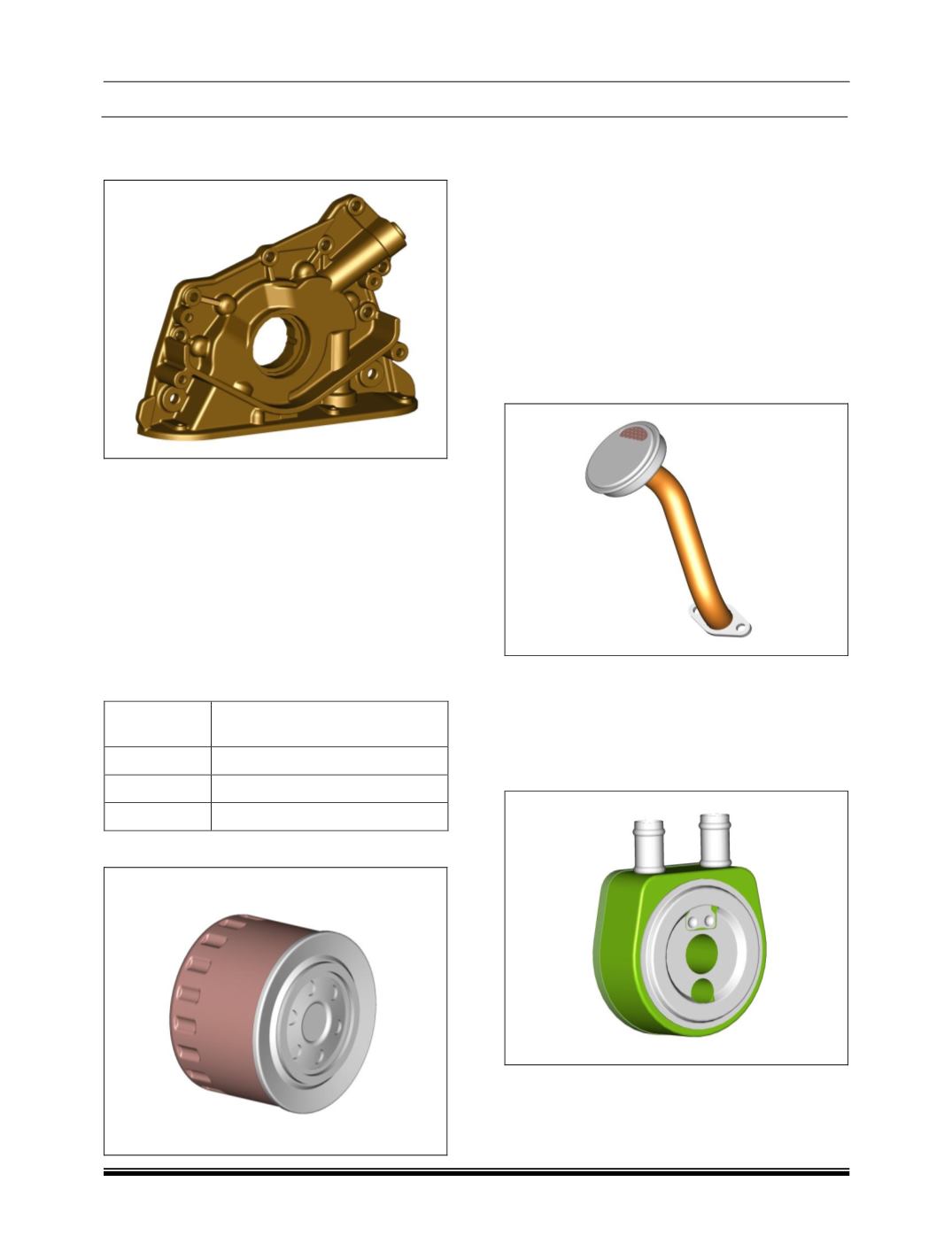

Components :

A. Oil Pump :

The oil pump is a simple centrifugal pump

driven by crankshaft, through a chain drive.

The main function of the oil pump is to cir-

culate oil through the engine movable components.

It sucks the oil from the oil sump through a strainer

which prevents entrance of any particles into the

pump, and supplies to the oil gallery.

To keep the oil pump from building up too

much pressure, a relief valve is also fitted to the oil

pump.

Oil Pump Specifications:

Pump Speed

(in RPM)

FLOW RATE IN LPM (Min) AT

3 bar BACK PRESSURE

800

1700

4000

B. Oil Filter :

The oil filter used is a

“SPIN ON TYPE”

fitted to the oil cooler.

The main function of oil filter is to filter all

contaminants that get ingested into the engine,

along with traces of worn out metals from bearings

and other internal parts.

The oil enters the oil filter under pressure

through the holes on the perimeter of the base

plate.

The oil then passes through the filter ele-

ment where it is "cleaned", and then flows to the

central tube and back into the engine, oil gallery.

C. Oil Strainer :

The oil strainer is fitted to the oil pump,

through which the oil is drawn from oil sump and

supplied to the oil gallery. The strainer acts like a

filter and blocks the contaminants from entering the

oil pump.

D. Oil Cooler :

Oil cooler is heat exchanger which uses

coolant to reduce the temperature of oil coming

from the oil pump. It is mounted on the oil filter

bracket.
