1.2L REVOTRON ENGINE
130

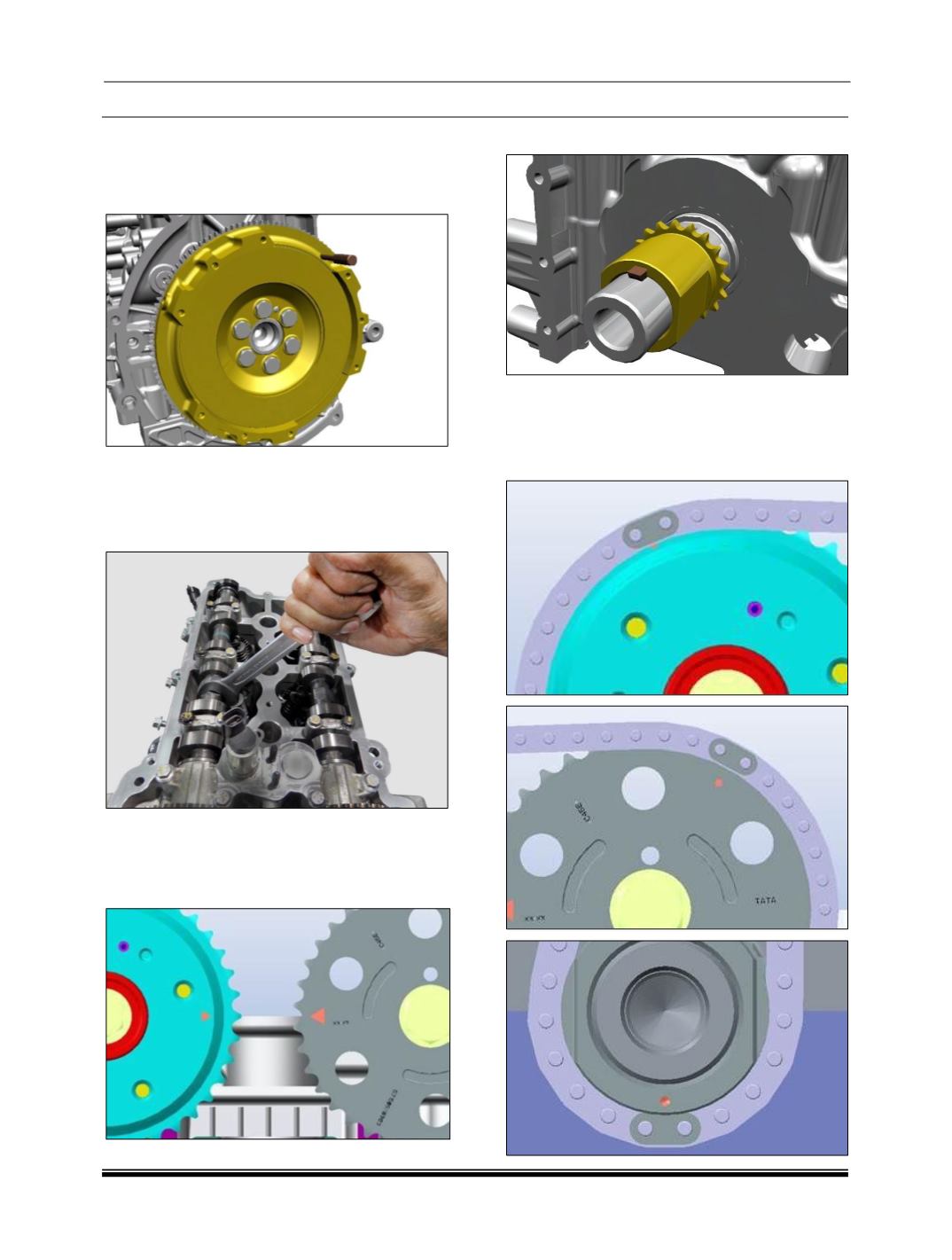

V. Assembly of Engine Timing Chain
1. Ensure Camshaft lobes are in correct position
(refer camshaft assembly on head).
1. Ensure flywheel locked in TDC position
2. Soft tighten the VCT and sprocket on
respective cams with locating dowel.
3. With help of spanner slightly rotate both
camshafts to match the arrow mark on VCT
and sprocket as shown.
2. Soft tighten the VCT on intake camshaft and
exhaust sprocket on exhaust Camshaft with
locating dowel and bolts as shown along with
Camshaft Sensor Plate. (Ensure the direction
of the arrows opposite to each other.)
3. Lock the crankshaft sprocket by using key.
4. Now place the chain over VCT, exhaust
sprocket and crankshaft sprocket in such a
way that the 3 copper color links of chain
matches with the dimple marks of all the 3
sprockets respectively as shown.
