10. Remove the chain / belt after engine mounts

are secure.

11. Install the left and right driveshaft assemblies.

12. Connect the gearshift linkage, clutch cable to

the engine and transaxle.

13. Connect the engine wiring harness.

14. Connect the cooling system reservoir hoses.

Verify the cooling system drain is closed on

the radiator. Install the cooling system hoses

to the engine, radiator and heater core.

15. To connect the exhaust front pipe tighten the

flange near Catcon and connect at rear end.

16. Install the air filter assembly and intake system

hoses to the engine.

Connect the vacuum hose connected between

brake booster to vacuum pump.

17. Connect all the hoses connected between

radiator and engine.

18. Connect the fuel lines to the engine.

19. Install the Battery Plate, Battery and ECU.

20. Connect the engine wiring harness connection

with ECU.

21. Add the appropriate quantity of Engine oil,

Transaxle oil and coolant with respective

systems.

22. Connect the battery positive cable and then

the battery negative cable.

23. Crank the engine several times without

allowing the vehicle to start. This allows the oil

and coolant to flow through engine.

24. Start the engine and verify the oil pressure

light on the instrument cluster goes out. Stop

the engine immediately if the light fails to

extinguish.

25. Allow the engine to run for several minutes,

checking for fluid levels and leakage.

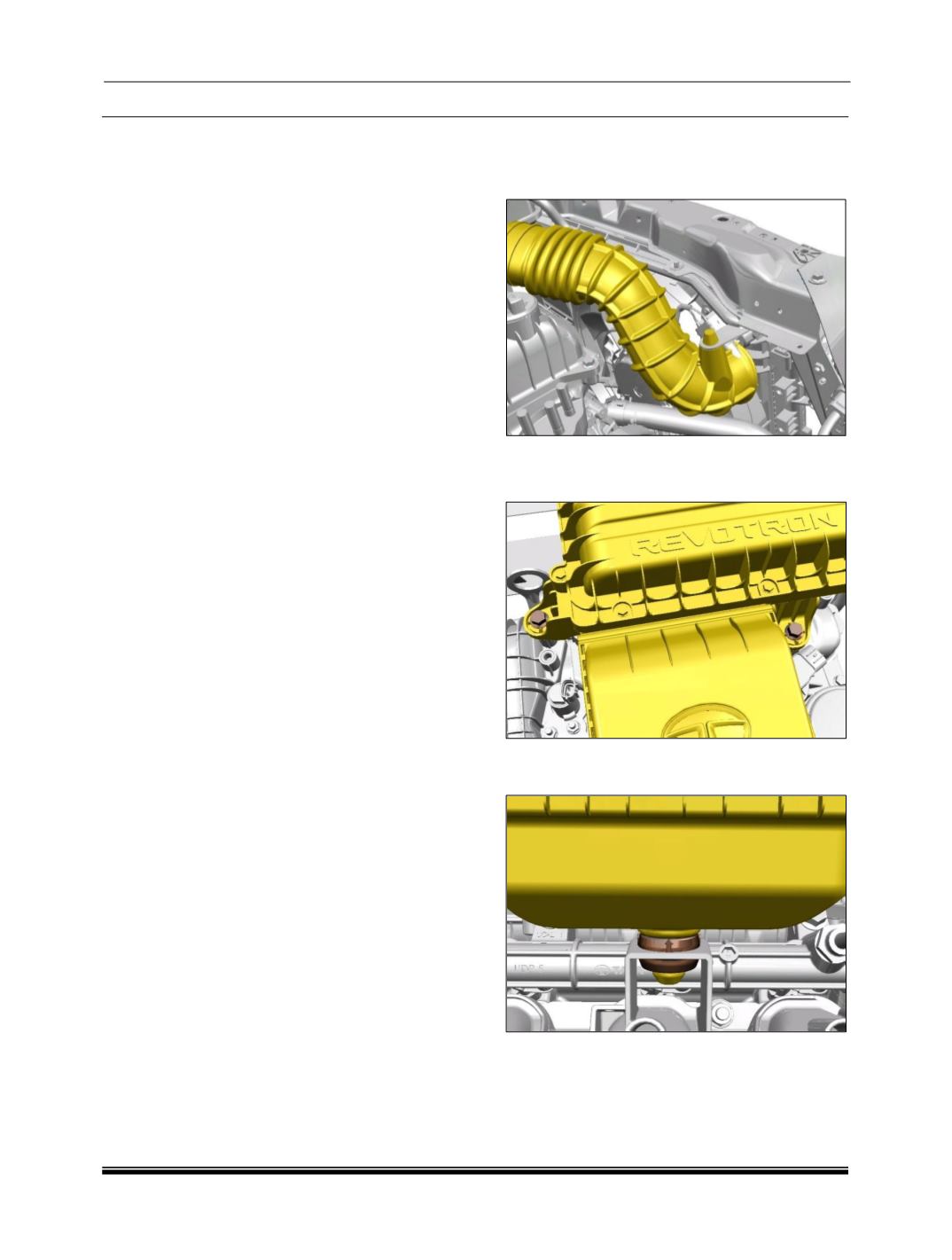

B. AIR FILTER ASSEMBLY REMOVAL

1. Remove the snorkel from snorkel mounting

bracket.

2. Disconnect the all hose clips.

3. Remove the Air filter mounting bolts (2 nos.).

4. Remove the air filter from grommet in upward

direction

and remove out from vehicle.

FITMENT

For fitment follow the reverse order of removal.
