TRANSAXLE (NANO AMT)
80
3. COMPONENT IDENTIFICATION:
NOTE:
Only identification of components that can
be wrongly assembled due to their similar
construction is given in this section.

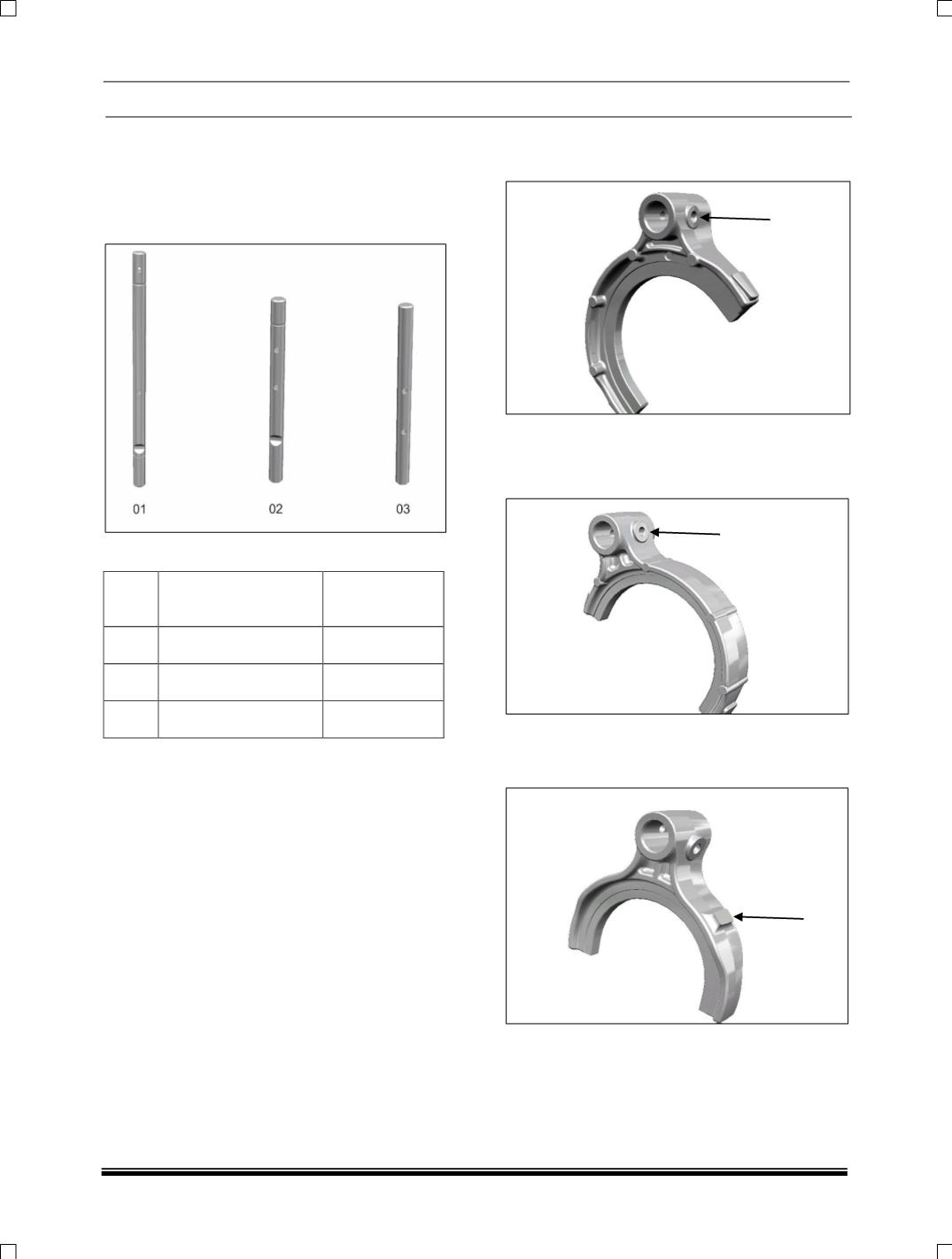

A. SHIFTER SHAFTS:
SL
No
Shifter Shaft
No. of Dowel
Holes
1
Fifth – Reverse
02
2
Third - Fourth
02
3
First - Second
02
B. SHIFTER FORKS (DOGS):
01. First and second gear shifter fork:
Identification mark: Locating hole is at the extreme
corner of the boss.
02. Third and fourth shifter fork:
Identification mark: Locating hole is in the middle
of the boss.
03. Reverse and fifth shifter fork:
Identification mark: Stopper on lay shaft side.
