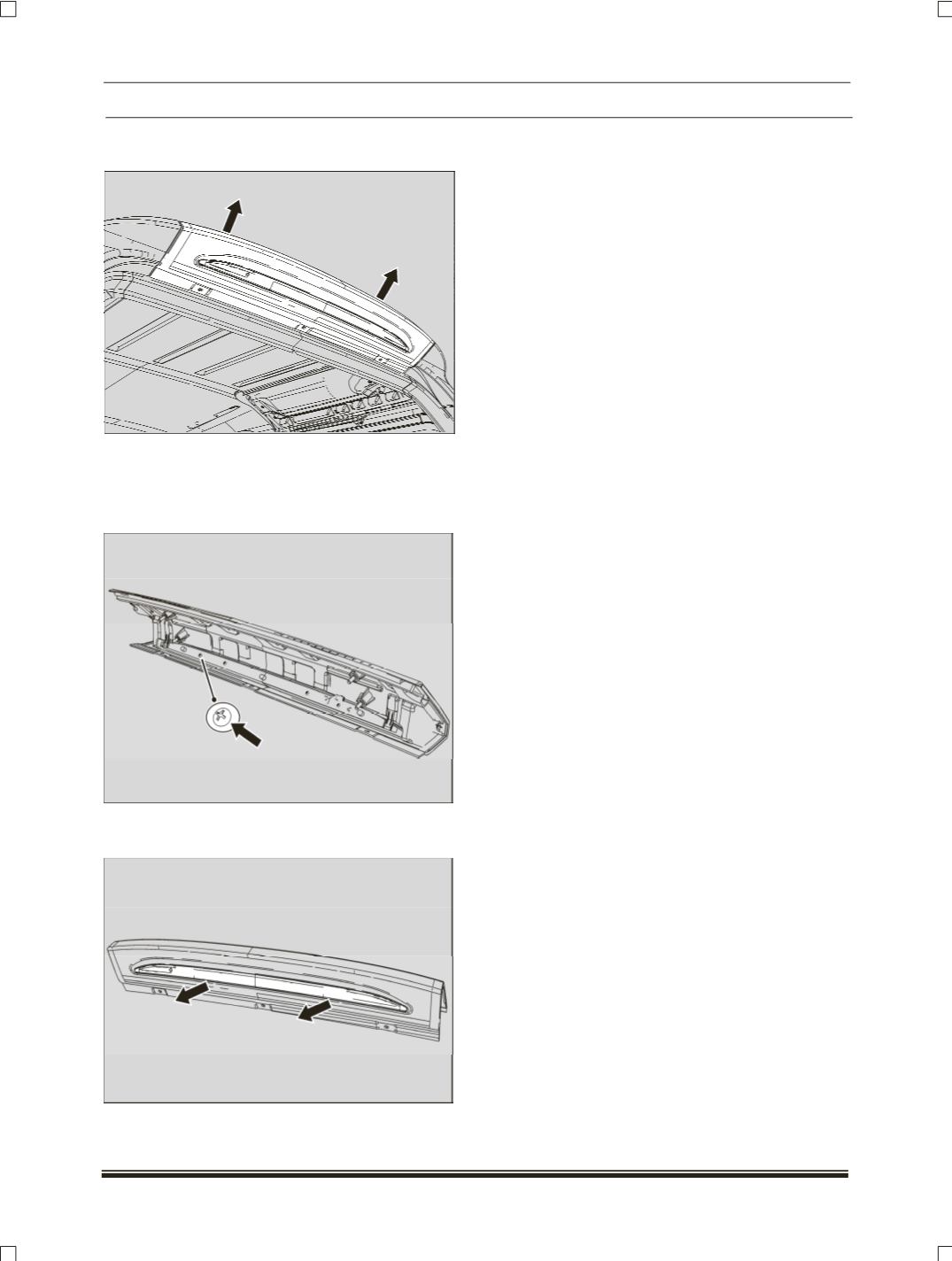

6.Pry out the spoiler center high mounted stop
lamp assy.
7.Disconnect the electrical connection and Washer
jet hose.
8.Remove the four mounting screw of center high
mounted stop lamp on the spoiler.
9.Pry out the center high mounted stop lamp form
spoiler assy.
REFITMENT:
1.Tighten the four mounting screws of high
mounted stop lamp with spoiler assy.
Tightening torque of screws – 0.6 Kgm
2.Connect the electrical connection and Washer jet
hose
3.Locate the Spoiler assy with center high
mounted stop lamp to rear header outer
4.Tighten the four mounting nut of Spoiler assy
with center high mounted stop lamp ..
Tightening torque of screws – 0.6 Kgm
5.Fit the roof linear (
Refer body section
).
6.Tighten the three mounting screw of spoiler
assy.
7.Fit the upper tailgate trim.
