SAFARI STORME

ELECTRICAL

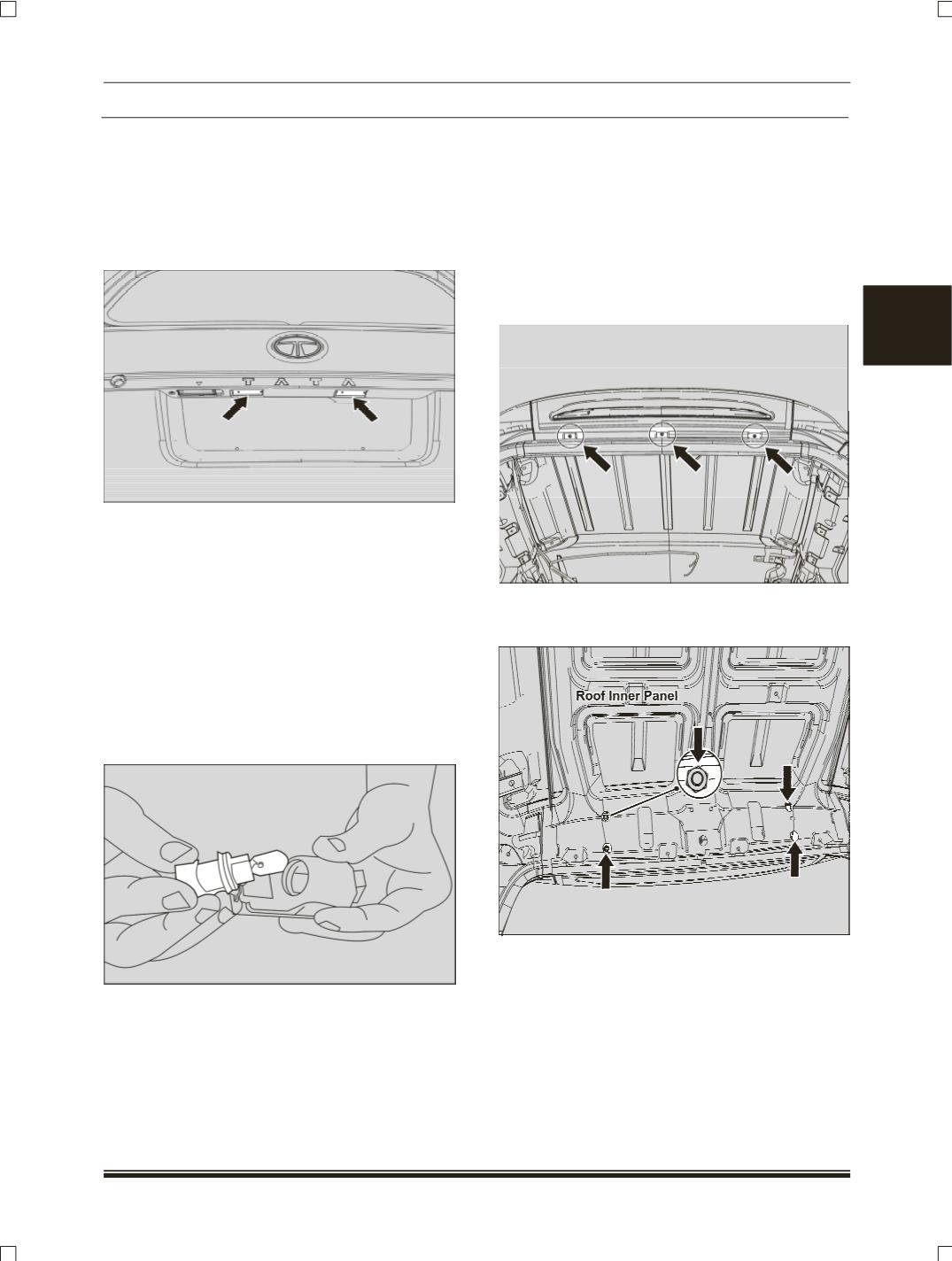

8.4.8 REGISTRATION PLATE LAMP

It consists of two bulbs of ratting 12V, 5W.

It is fitted on tailgate garnish.

REMOVAL:

1.Pry out the lamp assembly from the cutout

provided on the tailgate garnish.

2.Disconnect the electrical connection.

3.Take out the lamp.

REFITMENT:

1.Connect the electrical connection.

2.Fit the lamp into the cutout provided on the

tailgate garnish.(

Snap fitted

)

BULB REPLACEMENT PROCEDURE:

1.Remove the reg. plate lamp.

2.Rotate the bulb holder in anti-clockwise direction

and remove the bulb with holder.

3.Remove the bulb from the bulb holder and

replace with new one.

4.Fit the bulb with holder by rotating in clockwise

direction.

5.Fit the reg. plate lamp.

8.4.9 CENTER HIGH MOUNTED STOP LAMP

This lamp is LED type. It is mounted on the

rear header outer panel of the roof.

REMOVAL:

1.Open the tailgate.

2.Remove the upper tailgate trim.

3.Remove three mounting screws of the spoiler

assembly.

4.Remove the roof linear (

Refer body section

)

5.Remove the four mounting nut of spoiler assy.
