ELECTRICAL
8.4.10 PUDDLE LAMP
It consists of bulb of ratting 12V, 5W. The
door ajar lamp is fitted on door trim.
NOTE:
Same procedure is applicable for all door
lamps.
REMOVAL:

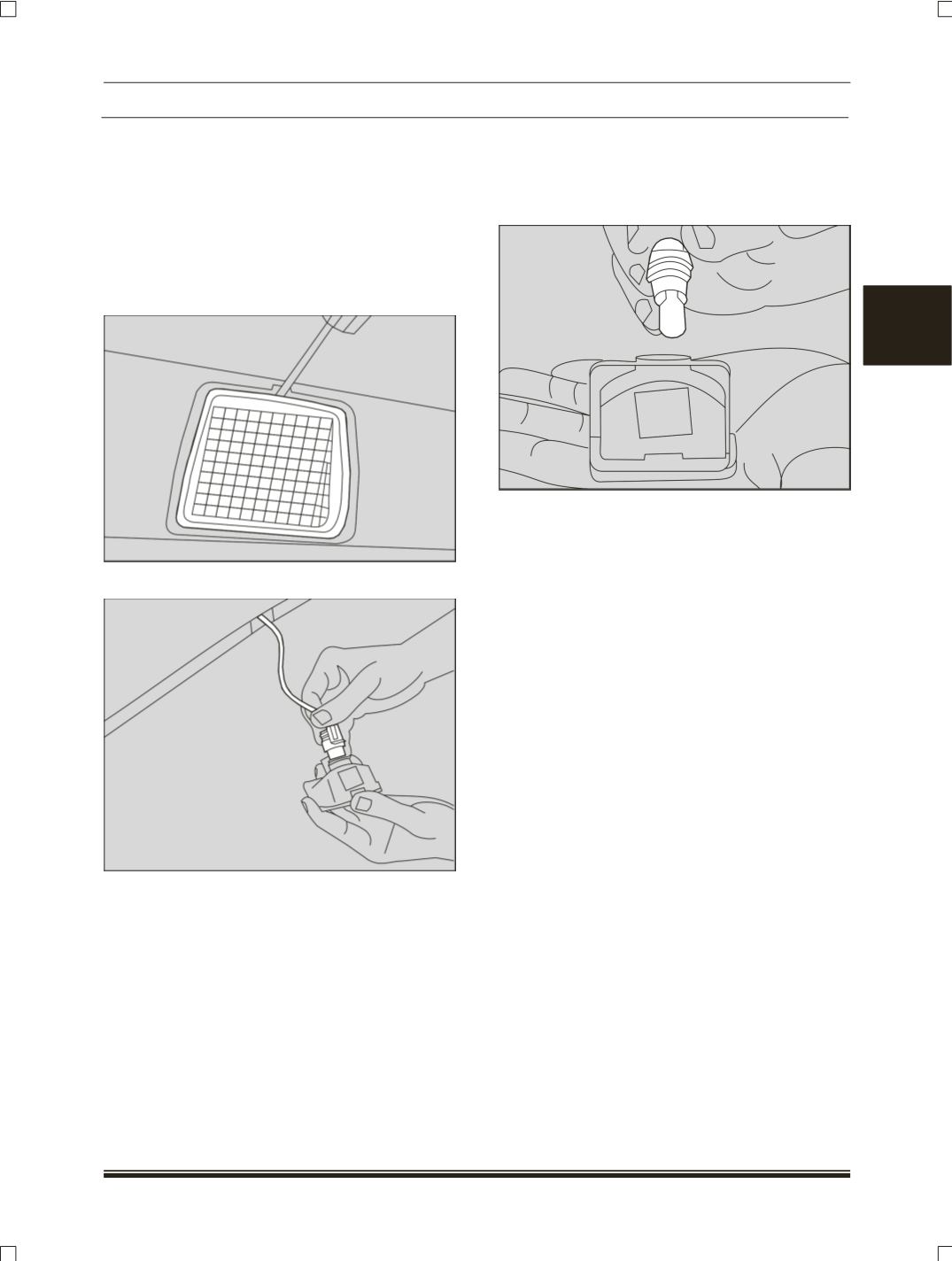

1.Pry out the lamp from the cutout provided on the
door trim.
2.Disconnect the electrical connection.
3.Take out the lamp.
REFITMENT:
1.Connect the electrical connection.
2.Fit the lamp into the cutout provided on the door
trim.(
snap fitted
)
BULB REPLACEMENT PROCEDURE:
1. Remove the door Ajar lamp.
2. Remove the bulb assembly by rotating in anti-
clockwise direction.
3. Take out the bulb and replace with new one.
4. Fit the bulb assembly by rotating in clockwise
direction.
5. Fit the lamp.
