SAFARI STORME

ELECTRICAL

INSPECTION:

1.Check the connectors for any loose terminals or

wires broken at the terminal ends.

2.Check the filaments of the bulb if blown replace

faulty bulb.

REFITEMNT:

1.Connect the electrical connection.

2.Align the lamp with its two locating catcher.

3.Tighten its two mounting bolts.

Tightening torque for bolts – 0.6 Kgm.

BULB REPLACEMENT PROCEURE:

NOTE:

Same procedure is applicable for all the bulbs of

tail lamp.

1.Remove the tail lamp.

2.Rotate the bulb holder in anticlockwise direction

and remove the assy.

3.Take out the bulb from holder and replace with

new one.

4.Rotate the bulb holder in clockwise direction for

fitment.(

Arrow mark provided on the bulb holder

)

5.Fit the lamp.

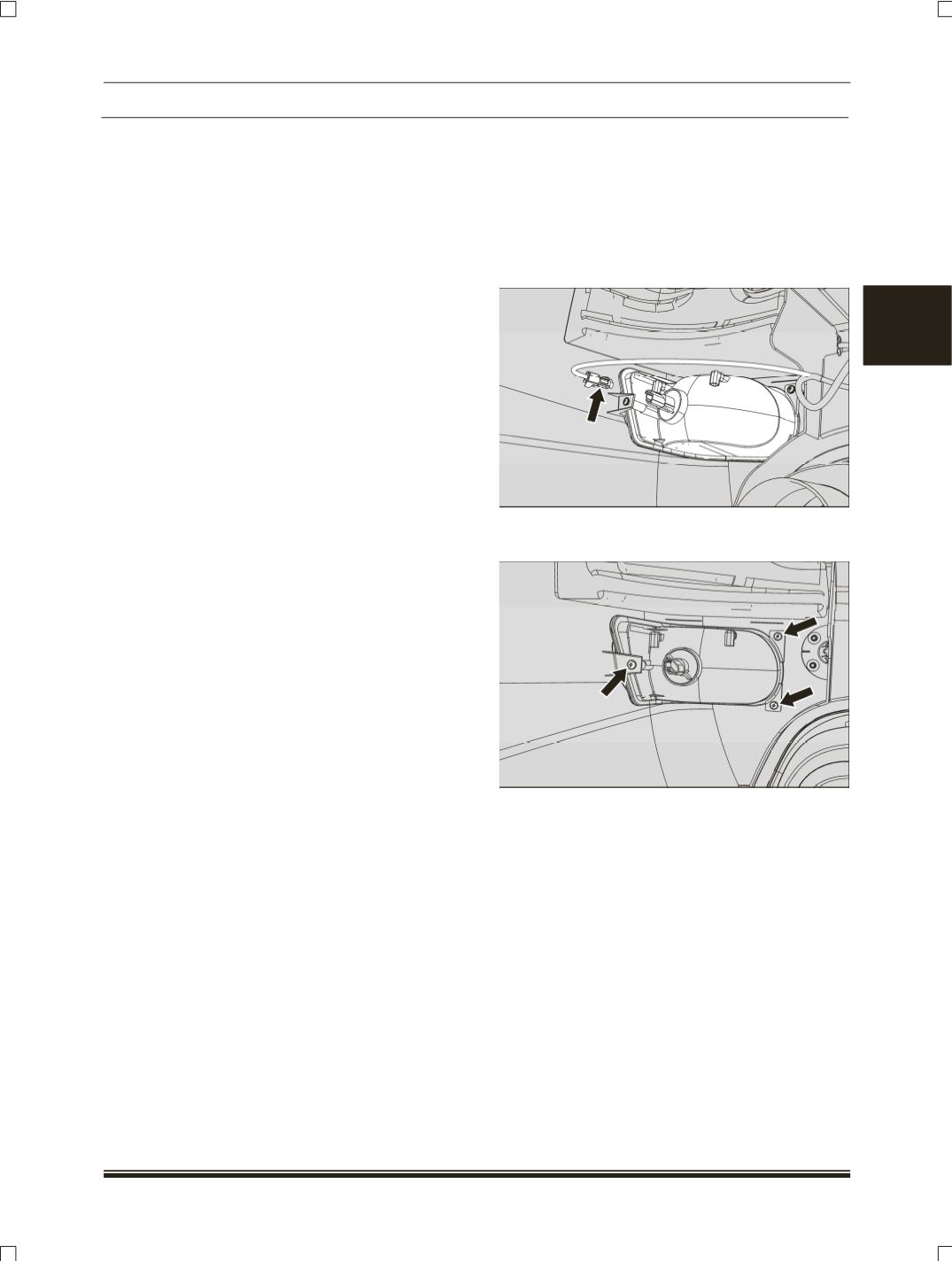

8.4.13 REAR FOG LAMP (

If fitted

)

The fog lamps are located in the lower part

of the rear quarter LH and RH. The bulb used for

the fog lamp function is 12V - 55W.Fog lamp on/off

is done by using master light switch.

REMOVAL:

1.Disconnect the electrical connection of fog lamp.

2.From the back side of rear quarter assembly

remove the 3 mounting screws of fog lamp.

3.Take out the fog lamp.

REFITMENT:

1.Fit the assembly in the cut out on the bumper.

2.Tighten the 3 mounting screws of fog lamp

assembly.

Tightening torque for screws – 0.6 kgm.

3.Connect the electrical connection.
