ELECTRICAL
59
ELECTRICAL
8.5
HORN
The vehicle is equipped with a horn system
consisting of a low tone horn and high tone horn.
The horns are operated by pressing the sides of
the steering wheel cover
(around the Air Bag)
with
the horn symbol. The horns are activated through
a relay located in the engine compartment fuse
and relay box. The circuit is protected by a
dedicated fuse. The horns are always enabled for
safety reasons even with the ignition OFF or the
key is extracted.

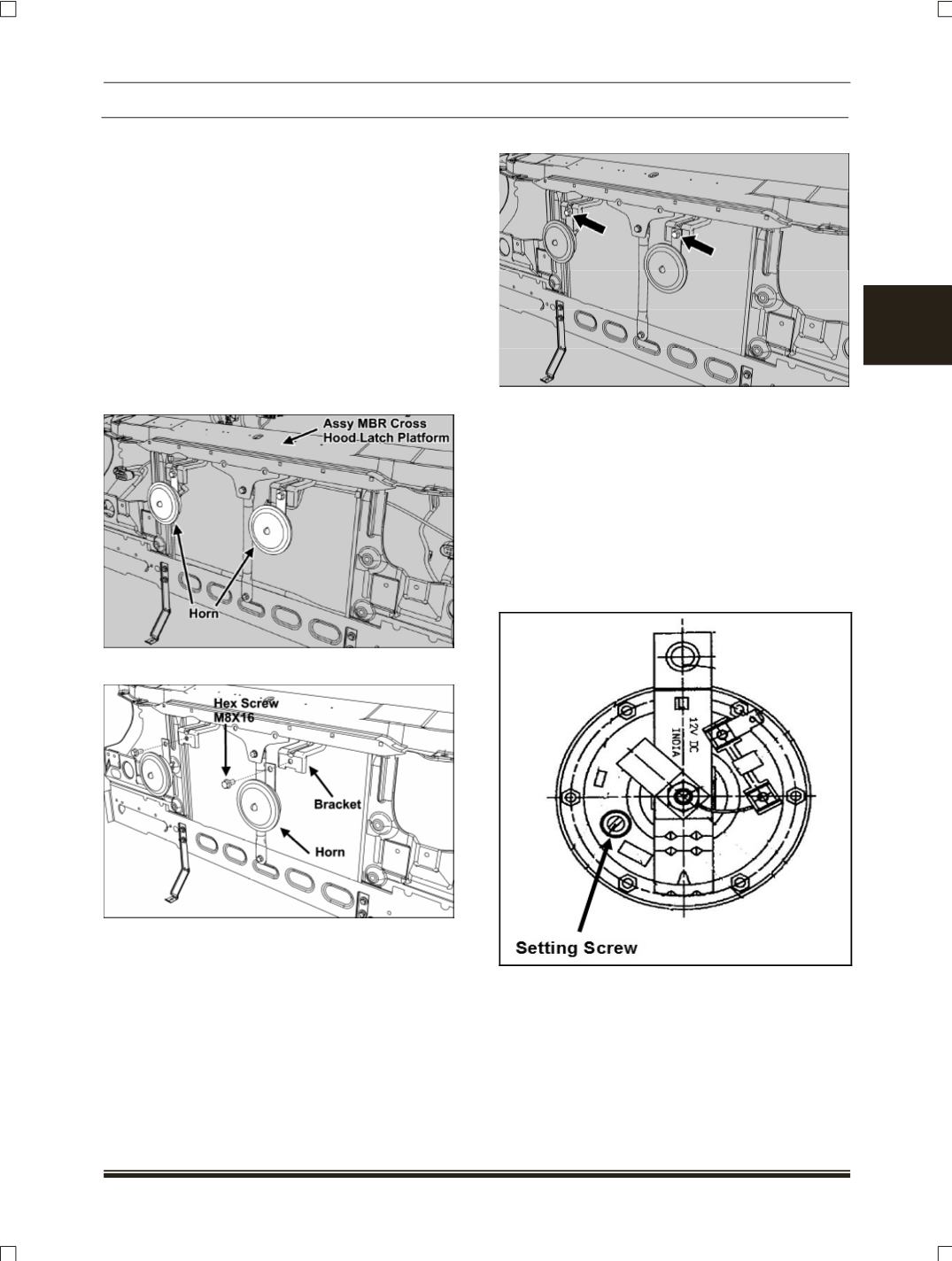

LOCATION:
High tone horn is located on RH and LH side of
Assy. Member hood Cross latch complete.
FITMENT DETAILS:
REMOVAL:
1.Open the bonnet.
2.Disconnect electrical connection.
3.Remove the one mounting bolt of the horn.
4.Take out the horn.
INSPECTION:
Connect the positive terminal of the horn to battery
(+) and negative terminal to battery (-). If a clean
and sharp sound is heard, then horn is OK. If no
sound is heard, check continuity of the horn coil
using a multimeter.
If the coil is OK, check the settings of the setting
screw. Adjust the setting screw till clean and sharp
sound is heard.
REFITMENT:
1.Align the horn to match mounting hole on
assembly cross member lower complete and fit
one mounting bolt.
Tightening torque for bolt – 0.95 Kgm
2. Connect the electrical connection.
