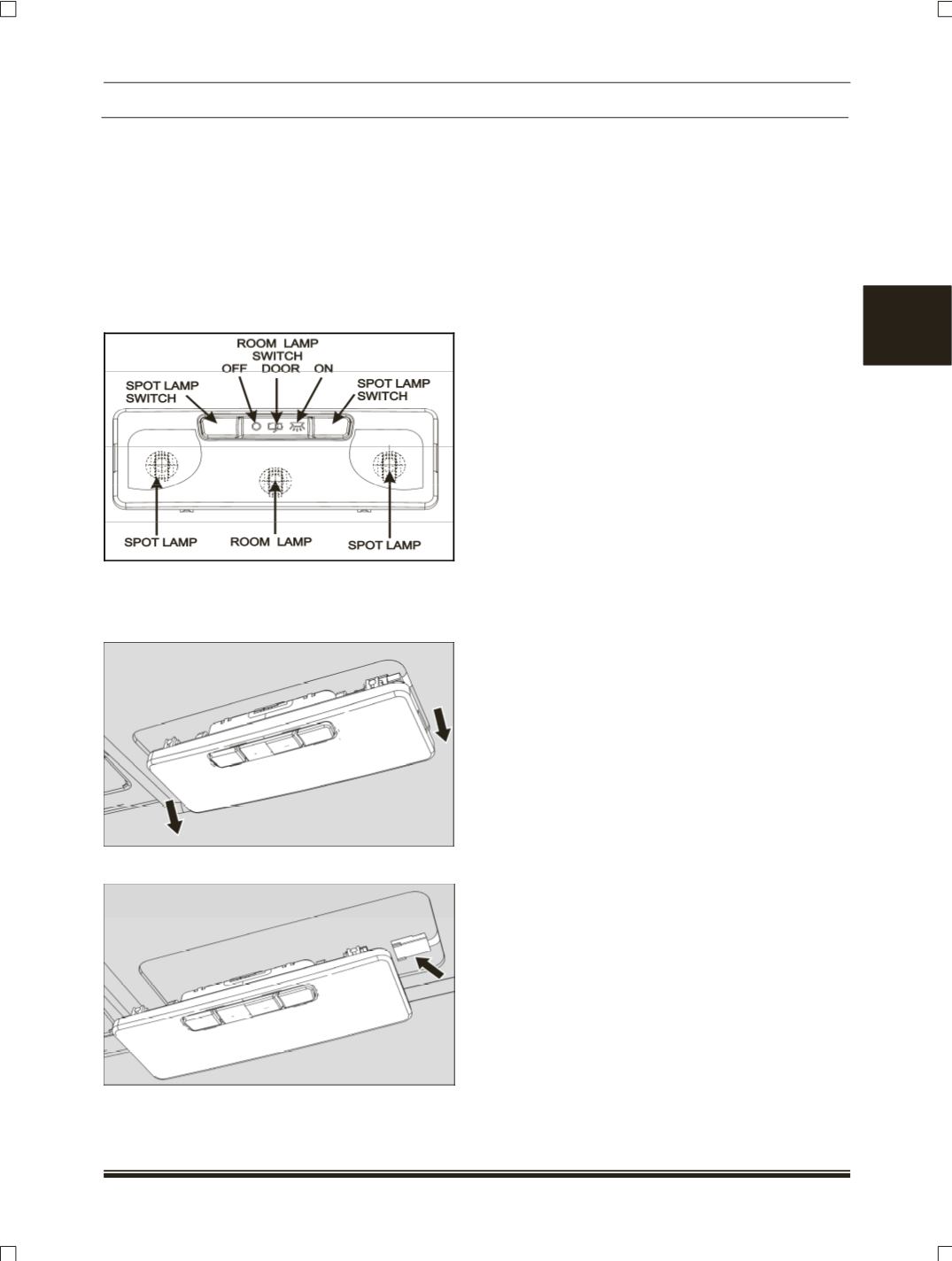

8.4.6 FRONT ROOF LAMP

Front roof lamp is fitted with a three-way

switch. Switch has ON, OFF and DOOR positions.

In the ON or OFF position, the lamp is directly

controlled by the switch.

In the DOOR position, the lamp operation

is controlled directly by the BCM. It consists of 3

bulb of 12 V 5W ratting. These roof lamps also

consist of two spot lamps which are controlled by

individual switch.

REMOVAL:

1.Pry out the roof lamp assembly from the roof

console.

2.Disconnect the electrical Connection.

3.Take out the lamp.

INSPECTION:

1. Check the filaments in the bulb if blown replace

the faulty bulb.

2. Check for damages in the locks area.

1. REFITMENT:

1.Connect the electrical connection.

2.Fit the roof lamp into cutout provided on roof

console.(

snap fitted

)

BULB REPLACEMENT PROCEDURE:

1.Remove the roof lamp.

2.Remove the lens of roof lamp.

3.Remove the bulb and replace with new one.

4.Fit the lens.

5.Fit the roof lamp.
