866 / 1575
ELECTRICAL
46

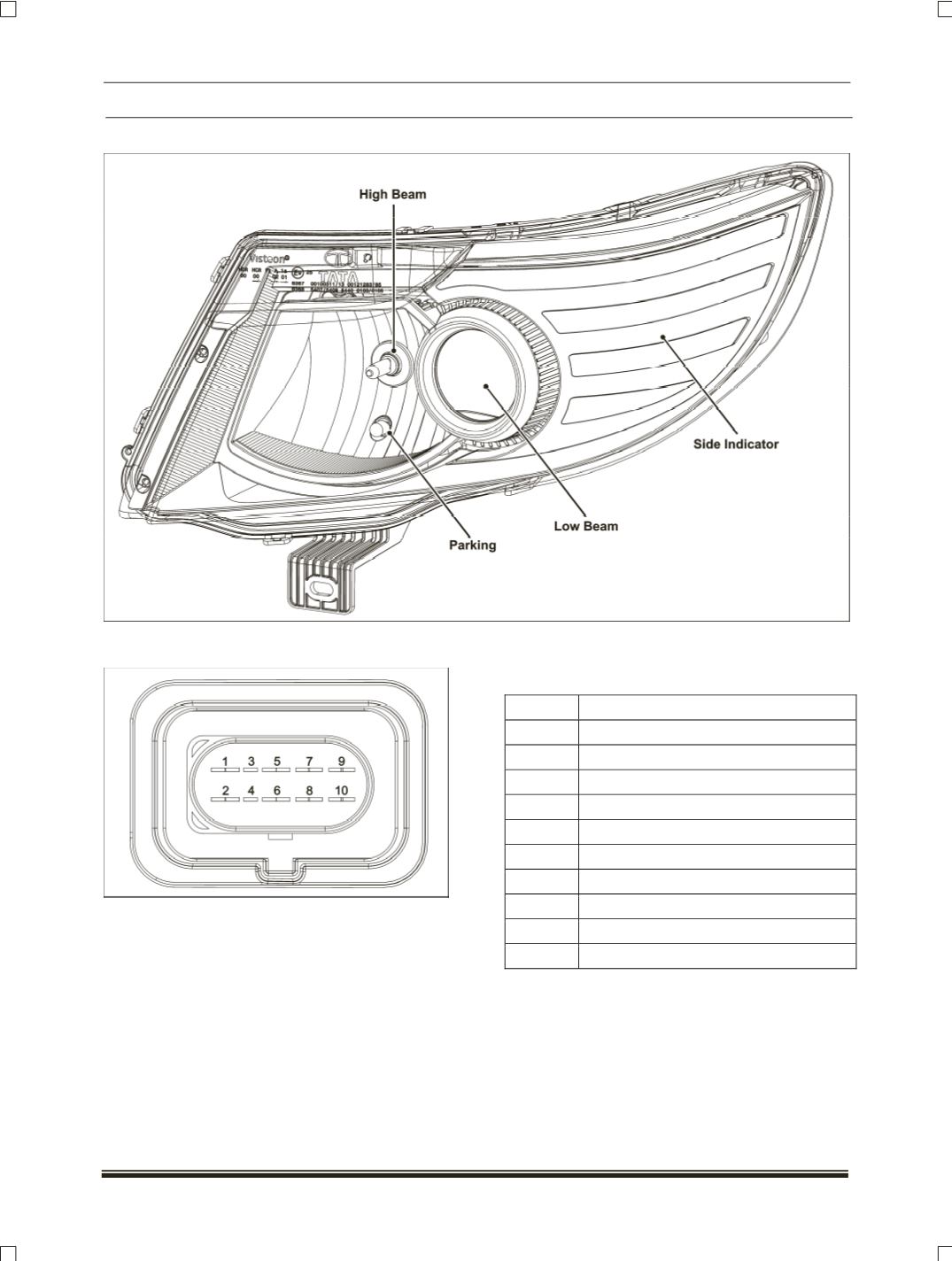

HEAD LAMP VIEW:
CONNECTOR DETAILS:
PINOUT DETAILS:
KNOB CONNECTOR:
PIN NO DESCRIPTION
1
NC
2
NC
2
NC
4
NC
5
Ground Low Beam
6
Ground High Beam
7
Turn
8
Position / Parking
9
High Beam
10
Low Beam
|
|
