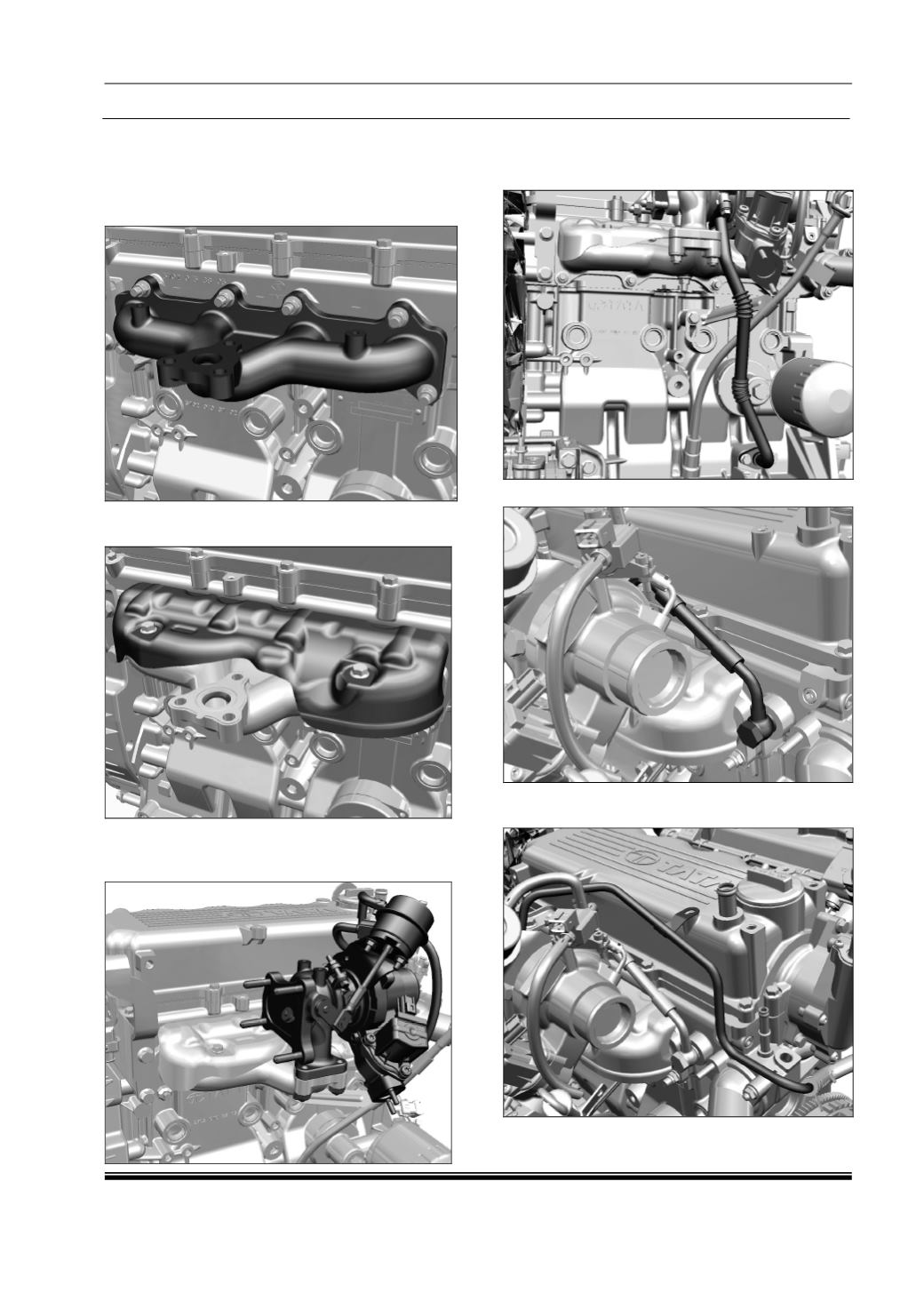

vii. Fitment of Exhaust Manifold and
Peripherals
1. Fit the exhaust manifold along with the gasket
to the engine block and tighten the bolts at
specified torque.
2. Fit the heat shield assembly on exhaust
manifold.
3. Fit the turbocharger to the exhaust manifold
along with gasket tighten the bolt at specified
torque.
4. Fit tube assembly (Turbocharger Oil Return).
5. Fit tube assembly (Turbocharger Coolant Inlet)
6. Fit tube assembly (Water Outlet) to
turbocharger.
