Revotron 1.2T
131

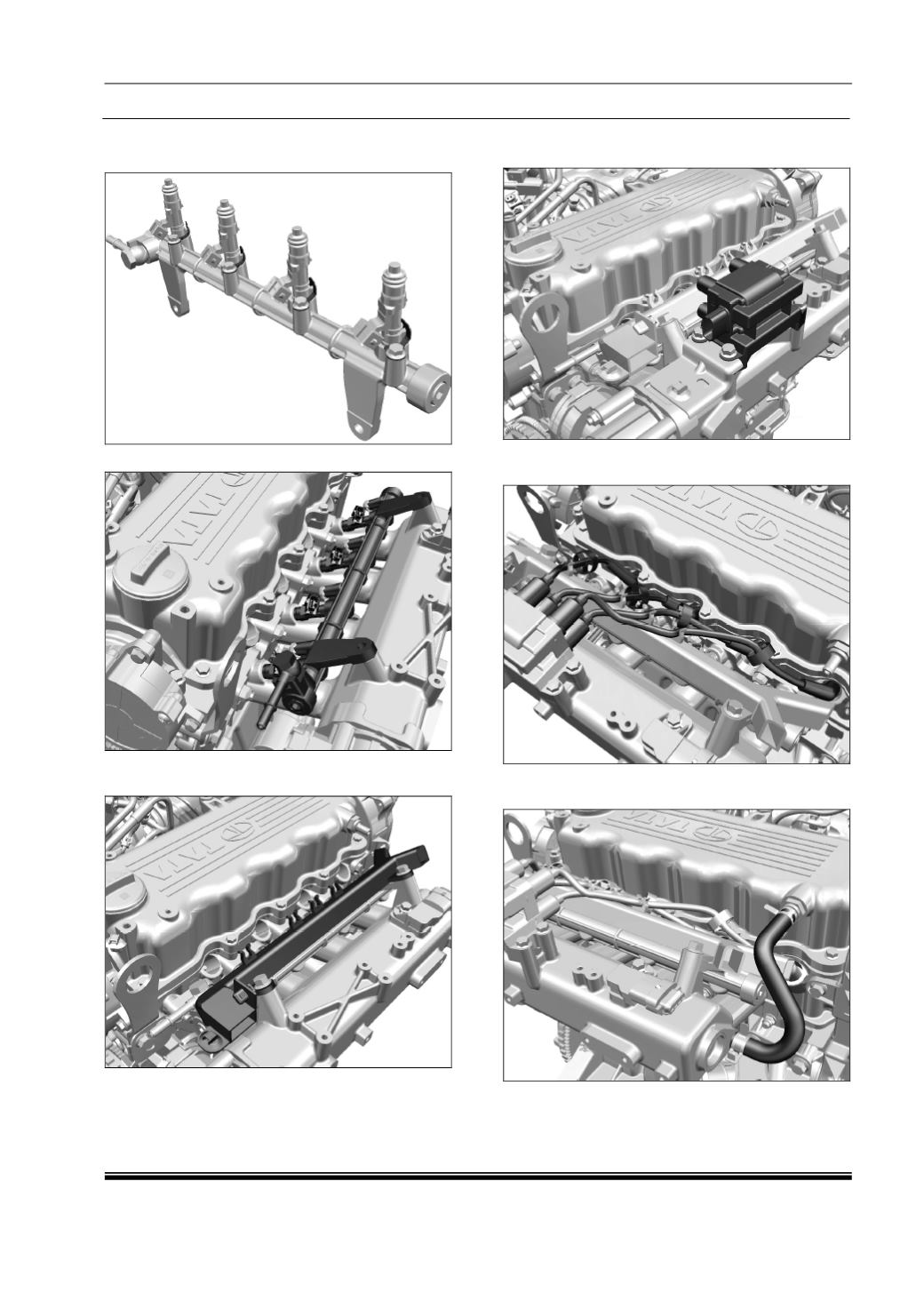

8. Lock the injectors lock screw to specified
torque.
9. Fit the Fuel Rail along with the injectors.
10. Fit Engine Harness Channel to Intake
Manifold.
11. Fit the HT Coil Unit on the Intake manifold
assembly.
12. Fit the HT Coil cables connects between
Spark Plug and HT Coil Unit.
13. Fit the Rubber hose to Head cover NRV to
Intake manifold.
14. Fit the Spring Band Clamp.
