12.22. STEERING WHEEL SWITCHES
FUNCTION:
Steering wheel switches are used t o c o n t r o l
t h e music system operations.
For details ref below table
SWITCH
FUNCTION
POSITION
SW1
VOLUME UP
LH
SW2
VOLUME DOWN
LH
SW3
SEEK UP
LH
SW4
SEEK DOWN
LH
SW5
MODE/PHONE
REJECT/MUTE
LH
SW6
PHONE RECEIVE/PTT RH

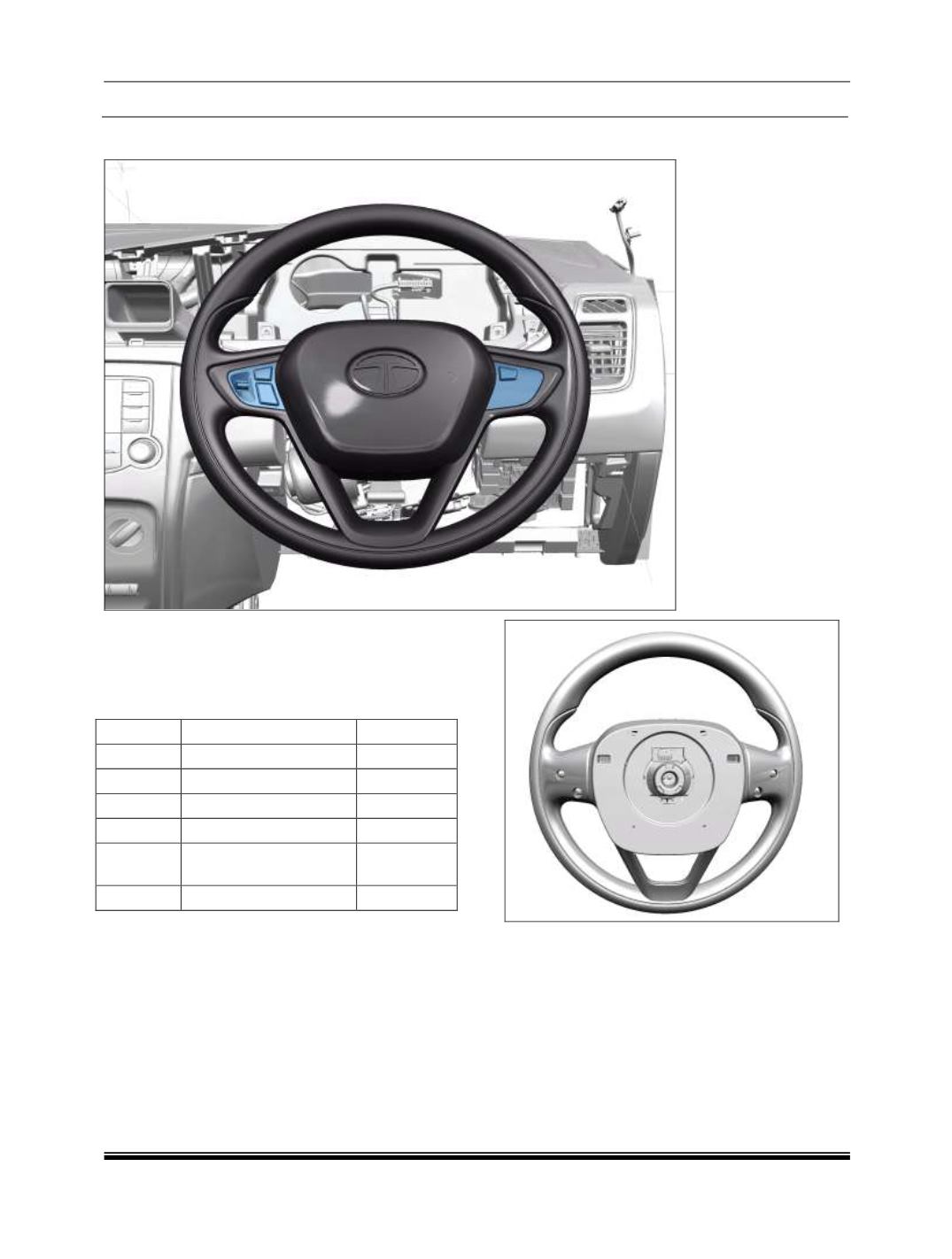

LOCATION:
Fitted on steering wheel LH & RH.
REMOVAL:
1. Remove the steering wheel.
2. Remove the bottom cover of steering wheel.
3. Disconnect the electrical connection of
switches.
4. Remove the mounting screws of both side
switches.
5. Take out the switches.
INSTALLATION:
1. Locate the switches on the steering wheel.
2. Tight the mounting screws of both the switches.
Tightening torque: 2.0 ± 0.5 Nm
3. Fit the bottom cover of steering wheel.
4. Fit the steering wheel.
