KRYOTEC ENGINE
165

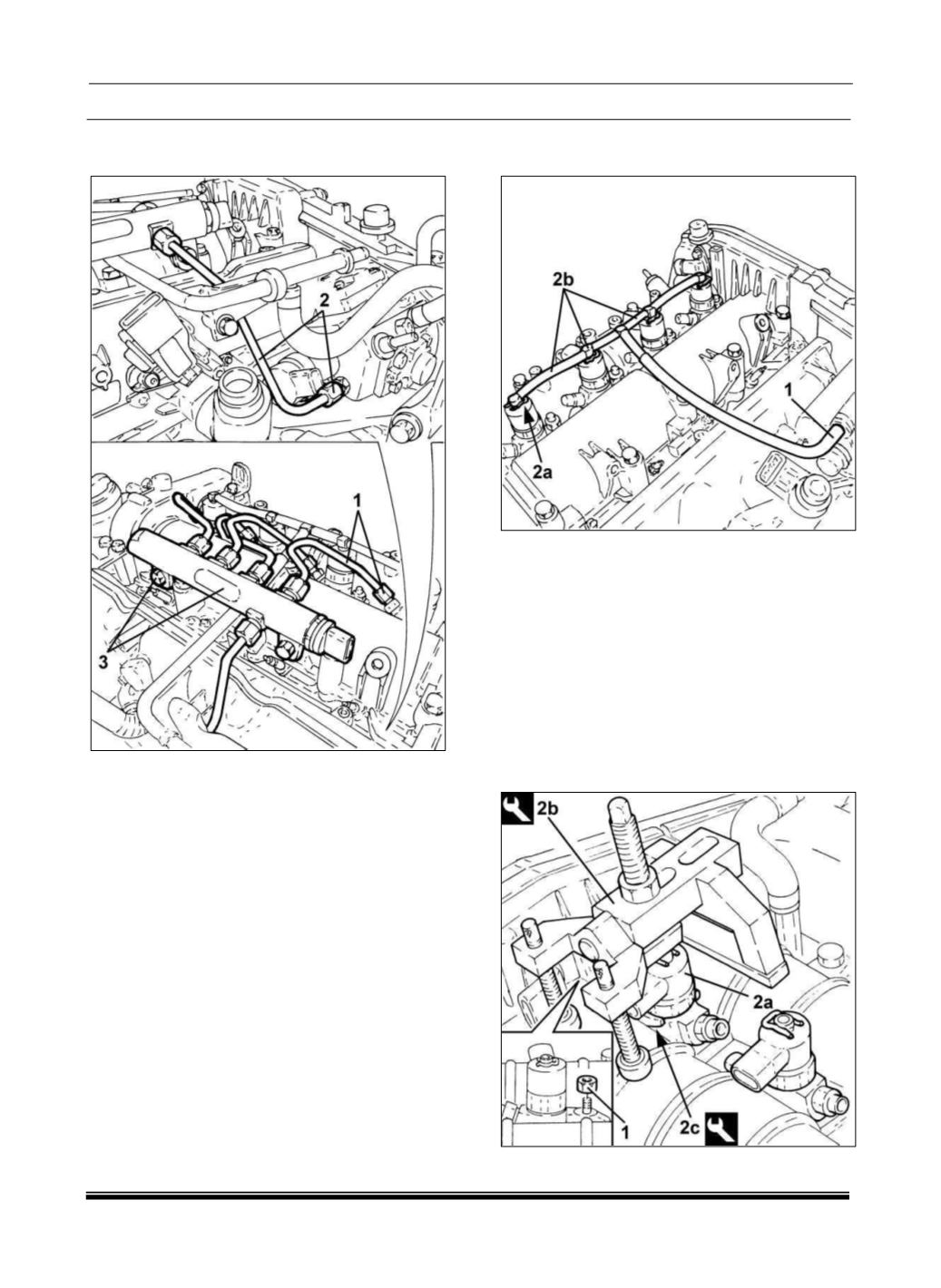

32. Loosen the fittings (1) and the fuel manifold to
fuel injector pipes.
33. Loosen the fittings (2) and the fuel injection
pump to fuel manifold pipe.
34. Remove the bolts (3) and the fuel manifold.
35. Disconnect the fuel injector return line (1) from
the fuel injection pump.
36. Remove the clips (2a), and the fuel injector
return line from the fuel injectors (2b).
NOTE
When installing the fuel injectors, use the
diagnostic tool to register the identification code of
the fuel injectors with the powertrain control
module.
Remove the number 1 fuel injector first, followed by
number 2, number 3 and number 4.
37. Remove the nut (1) from the fuel injector.
38. Remove the fuel injector (2a) using
1870739000 extractor (2b) and 1870897300
adapter (2c).
