KRYOTEC ENGINE
166

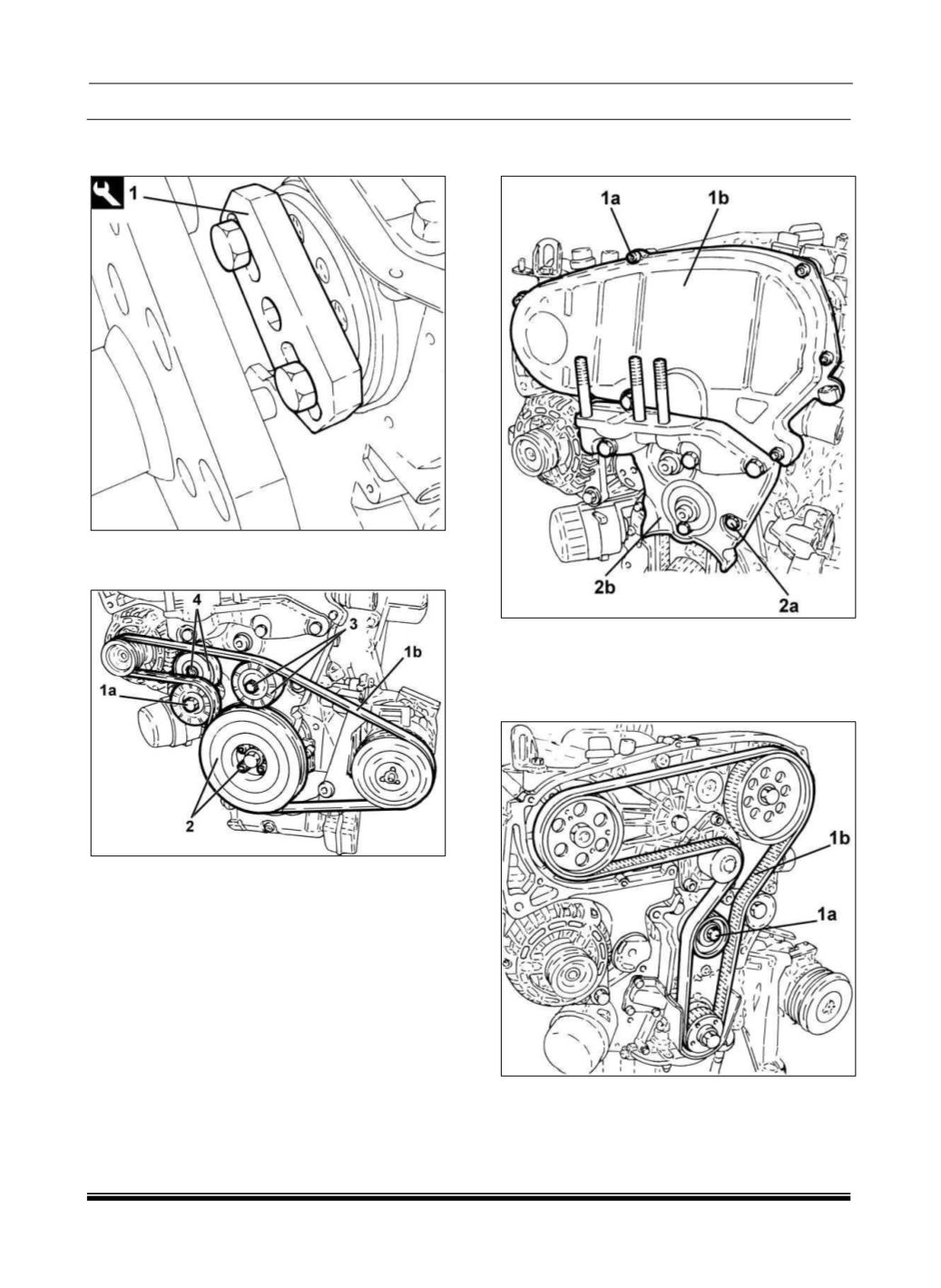

39. Install the 1860815000 crankshaft rotation tool
(1).
40. Rotate the tensioner (1a) to relieve drive belt
tension and remove the accessory drive belt (1b).
41. Remove the bolts (2) and the crankshaft pulley.
42. Remove the bolt (3) and the idler pulley.
43. Remove the bolt (4) and the tensioner.
44. Remove the screws (1a) and the timing belt
cover (1b).
45. Remove the bolts (2a) and the right engine
mount bracket (2b).
46. Loosen the tensioner bolt (1a) and remove the
timing belt (1b).
47. Disconnect the vacuum hose (1) from the
vacuum pump.
48. Remove the bolts (2) and the intake manifold
support bracket.
