KRYOTEC ENGINE
161
E.
CYLINDER HEAD AND OIL PAN FOR
INSPECTION
REMOVAL

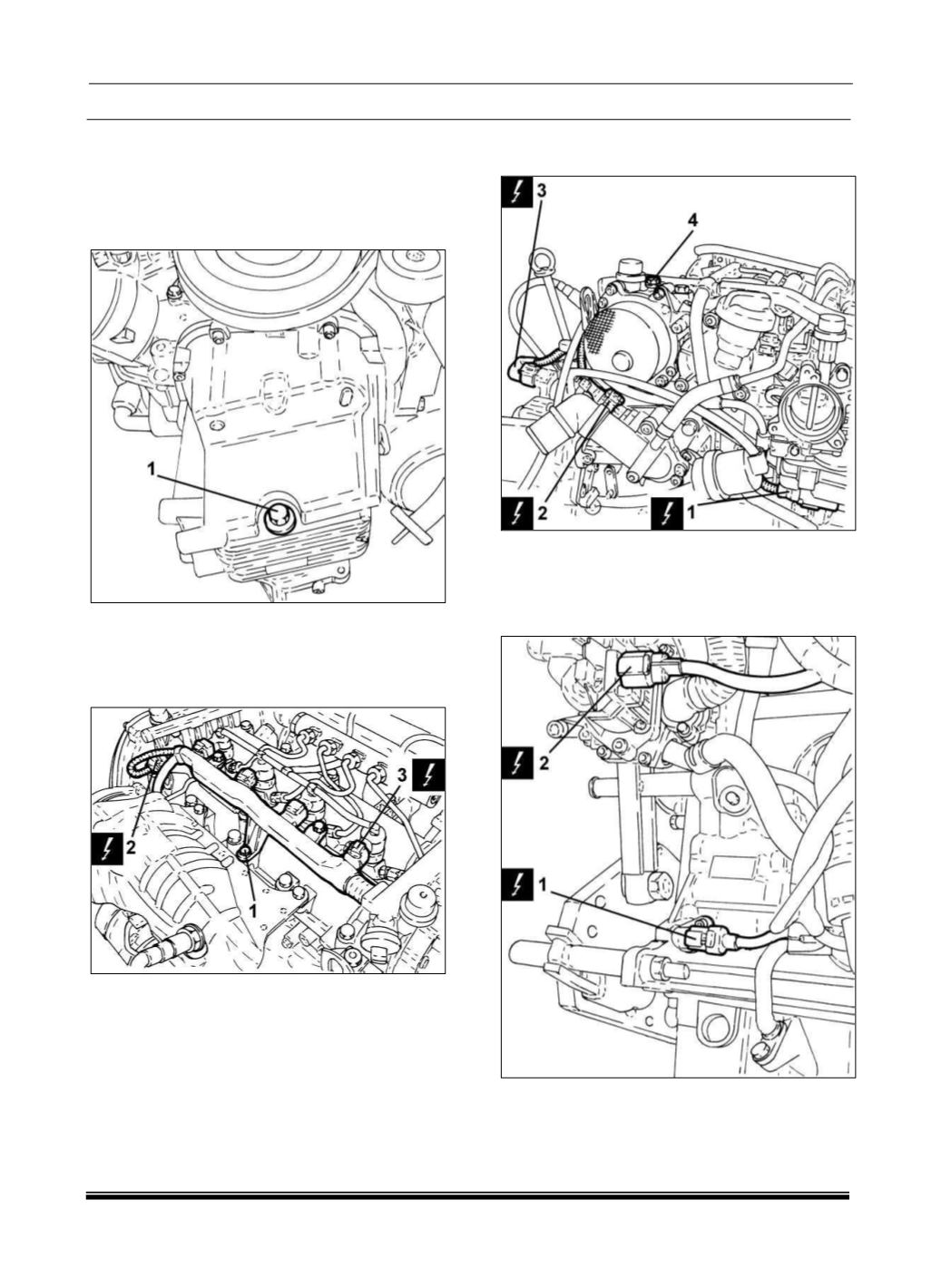

1. Remove the oil pan drain plug (1) and drain the
engine oil.
2. Disconnect the A/C compressor wire harness
connector.
3. Remove the bolt (1) from the engine wire
harness tray.
4. Disconnect the camshaft position sensor wire
harness connector (2).
5. Disconnect the fuel injector wire harness
connectors (3).
6. Disconnect the throttle body wire harness
connector (1).
7. Disconnect the coolant temperature sensor wire
harness connector (2).
8. Disconnect the EGR heat exchanger coolant
solenoid wire harness connector (3).
9. Remove the bolt (4) from the engine wire
harness tray.
10. Disconnect the crankshaft position sensor wire
harness connector (1).
11. Disconnect the EGR solenoid wire harness
connector (2).
12. Disconnect the engine oil pressure sensor wire
harness connector (1).
