KRYOTEC ENGINE
167

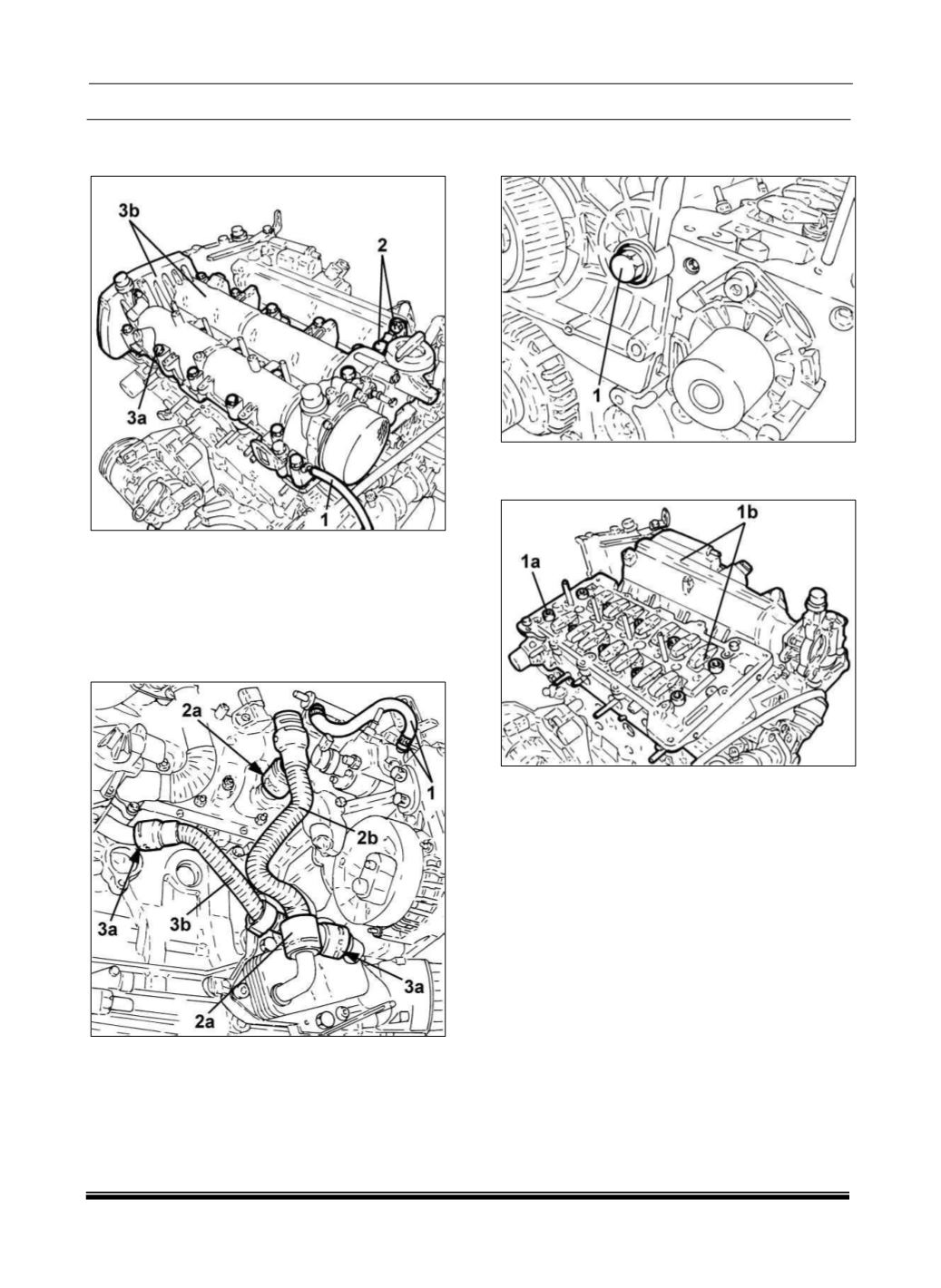

49. Remove the bolts (3a) and the cylinder head
cover (3b).
50. Remove the cylinder head cover gasket.
51. Loosen the clamp (1) and disconnect the fuel
return hose from the fuel injection pump.
52. Disconnect the quick couplings (2a) and
remove the engine oil cooler coolant outlet hose
(2b).
53. Disconnect the quick couplings (3a) and
remove the engine oil cooler coolant inlet hose
(3b).
54. Remove the fuel injection pump mounting bolt
(1).
55. Remove the bolts (1a) and the cylinder head
(1b) and intake manifold.
56. Remove the cylinder head gasket.
57. Rotate the engine 180°.
