KRYOTEC ENGINE
170

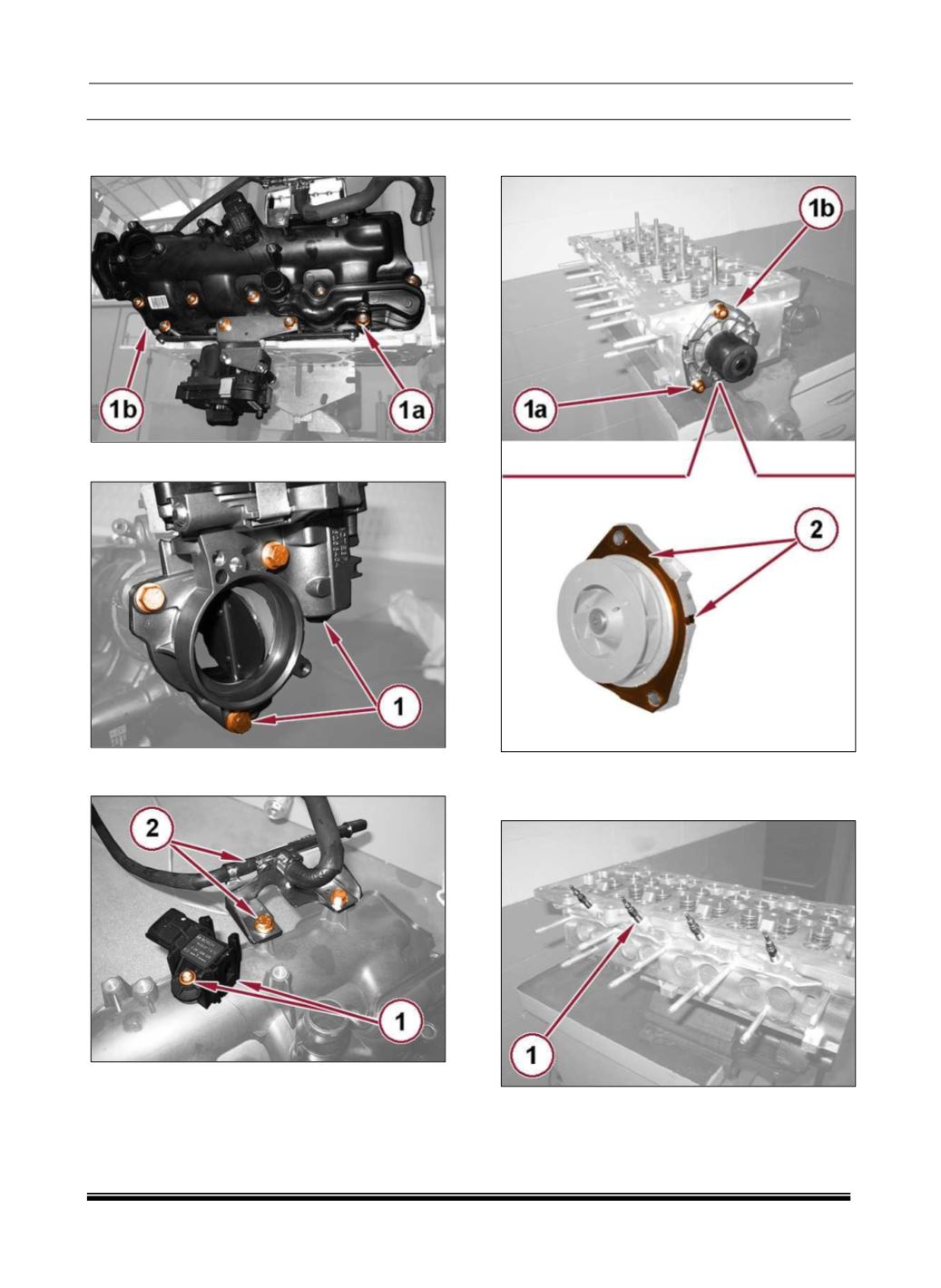

8. Remove the nuts (1a) and the intake chamber
(1b) complete with gaskets.
9. Remove the bolts (1) and the throttle body.
10. Remove the screw (1) and the air temperature/
pressure sensor.
11. Remove the bolts (2) and the fuel return
manifold.
12. Remove the bolts (1a) and the water pump
(1b).
13. Open the retaining tabs and remove the gasket.
14. Remove the glow plugs (1).
15. Remove the support tool complete with lower
cylinder head from the vice, separate them and
position the head on a suitable mounting.
