KRYOTEC ENGINE
158
103. Tighten the side bolts fixing the engine oil
sump to the proper (Torque Specifications) using
the
1860834000 tool.
104. Tighten the front and rear bolts fixing the
engine oil sump to the proper (Torque
Specifications) using 1860833000 tool.
NOTE

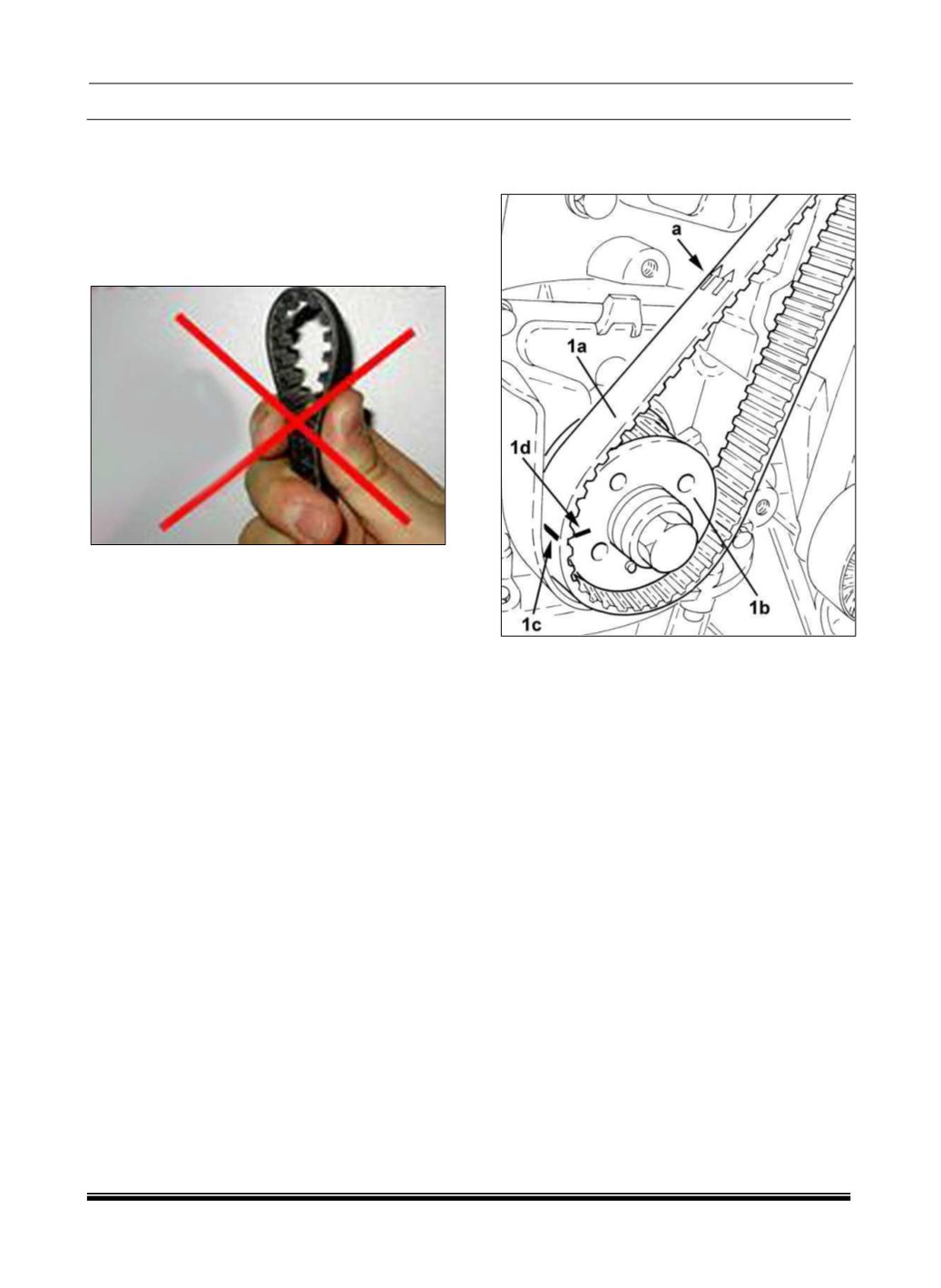

When handling the timing belt, avoid creating
bends at an acute angle so as not to compromise
the structure of the belt, as the stresses induced by
excessive bending could result in damage not
visible to the fibers inside, which could cause
premature failure of the belt during operation of the
engine.
105. Remove the 2000003000 engine timing tool
(2).
NOTE
The yellow reference mark (1c) on the timing belt
is the one that is in close proximity to the two yellow
arrows (a).
106. Position the timing belt (1a) on the crankshaft
sprocket (1b), taking care to match the yellow
reference mark (1c) with the notch (1d).
107.
The hole "a" is the reference for
the final tensioning of the timing belt as described
below.
